Hand Planer Blades: Blade Angles Explained, How to Set Depth and Lateral Adjustment

The term "hand planer blade" means different things depending on which tool you are using. An electric hand planer and a manual hand plane use different blade geometry, adjustment methods, and maintenance. This guide covers both tools, clarifies the angle terminology that causes most confusion, explains depth and lateral adjustment for electric hand planers, and addresses when a carbide blade upgrade makes sense.



First, Which Type of Hand Planer Are You Using?

Before getting into blade angles and settings, clarifying which tool is being discussed eliminates most of the confusion that plagues online searches for this topic. The table below maps the two main types against the blade characteristics that matter for setup and maintenance.

Someone troubleshooting why their electric hand planer is leaving marks is facing a completely different problem than someone asking about the correct cutting angle for difficult grain on a bench plane. The sections below address each tool separately.

Electric Hand Planer Blades: What You Need to Know

The electric hand planer uses a motor-driven rotating cutterhead with two double-edged blades set at a fixed angle determined by the machine design. What the operator controls is depth of cut and blade condition, not cutting angle.

Fixed Cutting Angle and What It Means

Most electric hand planers set the blade at a cutting angle between 30 and 40 degrees relative to the sole, optimized for trimming door edges, chamfering posts, and removing material quickly on softwoods and mild hardwoods. The fixed angle means the tool performs best within those applications and is not designed for the fine, angle-variable work that manual hand planes handle.

HSS vs Carbide Blades: Which to Use and When

Most electric hand planers ship with double-edged HSS blades. Each blade has two usable edges: when one dulls, flip to the fresh side. HSS blades cost $10 to $25 per set but dull faster on hardwoods and abrasive species. Carbide blades hold an edge three to five times longer and maintain better surface quality throughout their life. The tradeoff is brittleness: a nail or embedded grit that an HSS blade survives with a nick can chip a carbide edge significantly.

The practical decision: use HSS for general carpentry and softwood work where unexpected hard objects are common; upgrade to carbide for regular hardwood work on clean material. Replace the blade set when both edges produce rough surfaces, burn marks on hardwoods, or cause the motor to labor. At that point, the time spent troubleshooting a dull blade costs more than the replacement set.

See more: How to Use a Hand Planer: Setup, Feed Technique and 6 Common Applications

How to Set the Blade on an Electric Hand Planer

Setting up an electric hand planer correctly before a session takes under two minutes. There are two independent adjustments: depth of cut and lateral blade alignment.

Setting Depth of Cut

The front sole is adjustable relative to the rear sole and cutterhead. Rotating the depth knob raises or lowers the front sole, changing depth of cut. For general trimming on softwoods or mild hardwoods, 1 to 1.5mm per pass is productive without straining the motor. For dense hardwoods, reduce to 0.5mm or less. For final passes where surface quality matters, use the minimum marked depth (often 0.2 to 0.3mm). Always set depth before powering on - adjusting on a running planer is imprecise and can cause the tool to grab.

Lateral Adjustment for Even Cutting

The lateral adjustment controls whether both blade edges cut evenly across the full sole width. If the blade sits at a slight lateral angle, one side of the sole cuts deeper than the other, producing a tapered surface even when depth is correctly set. This is the most common cause of uneven planing results that depth adjustment alone does not fix.

To check, make a light test pass on flat scrap at zero or minimum depth. A shaving uniform in thickness across its full width means the blade is aligned. If the shaving is thicker on one side or leaves a ridge, adjust the lateral screw in small increments and re-test. Re-check after every blade change, as new blades rarely sit at exactly the same position as the ones they replace.

See more: Helical vs Spiral Cutterheads: Why Choose Spiral for Cleaner Cuts

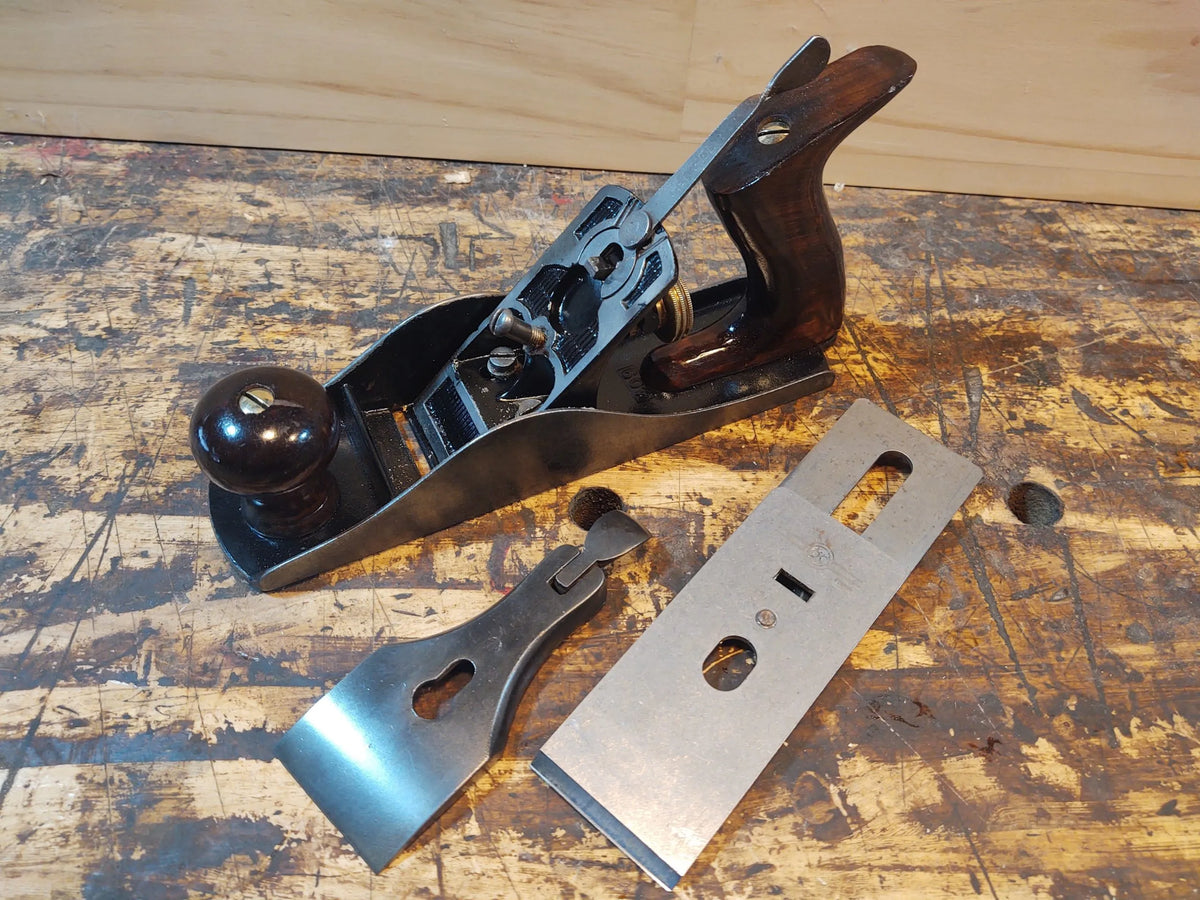

Manual Hand Plane Blade Angles Explained

The key concept for manual hand planes is the effective cutting angle: the actual angle at which the blade enters the wood fiber. This determines surface quality and how the plane handles difficult grain.

Bevel-Down Planes: The Standard 45° Setup

In a bevel-down plane, the most common type, the blade is bedded at 45 degrees (common pitch). This is the geometry of the No. 4 smoothing plane, No. 5 jack plane, and most bench planes. It handles straight-grained lumber in most species without difficulty. To increase the effective cutting angle without changing the bed angle, apply a back bevel on the flat back of the blade. A 5 to 10 degree back bevel raises the effective angle to 50 to 55 degrees (York pitch), noticeably more effective on difficult grain.

Bevel-Up Planes and Angle Flexibility

In a bevel-up plane - block plane, low-angle jack plane - the effective cutting angle equals the bed angle plus the blade bevel angle. A low-angle block plane at 12 degrees bed angle with a 25-degree bevel gives 37 degrees, excellent for end grain. Increasing the blade bevel to 38 degrees gives 50 degrees for difficult grain; to 50 degrees gives 62 degrees for highly interlocked grain. This direct relationship makes bevel-up planes adaptable for specific wood types.

Choosing the Right Cutting Angle by Task

The table below maps common hand planing tasks to the effective cutting angle that produces the best results.

Use the standard 45-degree setup for most work; increase the angle only when tearout on difficult grain cannot be resolved by adjusting feed direction.

See more: Spiral Cutterhead vs Straight Knives: An Honest Comparison for Woodworkers

How to Sharpen a Hand Planer Blade

HSS electric hand planer blades are sharpened at 30 to 35 degrees, matching the factory bevel, using a flat waterstone or diamond plate with a honing guide. Carbide electric hand planer blades cannot be sharpened in a home shop - they require professional diamond grinding, making replacement more practical in most cases.

Manual hand plane irons use a primary bevel of 25 degrees (coarse stone) followed by a secondary micro-bevel of 30 degrees (fine stone). Maintain only the secondary bevel during routine sharpening; return to the coarse stone only when the secondary bevel becomes too wide from repeated honing. Consistency of angle matters more than the sharpening medium.

See more: How to Maintain and Extend the Life of Your Spiral Cutterhead

When to Upgrade to Carbide

For electric hand planers, carbide blades justify their premium cost for regular hardwood work or heavy use. For occasional softwood carpentry, HSS blades are adequate. For benchtop thickness planers, the better carbide upgrade is a spiral insert cutterhead rather than carbide straight knives. A spiral cutterhead replaces the entire knife system with carbide inserts in a helical pattern. Each insert has four usable edges; rotating a dull insert 90 degrees exposes a fresh edge in seconds. Surface quality on hardwoods and figured grain improves dramatically, and the knife-sharpening maintenance cycle is eliminated entirely. Sheartak spiral cutterheads are direct-fit replacements for DeWalt, Delta, Powermatic, Grizzly, Jet, Makita, and most other major benchtop planer brands.

Explore direct-fit spiral cutterheads for your planer: Sheartak Spiral Cutterheads

Frequently Asked Questions

What angle should I sharpen my electric hand planer blade?

Sharpen HSS electric hand planer blades at 30 to 35 degrees, matching the factory bevel. Carbide blades cannot be sharpened in a home shop and should be replaced or sent for professional diamond grinding.

Why does my electric hand planer cut deeper on one side than the other?

This is a lateral alignment problem, not a depth setting issue. Adjust the lateral alignment screw adjacent to the blade housing in small increments and test on scrap after each adjustment until the shaving is uniform across its full width.

What is the best blade angle for a hand plane on difficult grain?

Use an effective cutting angle of 50 to 55 degrees (York pitch). On bevel-up planes, increase the blade bevel angle. On bevel-down planes, add a 5 to 10 degree back bevel to the flat back of the iron.

How often should I replace electric hand planer blades?

Replace HSS blades when both edges produce rough surfaces, burn marks on hardwoods, or cause the motor to labor. This typically occurs after 20 to 40 hours of moderate hardwood use.

Can I use the same blade in any electric hand planer?

No. Electric hand planer blades are machine-specific. Blade width, thickness, and mounting hole positions vary by brand and model. Always confirm compatibility before purchasing replacement blades.

Is a carbide blade worth it for an electric hand planer?

Carbide blades are worth the premium for regular hardwood work. They last three to five times longer than HSS and maintain better surface quality throughout their life. For occasional softwood work, HSS blades are more cost-effective.

Conclusion

Hand planer blade setup covers two distinct tools with different geometries, adjustment methods, and maintenance. For electric hand planers, controlling depth and lateral alignment produces the most consistent results; carbide blades extend edge life on hardwoods. For manual hand planes, effective cutting angle determines how the plane handles different grain types. Sharp edges produce better results than any technique adjustment on a dull blade.
