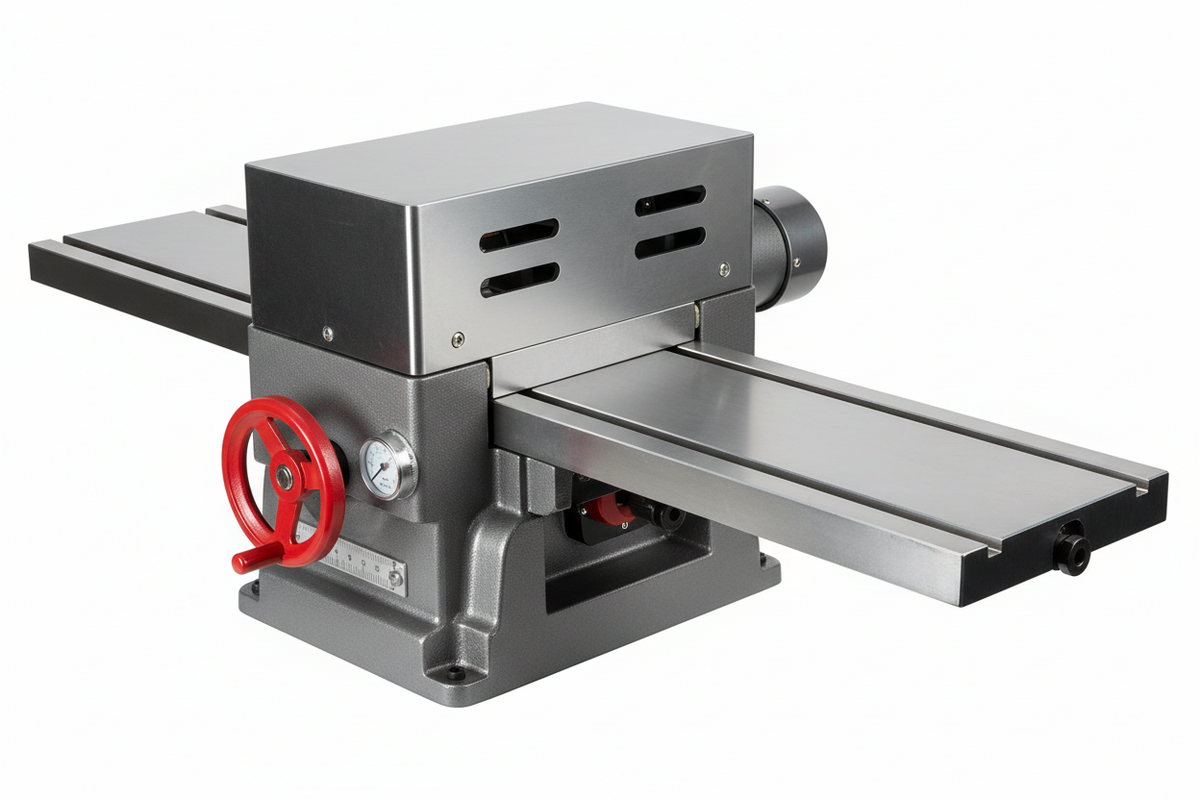

How to Use a Thickness Planer: Setup, Feed Technique, Snipe Prevention, and Troubleshooting

A thickness planer delivers consistent, precise results when it is set up correctly and fed properly. Used incorrectly, the same machine produces tearout, snipe, and boards with uneven thickness. This guide covers every stage of the process: what to check before you start, how to read grain direction, how to set depth of cut, how to prevent snipe, and how to diagnose problems when results fall short.

Before You Start: Setup Checklist

Good results begin before the machine is switched on. Running a board through a poorly set-up planer wastes material and can damage the cutterhead. Taking a few minutes to confirm these six items before each session prevents the most common problems.

First, check the blade condition. Run a finger lightly along the outfeed side of the table after a test cut on scrap. A ridge running along the board indicates a nick in a blade; address this before processing good lumber.

Second, apply a thin coat of paste wax to the table surface. A waxed table allows boards to feed smoothly without friction stalling the board at the rollers.

Third, confirm outfeed support is in place. Boards longer than the table need roller stands or a helper to support both the infeed and outfeed ends, or the unsupported ends will sag and cause snipe.

Fourth, put on PPE before powering up: hearing protection, safety glasses, and a dust mask or respirator.

Fifth, inspect every board for embedded metal before feeding it. Nails, staples, or screws destroy blade edges instantly and create dangerous projectiles.

Sixth, set the depth of cut conservatively before the first pass, especially on species or widths you have not run through the machine before.

How a Thickness Planer Works

Understanding what happens inside the machine during a cut helps explain why each step in the process matters and what goes wrong when technique is off.

The Role of the Feed Rollers

A thickness planer has two serrated rubber or steel rollers: an infeed roller and an outfeed roller. When the board contacts the infeed roller, the roller grips the board and pulls it through the machine at a fixed feed rate. The outfeed roller maintains grip after the board clears the cutterhead and pushes it out the back. Because the rollers drive the board rather than the operator, the cut depth is consistent along the full length, provided the board stays flat on the table. The rollers also press the board down against the table during the cut, which is why a warped board cannot be flattened by running it through the planer: the rollers press the warp flat temporarily, but the board returns to its original shape once it exits.

How Depth of Cut Is Controlled

The distance between the table surface and the bottom of the cutterhead arc determines how much material is removed per pass. This distance is set by raising or lowering the cutterhead housing using the handwheel or crank on the machine. The depth indicator on most benchtop planers gives an approximate reading, but measuring the board before and after a test pass with calipers is more reliable than trusting the indicator alone, particularly after blade changes.

Why the Reference Face Matters

The planer uses the face resting on the table as its reference. Whatever is on the table surface, the cutterhead cuts the opposite face parallel to it. If the face on the table is flat, the top face will be cut flat and parallel to it, producing a board with consistent thickness. If the face on the table is cupped, bowed, or twisted, the cutterhead machines the top face to match that shape. A flat reference face, established on a jointer before the board goes into the planer, is not optional: it is what makes accurate thicknessing possible.

Step-by-Step: How to Use a Planer

The six steps below apply to a benchtop thickness planer processing rough or S2S lumber to a target thickness. Each step builds on the previous one, and skipping any of them typically shows up as a quality problem in the finished board.

Step 1: Establish a Flat Reference Face First

Before the planer can do its job accurately, one face of the board must be flat. Run the board face-down over a jointer, taking passes until pencil marks drawn across the face disappear completely, indicating full contact across the surface. This flat face becomes the reference that rides on the planer table for the first pass. Without it, the planer thicknesses relative to a curved surface rather than a flat one.

Step 2: Inspect the Board and Remove Any Metal

With the reference face established, examine the board thoroughly for embedded fasteners. Drag a rare earth magnet across both faces and both edges. On reclaimed wood or salvaged lumber, check the end grain carefully for old nails cut flush with a saw. A single nail contact with the cutterhead requires blade replacement or insert rotation and can send fragments into the machine housing.

Step 3: Set the Depth of Cut

Measure the thickest point of the board with calipers. Set the planer to cut slightly less than the board's full thickness on the first pass, allowing the board to enter the machine rather than jamming against a too-low cutterhead. Then adjust depth of cut based on species and board width. The table below gives recommended starting points for depth per pass.

These settings assume a sharp cutterhead in good condition. Dull blades require shallower cuts to avoid tearout and motor strain. For the final pass to target thickness on any species, reducing depth to 1/32 inch or less produces a noticeably smoother surface regardless of species.

Step 4: Determine Grain Direction Before Feeding

Feeding a board against the grain is the single most common cause of tearout in planer work. The cutterhead must cut downhill on the grain slope, not into rising fibers. On most boards, reading the grain direction from the edge is the most reliable method: look for the slope of the fibers and feed the end where the fibers slope downward into the machine first.

On plain-sawn stock where the edge grain is hard to read, check the face for what woodworkers call arrows: the V-shapes formed where the annual rings intersect the face surface. On the bark side of the board, these arrows point toward the end that should enter the planer first. On the heart side, the arrows point away from the infeed end. If in doubt, run the board through and check the surface: a glossy, smooth result means grain direction is correct; a rough, torn surface means flip the board end-for-end and run it again.

Step 5: Feed the Board Smoothly and Support Both Ends

With the machine running at full speed, place the board flat face down on the infeed table and align it with the feed rollers. Keep both hands on the sides of the board, not behind it. Guide the board forward until the infeed roller grips it and begins pulling. Once the roller takes the board, release it and move to the outfeed side to receive the board and support its weight as it exits. Never push from behind once the roller has engaged: pushing can overload the cutterhead and cause the board to stall.

Support long boards at both ends throughout the cut. Unsupported ends droop below the table plane, which causes the cutterhead to take a deeper cut at the board's entry and exit points. This is the mechanical cause of snipe.

Step 6: Take Multiple Passes to Final Thickness

Reach final thickness through multiple light passes rather than one aggressive cut. After each pass, flip the board so the freshly planed face is now on the table, and plane the opposite face. Alternating faces as the board approaches final thickness keeps the board balanced and reduces the chance of moisture-related warping that can occur when material is removed from only one side. On the final pass, use the lightest depth setting to produce the cleanest surface.

How to Prevent and Minimize Snipe

Snipe is the shallow gouge that appears at the leading or trailing end of a board after planing. It is one of the most common frustrations in planer work and one of the most reliably preventable with the right technique.

What Causes Snipe

Snipe occurs because the board is only supported by one roller at the very beginning and end of the cut. As the leading end of the board enters the cutterhead zone before the outfeed roller has gripped it, or as the trailing end exits the infeed roller zone, the unsupported end tips slightly upward toward the cutterhead. The cutterhead takes a slightly deeper cut on that end. The result is a shallow depression at one or both ends of the board that is typically 6 to 12 inches long.

Four Techniques to Reduce Snipe

The first technique is supporting both ends throughout the cut. Roller stands on the infeed and outfeed sides keep the board level with the table surface from start to finish, preventing the tipping that causes snipe.

The second technique is running boards end-to-end. Feeding two or more boards in sequence with no gap between them eliminates the unsupported-end problem entirely: the leading board supports the trailing board's entry, and the trailing board supports the first board's exit. The snipe, if any, occurs only at the very first and last board in the series.

The third technique is adding length to the board. Mill boards 3 to 4 inches longer than the finished dimension needed. Any snipe that does occur at the ends is cut off when the board is crosscut to final length.

The fourth technique is lifting the trailing end very slightly as it exits the machine. This counteracts the tipping tendency at the exit end without requiring additional equipment, though it takes practice to apply consistently.

See more: How to Reduce Planer Snipe with a Spiral Cutterhead

Troubleshooting Common Planer Problems

Most planer problems have a specific mechanical or technique cause. The table below maps the six most common symptoms to their most likely causes and corrective actions.

These causes and fixes cover the majority of problems on a well-maintained benchtop planer. Persistent issues that do not respond to these corrections typically indicate blade damage, worn rollers, or a cutterhead alignment problem that requires checking against the machine manual.

See more: What Does a Planer Do? A Complete Guide to Wood Planers

When Your Cutterhead Is Holding You Back

Technique improvements can only go so far when the cutterhead itself is the limiting factor. If tearout on difficult grain persists despite correct feed direction and conservative depth settings, the issue is the cutting geometry of straight knives rather than operator technique.

Signs Your Cutterhead Needs Upgrading

Straight knife machines cut across the full board width in a single continuous arc. On straight-grained wood this works well. On figured, curly, or reversing grain, the knives catch rising fibers and tear them rather than slicing. The result is a surface that requires heavy sanding to reach finish quality, eliminating much of the time savings a planer provides.

Other signs that a straight knife cutterhead has reached its practical limits include persistent ridges even after blade replacement, noticeably rough surfaces on species that should plane smoothly, and excessive noise during operation.

How a Spiral Cutterhead Changes Results

A spiral cutterhead replaces the long straight knives with rows of small square carbide inserts arranged in a helical pattern. Each insert makes contact with the wood at a slight skew angle, producing a shearing cut that lifts and slices fibers rather than striking across them. The staggered engagement of multiple small inserts, rather than one long knife, dramatically reduces tearout on difficult grain and lowers machine noise at the same time.

When a carbide insert dulls, it rotates 90 degrees to expose a fresh cutting edge. Each insert provides four usable edges before replacement. Replacing individual worn inserts takes less than a minute per insert and requires no height-setting procedure, unlike straight knife replacement. For woodworkers who regularly process figured hardwoods, reclaimed lumber, or simply want to spend less time sanding and more time building, a spiral cutterhead upgrade is the highest-return improvement available on a benchtop planer.

Sheartak spiral cutterheads are direct-fit replacements for most major benchtop planer brands including DeWalt, Delta, Powermatic, Grizzly, Jet, and a range of European machines.

Explore direct-fit spiral cutterheads for your planer: Sheartak Spiral Cutterheads

See more: Jointer vs Planer: Key Differences, Which Comes First, and How to Choose

Conclusion

A thickness planer produces its best results when setup, grain reading, depth of cut, and board support work together correctly. Most problems trace back to one of these four areas. Start with a flat reference face, feed with the grain, take light passes, and support both ends of every board. When technique is dialed in and tearout still persists on difficult grain, a spiral cutterhead upgrade solves what technique alone cannot.
