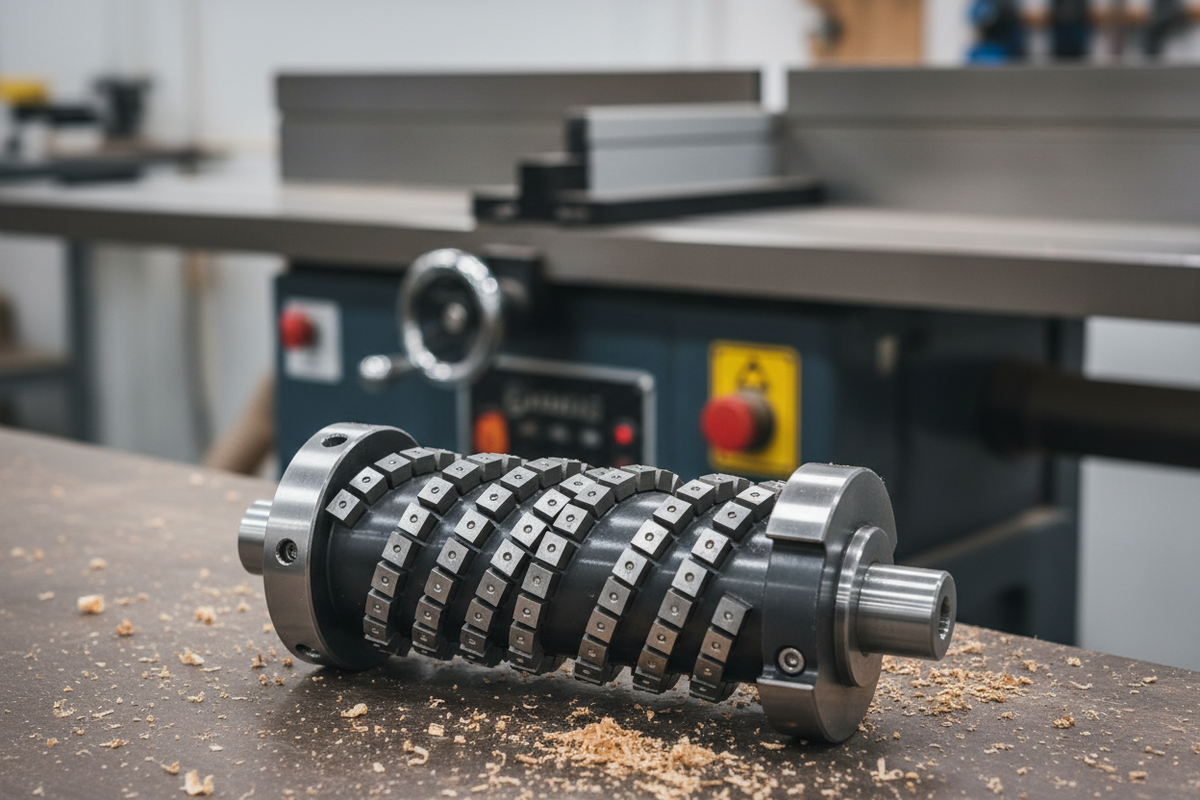

8-Inch Jointer Spiral Cutterhead Upgrade: What Changes, Compatible Models, and the Rabbeting Question Answered

An 8-inch jointer is a significant step up from a 6-inch machine, but many still ship with straight knife cutterheads that require periodic resharpening, careful height setting, and produce tearout on difficult grain. This guide covers what changes when you upgrade to a spiral cutterhead, which 8-inch models are compatible, the honest answer on rabbeting, and when buying a new helical jointer makes more sense than upgrading an existing machine.

Why Woodworkers Upgrade Their 8-Inch Jointer Cutterhead

The straight knife cutterhead on most 8-inch jointers is a proven design that works reliably on straight-grained softwoods and mild hardwoods. Its limitations become apparent when the woodworker pushes into figured maple, walnut with interlocked grain, quartersawn oak, or any species with reversing fiber direction. At that point, three specific pain points drive most upgrade decisions.

The Knife-Setting Problem

Straight knife jointers require periodic knife removal, resharpening, reinstallation, and precise height setting to ensure all knives cut on the same plane. On an 8-inch jointer with three or four knives spanning the full 8-inch width, this process takes 30 to 45 minutes when done carefully. Height variation between knives causes vibration, uneven surface quality, and premature bearing wear. Even a single nick in one knife - from an embedded staple, grit in reclaimed lumber, or a foreign object in rough stock - requires either living with a ridge on every subsequent board or going through the full knife-change procedure.

For woodworkers who use their jointers regularly, this maintenance cycle repeats several times a year. The spiral cutterhead upgrade eliminates this cycle entirely.

Tearout on Figured Hardwoods

The straight knife system strikes the full 8-inch width simultaneously on every revolution. On boards with reversing or interlocked grain, this full-width impact lifts fibers oriented against the cutting direction no matter which end of the board is fed first. Some tearout can be reduced by changing feed direction or reducing depth of cut, but on highly figured stock, some tearout is unavoidable with straight knives regardless of technique.

An 8-inch jointer is typically used by woodworkers who process more demanding material than a 6-inch machine user, often including wider figured boards and hardwoods that a smaller machine would struggle with. The mismatch between machine capacity and cutterhead performance on difficult grain is the core motivation for most 8-inch spiral cutterhead upgrades.

Noise at the 8-Inch Scale

An 8-inch straight knife jointer is substantially louder than a 6-inch machine due to the wider knife contact area. The chopping impact of three or four full-width knives at operating RPM produces a high-frequency sound that penetrates standard hearing protection and creates significant fatigue during extended sessions. Spiral cutterheads reduce this noise by staggering insert engagement so only a fraction of the total cutting edges are in contact at any moment. The reduction is typically 40 to 50 percent in perceived loudness, which makes the machine noticeably more tolerable for long sessions.

What Changes After a Spiral Cutterhead Upgrade

The performance change from a spiral cutterhead upgrade on an 8-inch jointer is not incremental. It changes the fundamental cutting geometry and with it, the machine's behavior on every board that passes through.

Surface Quality on Difficult Grain

Each spiral cutterhead insert engages a small section of the board width at a slight skew angle, shearing fibers rather than impacting them across the full width simultaneously. On figured maple, cherry with wavy grain, or any board where fiber direction reverses across the face, this staggered shearing action produces a markedly cleaner surface than straight knives can achieve on the same stock. Woodworkers who upgrade consistently report that boards requiring significant hand planing or sanding after straight knife jointing come off the spiral machine ready for direct finishing with minimal additional work.

Maintenance: Insert Rotation vs Knife Setting

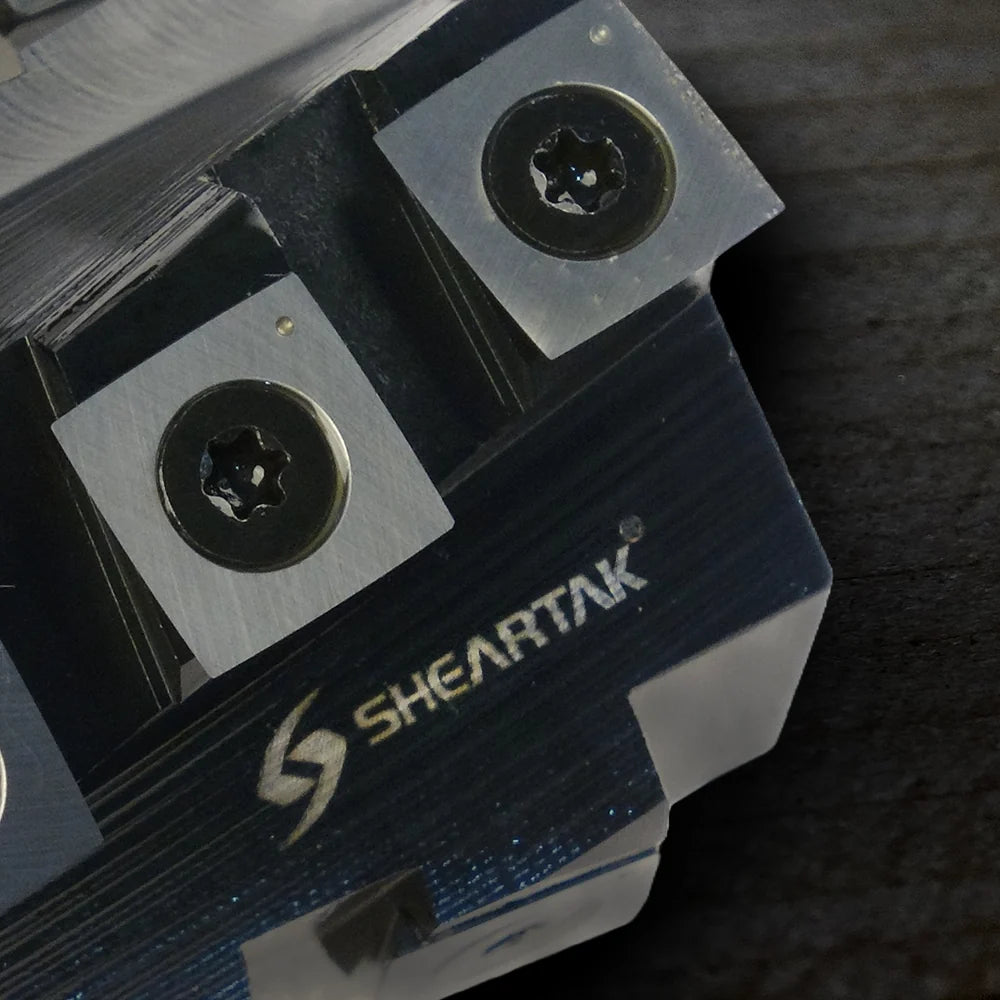

When a spiral cutterhead insert dulls or develops a chip, the response is to loosen one torx screw, rotate the insert 90 degrees to expose a fresh cutting edge, and retighten. The entire procedure takes under two minutes per insert. Each insert provides four usable cutting edges. When all four edges are spent, only that individual insert is replaced rather than the full knife set. The cumulative maintenance time over a year of regular use drops from several hours with straight knives to minutes with spiral inserts.

Noise and Vibration

The noise reduction from a spiral cutterhead on an 8-inch jointer is among the most immediately noticeable benefits. The sustained chopping impact of straight knives is replaced by a continuous lower-frequency hum. The reduction makes the machine considerably more comfortable to operate for extended sessions and meaningfully reduces the acoustic impact in home shops or smaller spaces. Hearing protection is still required, but the machine is noticeably less fatiguing.

Dust Collection

Spiral cutterheads produce shorter, finer chips than straight knife systems. The long ribbons produced by straight knives can wrap around dust collection components or pack into bag filters quickly during heavy sessions. The finer chip output from spiral inserts moves through ducting more freely and requires less frequent bag servicing during a milling session.

See more: Spiral Cutterhead vs Straight Knives: An Honest Comparison for Woodworkers

The Rabbeting Question: What You Lose and the Workarounds

The rabbeting ledge on most 8-inch jointers is one of the most used features for furniture and cabinet work. It allows the jointer to cut rabbets along the length of a board edge, useful for drawer bottoms, cabinet backs, frame-and-panel grooves, and similar joinery. This is the most significant functional tradeoff of the spiral cutterhead upgrade, and it deserves an honest answer.

Why Spiral Heads Cannot Rabbet

A spiral cutterhead is wider than the jointer's table opening at the rabbeting ledge, and the helical arrangement of inserts means that a portion of the cutterhead always extends beyond the board edge during a rabbeting cut. This prevents the cutterhead from making a clean, square-cornered rabbet against the ledge. The physics of the design do not accommodate rabbeting - it is not a quality issue with any particular brand's spiral head, but an inherent characteristic of the helical geometry.

Router Table as Rabbeting Alternative

The most practical replacement for jointer rabbeting after a spiral cutterhead upgrade is a router table with a rabbeting bit or a straight bit and fence. A router table produces rabbets equal in accuracy to a jointer rabbet for most furniture applications, with better control over rabbet depth and width. For woodworkers who already have a router table in their shop, the tradeoff is essentially no loss of capability. The operation moves from the jointer to the router table.

For woodworkers without a router table, a table saw with a dado stack produces rabbets that are slightly less refined but perfectly serviceable for most cabinet and furniture joinery.

Who This Matters To

For woodworkers who rabbet occasionally and have a router table or table saw with dado capability, the spiral cutterhead tradeoff is essentially neutral. For woodworkers who rely heavily on jointer rabbeting as a primary operation, the tradeoff deserves serious consideration before upgrading. If jointer rabbeting is an infrequent operation, the spiral cutterhead upgrade is almost certainly worth it. If it is a daily high-volume operation, retaining the straight knife cutterhead is the more practical choice.

Compatible 8-Inch Jointer Models

Spiral cutterhead compatibility depends on the specific dimensions of the original cutterhead: shaft diameter, body diameter, overall length, and bearing specification. Not all 8-inch jointers use the same cutterhead dimensions even within the same brand. The table below covers the most commonly owned 8-inch jointers in the US market and their compatibility with Sheartak spiral cutterheads.

Compatibility confirmation before ordering is strongly recommended for any model not listed as confirmed. Sheartak provides model-specific compatibility verification through their customer service channel. Providing the model number and year of manufacture allows for precise confirmation before purchase.

Explore Sheartak spiral cutterheads for 8-inch jointers: Sheartak Spiral Cutterheads

Upgrade vs Buy a New 8-Inch Helical Jointer

Factory 8-inch jointers with helical cutterheads installed from the manufacturer are available from Grizzly, Jet, Powermatic, and others. The price difference between a straight knife 8-inch jointer and the same manufacturer's helical version typically runs from $400 to $800. The aftermarket spiral cutterhead upgrade costs $300 to $500. This pricing proximity creates a genuine decision point that deserves a structured answer.

For woodworkers with a mechanically sound 8-inch jointer who regularly work with hardwoods and figured grain, the upgrade delivers better cost efficiency than replacing the machine. The aftermarket spiral cutterhead costs less than the price premium between a straight knife and helical factory jointer, and the existing machine's mechanical condition is known.

See more: Sheartak vs Shelix: Honest Spiral Cutterhead Comparison (2025)

Installation Overview

The spiral cutterhead installation on an 8-inch jointer is a DIY-accessible procedure for woodworkers with basic mechanical confidence. The process requires disassembling the cutterhead guard, removing the drive belt or chain, pulling the original cutterhead, installing the new cutterhead with its bearings, and reinstalling all components in reverse order. A first-time installer should budget two to three hours. Subsequent installations take significantly less time.

Tools and Time Required

The installation requires standard hand tools, a torx driver for insert installation, and a bearing puller if the original bearings are to be removed rather than replaced. Sheartak ships the cutterhead with inserts removed, so the first task is installing all carbide inserts into their seats and torquing to the specified value before the cutterhead can be used. This insert installation step adds 30 to 45 minutes to the overall process on a first attempt.

Bearing Replacement Decision

The original bearings on most 8-inch jointers are pressed onto the cutterhead shaft. Removing the old cutterhead requires pulling these bearings, which risks damaging them. Sheartak recommends confirming bearing condition before reinstalling original bearings. If there is any play, noise, or contamination, replacing with new bearings at the time of cutterhead installation eliminates the risk of a bearing failure shortly after the upgrade. Sheartak offers matched replacement bearings for the jointer models they support.

Insert Installation and Torque

Each carbide insert is seated in a machined pocket and secured with a single torx screw. The inserts must be installed at the correct torque value, typically 6 Newton-meters, to seat properly without risking damage to the screw or insert pocket. Overtightening is the most common installation error. A torque screwdriver set to the specified value produces consistent results. Sheartak includes the torque specification in the installation documentation provided with each cutterhead.

See more: How to Maintain and Extend the Life of Your Spiral Cutterhead

Conclusion

An 8-inch jointer spiral cutterhead upgrade eliminates the knife-setting maintenance cycle, produces cleaner surfaces on difficult grain, and significantly reduces operating noise. The main tradeoff is loss of rabbeting capability, which a router table handles adequately for most applications. For mechanically sound machines used regularly on hardwoods, the upgrade delivers better cost efficiency than buying a new helical jointer. Confirm model compatibility before ordering to ensure a direct-fit installation.
