Benchtop Planer Helical Head: Ultimate Buying Guide for Woodworkers

Upgrading to a benchtop planer helical head can transform your woodworking operations from frustrating tear-outs to flawless finishes. This advanced cutting technology replaces traditional straight knife cutterheads with spiral-arranged carbide inserts that deliver smoother cuts, reduced noise levels, and significantly improved surface quality. Whether you're a professional cabinetmaker or passionate hobbyist, understanding how to select the perfect helical head benchtop planer ensures you make a worthwhile investment in your woodworking precision.

What is a Benchtop Planer Helical Head?

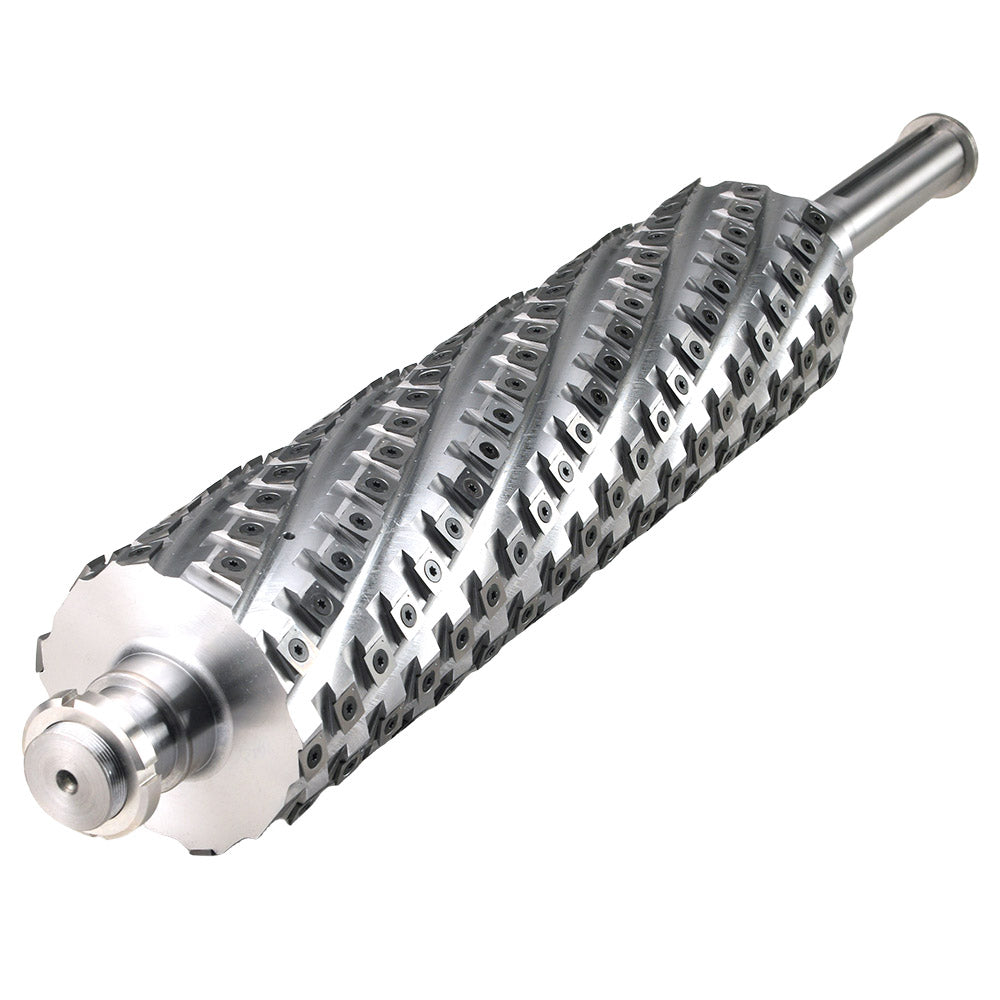

A benchtop planer helical head features dozens of small carbide inserts arranged in a spiral pattern around the cutterhead cylinder. Unlike conventional straight knives that engage wood fibers head-on across their entire length, helical cutterheads create a shearing action where individual inserts contact the workpiece at strategic angles. This fundamental design difference explains why helical head benchtop planers consistently outperform traditional models in finish quality and operational characteristics.

The carbide inserts typically measure 15mm square with four cutting edges, allowing users to rotate them when one edge dulls instead of replacing entire knife sets. This modular approach reduces maintenance costs and downtime while extending the effective lifespan of your cutting system significantly.

Key Advantages of Helical Head Technology

Understanding the benefits of benchtop planer helical head systems helps justify the higher initial investment compared to straight knife alternatives.

Superior Surface Quality: The shearing cut produced by helical arrangements reduces tear-out by approximately 90% compared to straight knives, particularly critical when working with figured woods like curly maple, bird's eye maple, or quilted mahogany. The angled engagement of carbide inserts slices wood fibers cleanly rather than chopping through them, resulting in glass-smooth surfaces that require minimal sanding.

Dramatically Reduced Noise: Traditional straight knife cutterheads generate loud chopping sounds as multiple long blades simultaneously impact the workpiece. In contrast, helical head benchtop planers operate at approximately 68 decibels—quieter than many shop vacuums—because only a few inserts engage the wood at any given moment. This 40-50% noise reduction creates a more pleasant workshop environment for extended work sessions.

Extended Tool Life: Carbide inserts last 5-10 times longer than high-speed steel (HSS) straight knives, particularly when working with abrasive hardwoods or exotic species. When edges dull, simply rotate the insert 90 degrees to expose a fresh cutting edge. With four usable edges per insert, a complete set can serve hundreds of board feet before requiring replacement.

Cost-Effective Maintenance: While purchasing a complete set of straight knives for a benchtop planer typically costs $50-100, individual carbide inserts cost $5-10 each. Since you only replace damaged inserts rather than entire knife sets, long-term maintenance expenses drop significantly. Most woodworkers report breakeven within 12-18 months of moderate use.

Reduced Motor Strain: The spiral arrangement distributes cutting forces more evenly across the motor's rotation, reducing peak loads and extending motor lifespan. This balanced cutting action also minimizes vibration transmitted through your planer's frame, contributing to improved precision and reduced fatigue during operation.

Critical Selection Factors for Benchtop Planer Helical Heads

Choosing the optimal benchtop planer helical head requires careful evaluation of several technical specifications and compatibility considerations.

Cutterhead Diameter Compatibility

The cutterhead diameter must precisely match your planer's specifications. Most benchtop planers accommodate 2-3 inch diameter cutterheads, but exact measurements are critical. Measure your existing cutterhead's diameter or consult your planer's user manual before purchasing a replacement helical head benchtop planer upgrade. Diameter mismatches will cause improper bearing fit, incorrect cutting height, and potential safety hazards.

Insert Quantity and Configuration

The number of carbide inserts directly influences cut quality and performance characteristics. Entry-level benchtop planer helical heads feature 24-30 inserts arranged in two rows, providing adequate performance for general woodworking. Premium models incorporate 40-72 inserts in three or four rows, delivering exceptional finish quality on challenging grain patterns.

Higher insert counts translate to more cuts per inch (CPI) at any given feed rate. A cutterhead with 40 inserts rotating at 8,000 RPM with a feed rate of 26 feet per minute generates approximately 123 CPI—sufficient for finish-ready surfaces on most hardwoods without subsequent sanding.

Insert Type: Carbide vs. High-Speed Steel

Carbide inserts represent the gold standard for benchtop planer helical heads, offering superior hardness (HRC 85-92) compared to HSS alternatives (HRC 62-64). Carbide handles exotic woods, reclaimed lumber containing occasional metal fasteners, and abrasive materials without rapid dulling. While carbide inserts cost more upfront ($5-12 each versus $2-4 for HSS), their extended lifespan and superior performance justify the investment for serious woodworkers.

HSS inserts provide acceptable performance for softwoods and occasional hardwood projects at lower cost, making them suitable for hobbyists with budget constraints working primarily with pine, poplar, or cedar.

Planer Model Compatibility

Verify that replacement helical head benchtop planer assemblies specifically match your planer's make and model. Popular models with helical head upgrade options include:

• DeWalt DW735/DW735X (13-inch)

• DeWalt DW734 (12.5-inch)

• Makita 2012NB (12-inch)

• Grizzly G0940 (13-inch)

• JET JWP-13BT (13-inch)

• Rikon 25-135H (13-inch)

Manufacturers like Shear Tak offer precision-engineered spiral cutter heads designed for direct replacement across numerous planer models, ensuring proper fit and optimal performance without custom modifications.

Feed Rate Considerations

Two-speed gearboxes provide versatility for different applications. Lower feed rates (16-17 FPM) deliver maximum finish quality for figured woods or final passes, while higher speeds (26 FPM) increase productivity during rough dimensioning operations. Single-speed benchtop planer helical heads typically operate at 26 FPM, requiring careful depth-of-cut adjustments to balance material removal rates with surface finish quality.

Optimizing Performance Across Wood Species

A quality helical head benchtop planer excels across diverse wood types when properly configured.

Softwoods (pine, cedar, fir) plane efficiently with helical heads at higher feed rates and deeper cuts (1/16-1/8 inch per pass). The shearing action prevents compression and crushing common with dull straight knives.

Domestic Hardwoods (oak, maple, cherry, walnut) benefit tremendously from helical cutterhead technology. Take lighter passes (1/32-1/16 inch) on figured grain patterns to achieve tear-out-free surfaces. The superior finish quality eliminates extensive sanding, saving significant time on projects requiring multiple board feet of dimensioned stock.

Exotic Species (purpleheart, cocobolo, zebrawood, padauk) demand carbide insert durability. These extremely dense woods rapidly dull HSS knives but perform beautifully under carbide inserts with minimal dulling even after processing substantial quantities. Reduce feed rates to 16-20 FPM for optimal results with interlocked grain patterns.

Maintenance Requirements and Best Practices

Minimizing maintenance demands represents a key advantage of benchtop planer helical head systems compared to straight knife alternatives.

Insert Rotation Schedule: Inspect insert condition every 20-30 board feet of hardwood or when surface quality degrades. Rotate dull inserts 90 degrees to expose fresh cutting edges—a 5-minute process requiring only a hex wrench. Document rotation patterns to ensure even wear across all four edges.

Cleaning Procedures: After each work session, use compressed air to remove pitch buildup and sawdust from insert pockets and the cutterhead body. Accumulated resin reduces cutting efficiency and can cause inserts to lift during operation. Periodically apply citrus-based cleaner to dissolve stubborn pitch deposits, avoiding solvents that may degrade carbide bonding agents.

Bearing Lubrication: Annual bearing maintenance with high-temperature lithium grease extends helical head benchtop planer lifespan. Check manufacturer specifications for proper lubrication points and recommended intervals.

Insert Replacement: When all four edges show significant wear, replace individual inserts rather than entire rows. Purchase spare inserts in quantities of 10-20 to maintain consistent cutting performance. Most manufacturers supply replacement inserts with precise dimensional tolerances ensuring proper protrusion height when installed.

Chip Ejection and Dust Collection

The benchtop planer helical head design produces smaller, more uniform chips compared to straight knife systems. These finer shavings offer advantages and challenges for dust collection systems.

Smaller chip size improves dust collector efficiency since particles more readily travel through hoses and cyclone separators. However, increased surface area allows chips to pack more densely in collection bags or bins. Empty dust collection containers more frequently when running helical cutterheads to maintain optimal airflow and prevent system clogging.

Position your planer's dust port to connect with 2.5-4 inch diameter collection hoses matched to your shop vacuum or dust collector capacity. Adequate airflow (400-600 CFM minimum) prevents chip buildup inside the planer housing that can interfere with feed rollers and cutterhead operation.

Balanced Cutting Action Benefits

The spiral arrangement of inserts in a helical head benchtop planer distributes cutting forces more evenly throughout each cutterhead rotation. This balanced action delivers multiple operational advantages:

Reduced Motor Load: Peak amperage draw decreases by 10-20% compared to straight knives hitting wood simultaneously. Lower electrical demands reduce breaker trips in shops with limited circuit capacity while extending motor brush life in universal motors.

Minimized Vibration: Even force distribution reduces frame vibration and table movement during heavy passes. Improved stability contributes to dimensional accuracy, particularly important when thickness-planing multiple boards to identical specifications for panel glue-ups or matched components.

Decreased Snipe: While snipe (non-uniform cutting at board ends) results primarily from insufficient infeed/outfeed support, the balanced cutting of helical heads reduces its severity. The gradual engagement of spiral-arranged inserts versus abrupt contact from straight knives produces more consistent results across entire board lengths.

Investment Considerations and Value Analysis

Benchtop planer helical head upgrades typically add $400-800 to planer costs compared to straight knife equivalents. Evaluating this investment requires considering total cost of ownership across expected tool lifespan.

Calculate blade/insert replacement costs over five years based on your typical usage patterns. A woodworker processing 100 board feet monthly will sharpen or replace straight knives 6-8 times annually ($300-600/year) versus rotating helical inserts 2-3 times annually ($60-150/year in eventual replacement inserts). The helical system reaches cost parity within 18-24 months while delivering superior results throughout.

Time savings from reduced sanding requirements further justify helical head benchtop planer investments. Professional woodworkers report 40-60% reductions in surface preparation time on hardwood projects, translating to increased productivity and faster project completion.

Sheartak: Your Source for Premium Spiral Cutterhead Technology

At Shear Tak, we engineer precision benchtop planer helical heads that elevate your woodworking capabilities through superior design and manufacturing quality. Our spiral cutter heads deliver exceptional performance across the complete range of wood species and grain patterns.

Our helical cutterheads feature precision-matched carbide inserts arranged for optimal shearing angles, ensuring glass-smooth surfaces with minimal tear-out on even the most challenging figured woods. Specialized insert pocket geometry maintains precise alignment and secure retention during high-speed operation.

We understand woodworkers require reliable equipment that minimizes downtime. Our cutterhead designs emphasize straightforward maintenance procedures—simple insert rotation takes minutes rather than the complex knife-setting adjustments required by straight blade systems. This practical approach keeps you focused on creating exceptional woodwork rather than fighting tool maintenance.

Versatility defines our product philosophy. Whether dimensioning rough-sawn white oak for furniture components, surfacing exotic purpleheart for decorative accents, or preparing soft pine for painted cabinetry, Shear Tak helical head benchtop planers handle every application with consistent excellence.

Experience balanced cutting action that reduces motor strain while delivering efficient chip ejection for cleaner operation. Our engineering ensures smooth, vibration-free performance that extends your planer's service life while improving dimensional accuracy across every project.

Conclusion

Upgrading to a benchtop planer helical head represents one of the most impactful improvements available for serious woodworkers. The combination of superior surface finish, reduced noise operation, extended tool life, and decreased maintenance requirements justifies the initial investment through improved productivity and enhanced project quality.

When selecting a helical head benchtop planer, prioritize compatibility with your specific planer model, adequate insert count for your typical applications, and carbide insert quality for long-term durability. Consider two-speed capability if you frequently work with diverse wood species requiring different feed rate optimization.

The technology behind helical cutterheads—spiral-arranged carbide inserts creating shearing cuts—delivers tangible benefits that transform everyday planing operations from challenging tasks into precision processes producing finish-ready surfaces. Whether you're upgrading an existing benchtop planer or selecting a new machine, helical head technology ensures your investment delivers exceptional performance for years of demanding woodworking projects.
