Comparison of Spiral Cutterheads by Byrd, Lux and Sheartak for 15" Planer

Comparison of Spiral Cutterheads by Byrd, Lux and Sheartak for 15" Planer

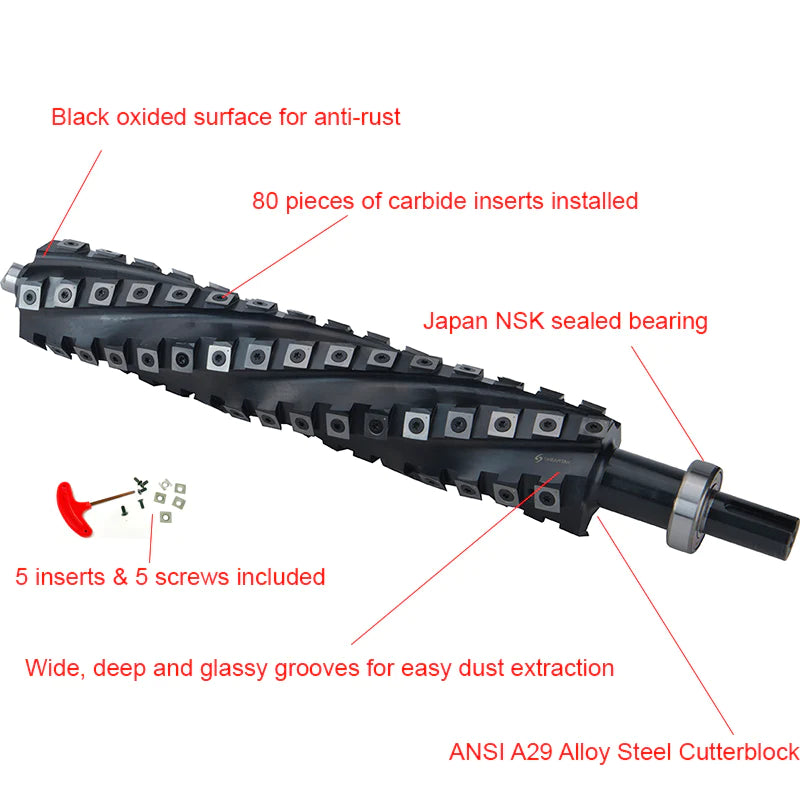

Sheartak, Byrd, and Lux helical cutterheads feature the same design. All of them install the round-edged carbide inserts at an angle to the feeding for shear-cut, which has been proven to be superior to straight edged cutterheads. However, there are certain details that distinguish these cutterheads from each other.

To assist you in making an informed decision, we have created a comparison form that compares the spiral cutterheads from these three popular brands for 15" planers. We hope this form will be helpful to you.

Descriptions Byrd Lux Sheartak
No. of Inserts 75 68 80
No. of Spirals 5 4 5
Carbide Insert   Size 15x15x2.5mm Radius 4"/100mm
Standard Size
15x15x2.5mm Radius 6"/150mm
Special Size
15x15x2.5mm Radius 6"/150mm
Standard Size
Locking Type Taper Hole Counter Bore Taper Hole
Cutting Type Helical Shear-Cut Helical Shear-Cut Helical Shear-Cut
Screws Standard Torx Plus   T25 Head 10#-32 Flat Head, special Standard Torx T25   Head 10#-32
Oil Seal optional  Included Included
Bearing at   Idle End Optional Included Included (Japan NSK   sealed)
Bearing at   Drive End Installed Installed (Japan NSK   sealed)
Replacement   Knives 5 pieces free Optional 5 pieces free
Replacement   Screws   5 pieces free
Surface   Treatment Black Oxidized Black Oxidized Black Oxidized
