Parts of a Planer: Components, Functions and What Each One Affects

Understanding the parts of a planer helps with setup, troubleshooting, and knowing when a component needs attention. This guide covers all nine main parts of a thickness planer and eight parts of an electric hand planer, explains what each one does, what goes wrong when it fails, and which parts have the most direct impact on surface quality.

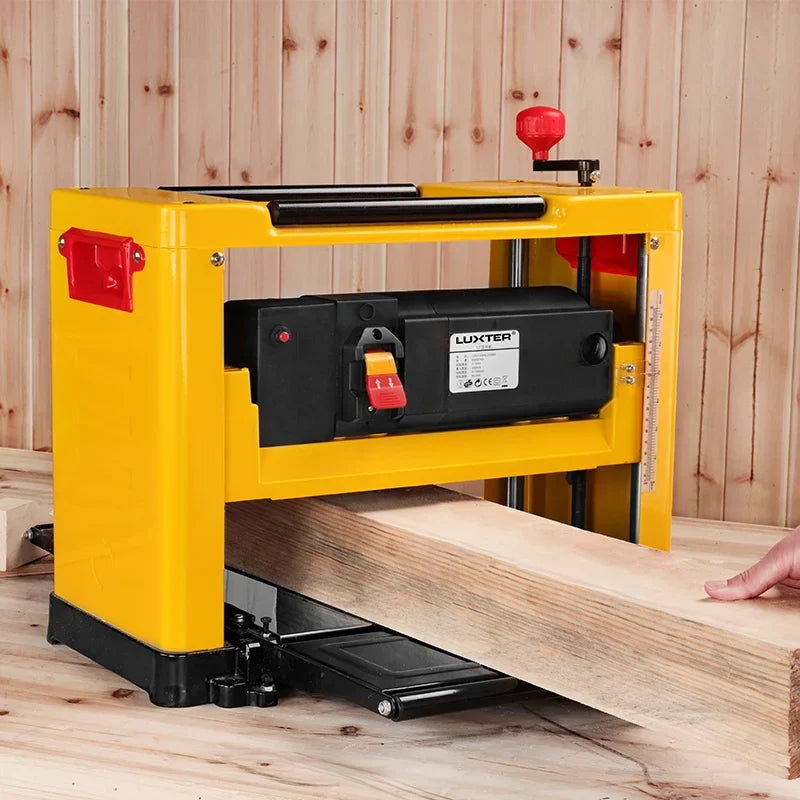

Thickness Planer Parts: All 9 Components Explained

A benchtop thickness planer combines mechanical, electrical, and cutting systems that work together to produce consistent, dimensioned lumber. Each part plays a specific role in feeding, supporting, or cutting the board. Understanding the function of each part is what makes troubleshooting productive rather than guesswork.

The table shows that nearly every part has a direct connection to either surface quality or thickness consistency. Most planer problems can be traced to one of these nine components rather than to operator technique alone.

The Table

The planer table is the flat reference surface that the board's bottom face rests on as it passes through the machine. It is adjustable in height using the depth adjustment system, which determines the distance between the table and the cutterhead and therefore the finished board thickness. The table must be clean and flat to produce consistent results.

Sawdust, chips, or debris on the table surface hold the board at a non-uniform height, causing slight variations in thickness across the board width. Waxing the table surface before each session reduces friction and allows the board to feed smoothly without the motor laboring.

Infeed and Outfeed Rollers

The infeed roller grips the board as it enters the machine and drives it toward the cutterhead at a controlled speed. On most benchtop planers, the infeed roller is serrated steel or hard rubber to maintain grip on rough-surfaced boards. The outfeed roller, which sits on the exit side of the cutterhead, pulls the board out after cutting.

Outfeed rollers are typically smooth steel or rubber to avoid marking the freshly cut surface. The height relationship between the outfeed roller and the table is critical: if the outfeed roller is set too low relative to the table surface, the board drops after passing the cutterhead and the trailing end tips up into a deeper cut, producing exit snipe.

The Cutterhead

The cutterhead is the rotating drum that houses the cutting edges and does all the actual material removal. It is the most performance-critical component in the machine. All other parts exist to support, feed, and stabilize the board so the cutterhead can cut consistently. The cutterhead design, whether straight knife or spiral carbide insert, determines surface quality, maintenance requirements, and performance on difficult grain more than any other single specification. This is covered in depth in the following section.

Chip Breaker and Pressure Bar

The chip breaker sits just ahead of the cutterhead on the infeed side. It applies downward pressure to the board surface as it approaches the cutterhead, preventing the board from lifting and also breaking the chip as it is severed from the board surface. A properly adjusted chip breaker reduces tearout by supporting the wood fibers immediately ahead of the cutting edge. The pressure bar sits just past the cutterhead on the outfeed side and applies downward pressure on the board as it exits the cutterhead zone, preventing the trailing end from lifting into a deeper cut.

Depth Adjustment System

The depth adjustment system on most benchtop planers is a handwheel connected to a lead screw that raises and lowers the table. The distance between the table and the cutterhead determines the finished board thickness. Key points for using the depth system correctly:

• Use the depth scale as a guide only — confirm actual thickness by measuring after a test pass
• On the final pass, always advance from thick to thin to eliminate lead screw backlash
• Lock the depth setting before the final pass on any precision work

Column Posts and Head Lock

On two-column benchtop planers, the cutterhead housing can rock slightly on its posts when roller pressure changes at board entry and exit, momentarily deepening the cut. Four-column machines distribute this load more evenly. If the planer has a head lock mechanism:

• Engage the head lock before every pass
• Check column post fasteners periodically — loose posts amplify head movement and snipe

Feed Rate Control and Dust Port

Some benchtop planers offer two feed speeds. A slower feed rate increases the number of cutting events per inch of board length, producing a smoother surface on difficult species or at aggressive depths of cut. A faster feed rate improves throughput on softwoods and mild hardwoods. The dust port connects to a shop vacuum or dust collector to remove chips as they are produced.

Keeping the dust port clear and connected before each session prevents chip accumulation inside the machine, which reduces feed roller grip and can cause binding during extended sessions.

See more: How to Eliminate Planer Snipe with Spiral Cutterheads

The Cutterhead: The Most Important Part

No single component has more influence on planer performance than the cutterhead. Two machines with identical tables, rollers, and depth systems can produce dramatically different surface quality based solely on their cutterhead design. Understanding the difference between straight knife and spiral carbide insert cutterheads is the most useful technical knowledge a benchtop planer owner can have.

Straight Knife Cutterheads

A straight knife cutterhead uses two or three long knives that span the full width of the cutterhead drum, set parallel to the cutterhead axis, and cut across the full board width simultaneously on every revolution. This design is standard on most entry-level and mid-range benchtop planers because it is inexpensive to manufacture and produces acceptable results on straight-grained softwoods and mild hardwoods.

The limitations become significant on harder or more complex material. The simultaneous full-width impact of the long knives applies a high impulse force to the board with each revolution.

On figured, interlocked, or reversing grain, this impact lifts fibers oriented against the cutting direction, producing tearout. Straight knives also require periodic resharpening and precise height setting after each change: all knives must be set to exactly the same height above the cutterhead body, or the machine vibrates and cuts unevenly.

Spiral Carbide Insert Cutterheads

A spiral cutterhead replaces the long straight knives with rows of small square carbide inserts arranged in a helical pattern around the drum. Each insert is independently mounted in a precision-machined pocket and secured with a single torx screw. The inserts are angled slightly relative to the feed direction, so each one makes a shearing cut rather than a straight impact across the grain.

Because the inserts are staggered in a helix, only a small number are in contact with the board at any given moment. This staggered engagement reduces the instantaneous cutting force compared to straight knives, producing less snipe, less vibration, and dramatically less tearout on difficult grain. When an insert dulls, it is rotated 90 degrees to expose a fresh cutting edge in seconds, with no height setting required. When all four edges of an insert are spent, only that insert is replaced.

Why Cutterhead Design Determines Surface Quality

The practical difference between a straight knife machine and a spiral insert machine is most visible on hardwoods and figured grain. On curly maple, cherry with wavy figure, or walnut with interlocked grain, a straight knife machine produces tearout that technique adjustments can reduce but rarely eliminate. The same boards on a spiral insert machine typically come off the cutterhead with a surface requiring significantly less sanding before finishing.

For any shop processing hardwoods regularly, upgrading from a straight knife to a spiral insert cutterhead is the most impactful single improvement available on an existing benchtop planer.

See more: Spiral Cutterhead vs Straight Knives: An Honest Comparison for Woodworkers

Explore direct-fit spiral cutterheads for your planer: Sheartak Spiral Cutterheads

Electric Hand Planer Parts: 8 Components Explained

The electric hand planer is a portable power tool with a fundamentally different mechanical design from a benchtop thickness planer. Understanding its parts helps with correct setup, lateral alignment, and blade maintenance.

Most electric hand planer problems trace directly to blade condition or lateral alignment rather than any other part. A blade that is dull, nicked, or laterally misaligned accounts for the majority of surface quality complaints on this tool.

Front Sole and Rear Sole

The electric hand planer has two sole plates. The rear sole is fixed and provides the cutting reference: the height of the rear sole relative to the cutterhead determines the finished surface level. The front sole is adjustable and sits lower than the rear sole by the depth of cut setting. As the tool is pushed forward, the front sole rides on the uncut surface while the rear sole rides on the freshly cut surface. The difference in height between the two soles is the material removed per pass. Keeping both soles clean and free of resin buildup ensures consistent contact and prevents surface marks from contamination.

Depth Adjustment Knob

The depth adjustment knob raises or lowers the front sole relative to the rear sole, directly setting how much material is removed per pass. Most electric hand planers mark depth in millimeters on a scale adjacent to the knob. For general trimming on softwoods, 1 to 1.5mm per pass is productive. For dense hardwoods or final finishing passes, reduce to 0.3 to 0.5mm. Always confirm the depth setting before powering on: adjusting depth on a running planer is imprecise and can cause the tool to catch.

Cutterhead Drum and Blades

The cutterhead drum is the rotating element that holds the two double-edged blades. Each blade has two usable edges; when one dulls, the blade is flipped to expose the fresh side. Dull blades are the most common cause of rough surfaces, burn marks on hardwoods, and increased motor noise. Carbide blades last significantly longer than HSS on hardwoods and maintain better surface quality throughout their lifespan.

Lateral Adjustment

The lateral adjustment shifts the cutterhead drum or blade assembly left or right to equalize the cutting depth across the full sole width. If the blade sits at a slight angle, one side of the sole cuts deeper than the other, producing a tapered surface that no depth adjustment can correct. Check lateral alignment after every blade change by making a light test pass on scrap and examining the shaving for uniform thickness across its full width.

See more: How to Use a Hand Planer: Setup, Feed Technique and 6 Common Applications

Which Parts Affect Surface Quality Most

For quick troubleshooting, mapping surface problems to their most likely part cause is more efficient than checking every component. The table below covers the five most common surface quality problems and the parts most likely responsible.

The cutterhead and the outfeed table system account for the majority of surface quality problems on a benchtop thickness planer. On an electric hand planer, blade condition and lateral alignment explain most complaints. Addressing these two areas first resolves the vast majority of planer problems without touching any other component.

Frequently Asked Questions

What is the most important part of a thickness planer?

The cutterhead. It determines surface quality, tearout resistance, and maintenance requirements more than any other part. Upgrading from straight knives to spiral carbide inserts is the single most impactful improvement available on an existing benchtop planer.

What causes snipe and which parts are responsible?

The outfeed table set too low is the most common cause, followed by a worn pressure bar or loose column posts. Fix outfeed table alignment first using the straightedge method before trying other snipe prevention techniques.

What is the chip breaker on a planer and what does it do?

The chip breaker sits just ahead of the cutterhead on the infeed side. It presses the board down immediately before the cutting edge, supporting fibers to reduce tearout. A misadjusted chip breaker increases tearout and chatter on difficult-grain hardwoods.

Why does my thickness planer vibrate more than usual?

Increased vibration usually indicates uneven knife heights, a loose column post, or a damaged carbide insert. Check knife height consistency or inspect inserts for chips. Tighten column post fasteners if the cutterhead housing shows any movement.

What is the difference between the infeed and outfeed rollers?

The infeed roller is serrated to grip rough boards and drive them into the cutterhead. The outfeed roller is smooth to avoid marking the freshly cut surface. Its height relative to the table directly affects exit snipe.

How do I know if my planer table is flat enough?

Place a straightedge across the table in multiple directions. Any visible gap indicates a low spot. Flatness within 0.005 inches is acceptable for most home shops. Persistent uneven board thickness is the primary symptom of a table flatness problem.

Conclusion

A thickness planer has nine main components; the cutterhead is the most performance-critical, determining surface quality on hardwoods more than any other specification. An electric hand planer has eight main parts, with blade condition and lateral alignment responsible for most surface quality problems. Knowing what each part does makes setup, maintenance, and troubleshooting direct rather than trial and error.
