Types of Planers Explained: From Manual Hand Planes to Spiral Cutterhead Benchtop Machines

The word "planer" covers five genuinely different tools that work by different mechanisms, suit different applications, and require different skill levels. This guide breaks down all five types, explains what each does and does not do, covers hand plane subtypes, and provides a decision framework to match the right tool to the right situation.

First, Clear Up the Terminology

The word planer is used inconsistently across manufacturers, retailers, and woodworking communities. The same tool gets called different names depending on the country, context, and speaker. The table below resolves the most common terminology confusion before the type-by-type breakdown.

Two of these terms cause the most confusion in practice. "Hand planer" refers to both the traditional manual tool and the electric handheld power tool depending on context. And "planer" alone can mean a benchtop thickness planer or a manual hand plane depending on who is speaking. This guide uses the full descriptive names throughout to avoid ambiguity.

The 5 Main Types of Planers

Each type occupies a distinct position in the workshop, serves specific tasks, and has limitations that the others do not share. The master comparison table below maps all five types across the criteria that matter most for choosing between them.

The most important column is Primary Use. Each type is engineered to do one job well, and attempting to use a type outside its primary role produces worse results than using the correct tool. The most common mistake is expecting a benchtop thickness planer to flatten a warped face, which it cannot do, or expecting an electric hand planer to produce consistent thickness across multiple boards, which it also cannot do reliably.

Manual Hand Planes

The manual hand plane is the oldest planing tool and still the most precise for certain operations. It uses a sharp iron blade set at an angle in a flat-soled body. When pushed across wood, the blade shaves a thin layer from the surface. The depth of cut is adjusted by how far the blade protrudes below the sole. Unlike power tools, every aspect of the cut is controlled directly by the operator, which makes hand planes the preferred tool for fine furniture making, fitted joinery, and any work where a machine would be too aggressive.

Block Plane

The block plane is the smallest and most versatile hand plane in common use. It is designed to be held in one hand and excels at end grain work, chamfering edges, and trimming small pieces. The blade is bedded bevel-up at a lower angle than bench planes, which is better suited to the shearing action needed on end grain. Block planes fit in a coat pocket and go anywhere, which makes them a constant presence in both home shops and job sites. A low-angle block plane, typically bedded at 12 degrees, is the most common configuration and handles the widest range of small trimming tasks.

Jack Plane and Bench Planes

The jack plane is the workhorse bench plane for stock preparation. At 14 to 15 inches in length, it is long enough to bridge surface irregularities and remove material efficiently, but short enough to be maneuverable. It is typically the first plane used when preparing rough lumber by hand: the slightly cambered iron allows aggressive material removal across the grain to level high spots before finer planes are used. The No. 5 Stanley-pattern jack plane is the standard recommendation for anyone learning hand plane work, as it teaches the fundamentals applicable to all other bench planes.

Longer bench planes, the No. 6 and No. 7, are jointer planes used to flatten edges and faces over longer board lengths. Their extended sole prevents them from following surface hollows, producing straighter edges and flatter faces than shorter planes can achieve. The No. 7 at 22 inches is the minimum length for reliable edge jointing on boards intended for glue-up panels.

Smoothing Plane

The smoothing plane, typically a No. 4 at 9 to 10 inches, is used as the final operation before finishing. Its short sole follows surface contours, which would be a disadvantage for flattening but is an advantage when the goal is to leave a polished, tearout-free surface. A well-tuned smoothing plane with a sharp iron produces a surface that requires no sanding before finishing, a quality no power tool can consistently match on difficult grain. The smoothing plane is one of the most demanding tools to use correctly but delivers results that distinguish fine furniture from shop-grade woodworking.

When to Use a Manual Hand Plane

Manual hand planes are most valuable for tasks that require immediate feedback, fine control, or access to surfaces that machines cannot reach: flattening a glued-up panel, fitting a drawer to a specific opening, cleaning up a mortise bottom, or planing against the grain when a powered machine would tear the surface. They are not efficient for high-volume material removal from rough stock, where the physical effort required is disproportionate to the result compared to machine options.

See more: What Is a Jointer Used for in Woodworking? Complete Guide to Perfect Edges

Electric Hand Planers

The electric hand planer is a portable power tool with a motor-driven rotating cutterhead between two sole plates. The front sole is adjustable to set depth of cut. The operator guides the tool along a board edge or face, and the spinning cutterhead removes material at a controlled depth. It is the powered equivalent of a jack plane for many trimming operations, but with the speed advantage of a motor.

What It Does and Does Not Do

An electric hand planer excels at trimming installed work: shaving a door edge that sticks in its frame, chamfering a post corner, reducing the height of a cabinet panel after installation, or knocking down proud edges on framing. It removes material quickly and handles hardwoods and large cross-sections that would require significant effort with a manual plane. What it cannot do is produce consistent thickness across a board's full length, because the cut depth depends on the operator maintaining constant pressure and angle throughout the pass.

Typical Applications

Door trimming is the application that justifies most electric hand planer purchases outside dedicated woodworking shops. A door that has swollen, been rehung slightly out of square, or needs 3mm removed from its bottom edge is a typical job that takes five minutes with an electric hand planer and 45 minutes without one. Chamfering posts and beams, back-beveling cabinet filler pieces to fit against irregular walls, and reducing the height of installed flooring transitions are equally common applications where the portability of this tool is the primary advantage.

See more: Choosing the Right Spiral Cutterhead for Your Jointer or Planer

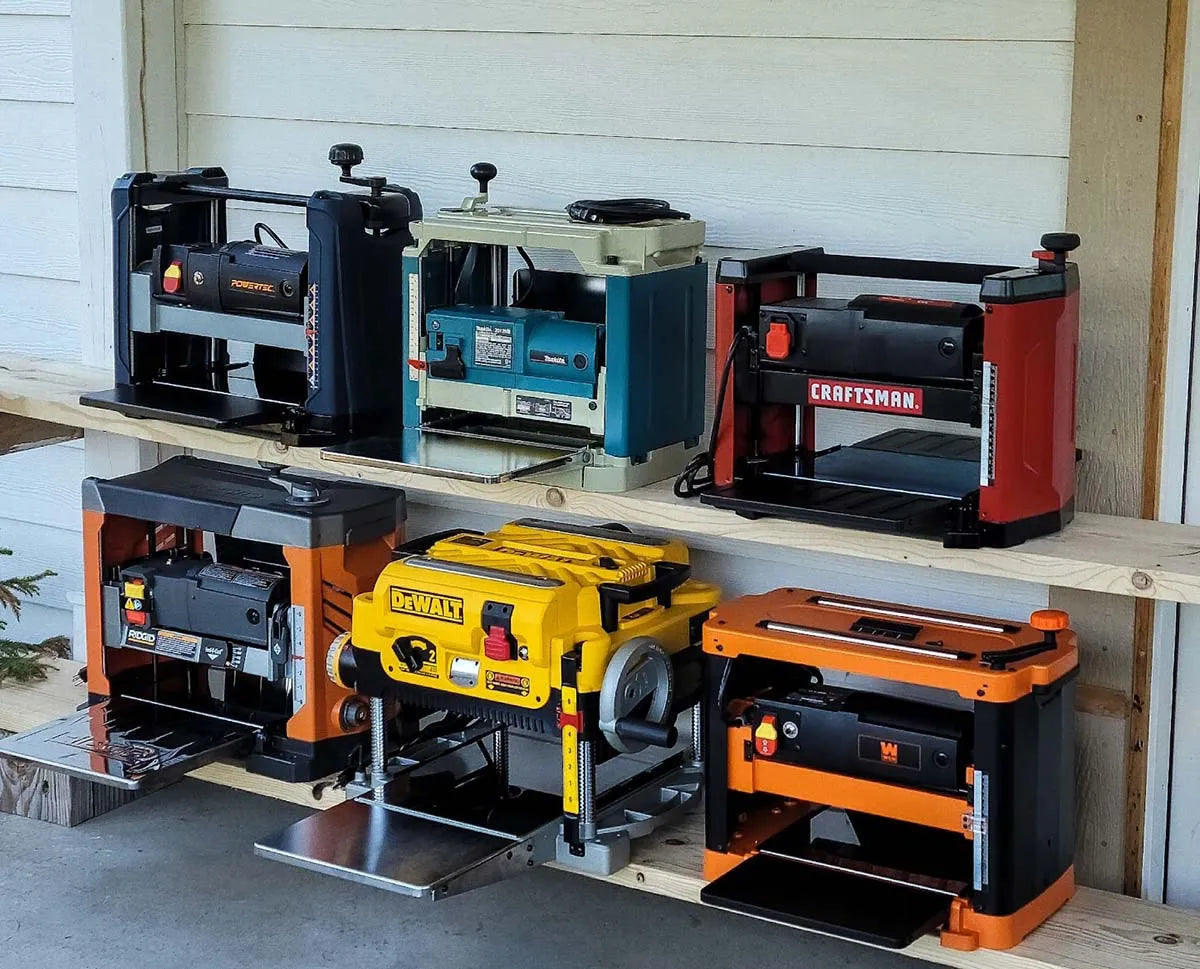

Benchtop Thickness Planers

The benchtop thickness planer is the most versatile machine planer for home shops and small professional shops. It weighs between 50 and 80 pounds, sits on a workbench or dedicated stand, and accepts boards up to 12 or 13 inches wide. It feeds boards through powered rollers under a rotating cutterhead, producing a face that is parallel to the bottom reference face at a precise, consistent thickness. This is the machine that makes the rough lumber market accessible: rough-sawn hardwoods cost 30 to 50 percent less than pre-surfaced stock, and the benchtop planer converts them to usable dimensioned lumber in minutes.

Straight Knife Cutterheads

Most entry-level and mid-range benchtop planers ship with two or three long high-speed steel knives that span the full board width. Straight knives cut in a continuous arc across the board simultaneously, which works acceptably on straight-grained softwoods and mild hardwoods. On figured, interlocked, or reversing grain, the simultaneous full-width impact lifts fibers against the cutting direction, producing tearout. Straight knives dull faster than carbide, require periodic resharpening and height-setting after each change, and produce a ridge across the full board length when a knife develops even a minor nick.

Spiral Carbide Insert Cutterheads

A spiral carbide insert cutterhead replaces the long straight knives with rows of small square carbide inserts arranged in a helical pattern. Each insert engages a small section of the board width at a slight skew angle, shearing rather than impacting fibers. The results on difficult grain are dramatically better than straight knives, and the maintenance model changes entirely: when an insert dulls, rotating it 90 degrees exposes a fresh cutting edge in under two minutes. No height-setting, no sharpening service, no knife change procedure. For any woodworker who processes hardwoods regularly, the spiral cutterhead is the specification that most determines long-term satisfaction with a benchtop planer purchase.

Explore direct-fit spiral cutterheads for benchtop planers: Sheartak Spiral Cutterheads

What to Look for When Buying

Beyond cutterhead design, the specifications that matter most for a benchtop planer are capacity width (12 or 13 inches covers most home shop needs), depth of cut range (1/16 inch per pass is standard; models with a snipe-reduction mechanism are worth the premium), and feed speed. Two-speed models allow slower feeds on difficult species for better surface quality. Machines that include infeed and outfeed extension tables reduce snipe without manual technique compensation.

Stationary Floor Planers

Stationary floor planers are industrial machines designed for professional shops, cabinet manufacturers, and millwork operations. They accept boards 15 to 24 inches wide or more, remove material more aggressively per pass, and run continuously for hours without motor fatigue. The motor power in a floor planer, typically 3 to 5 horsepower, allows processing of wide, dense boards that would stall a benchtop machine. The price range starts around $1,500 for entry-level 15-inch models and extends to tens of thousands of dollars for production-grade machines.

For home shop woodworkers, the floor planer is not a practical option due to cost, floor space requirements, and electrical service demands. The benchtop planer covers the overwhelming majority of home shop planing needs. Floor planers become relevant when a home shop grows into a small professional operation, when the primary work involves consistently wide stock, or when production volume makes the speed advantage of a larger machine economically significant.

Combination Jointer-Planers

A combination jointer-planer, known in Europe as a planer-thicknesser or over-under machine, combines a jointer table on top and a thickness planer below in a single machine. The jointer outfeed and infeed tables fold back to expose the thickness planer below, and the machine switches between modes by repositioning the stock. The fundamental advantage is footprint: one machine occupies the floor space that two separate machines would require, at a combined cost that is typically lower than purchasing both separately.

The tradeoff is operational inconvenience. Switching between jointer and planer modes requires repositioning the tables and in some designs resetting the cutterhead height, which interrupts workflow when the two operations need to alternate frequently. For a shop that always does all jointing before all planing, this is a minor issue. Combination machines are most practical in shops where space is the primary constraint and the woodworker can plan workflow to minimize mode-switching.

See more: Helical vs Spiral Cutterheads: Why Choose Spiral for Cleaner Cuts

Which Type Is Right for You?

The right planer type depends on what work you need it for, how much space and budget you have, and what other tools are already in your shop. The decision framework below maps six common situations to the appropriate type.

For most home shop woodworkers new to dimensioning their own lumber, the benchtop thickness planer with a spiral carbide insert cutterhead is the starting point that delivers the most long-term value. It handles the rough lumber market, produces consistent results from the first session, and with spiral inserts, does not require a sharpening and resetting maintenance cycle.

Conclusion

Five types of planers cover the full range of woodworking needs. Manual hand planes deliver the finest surface control. Electric hand planers handle portable trimming. Benchtop thickness planers are the home shop standard for rough lumber. Floor planers serve production volume. Combination machines solve the space problem. For any benchtop planer purchase, the cutterhead specification determines long-term performance more than any other single factor.
