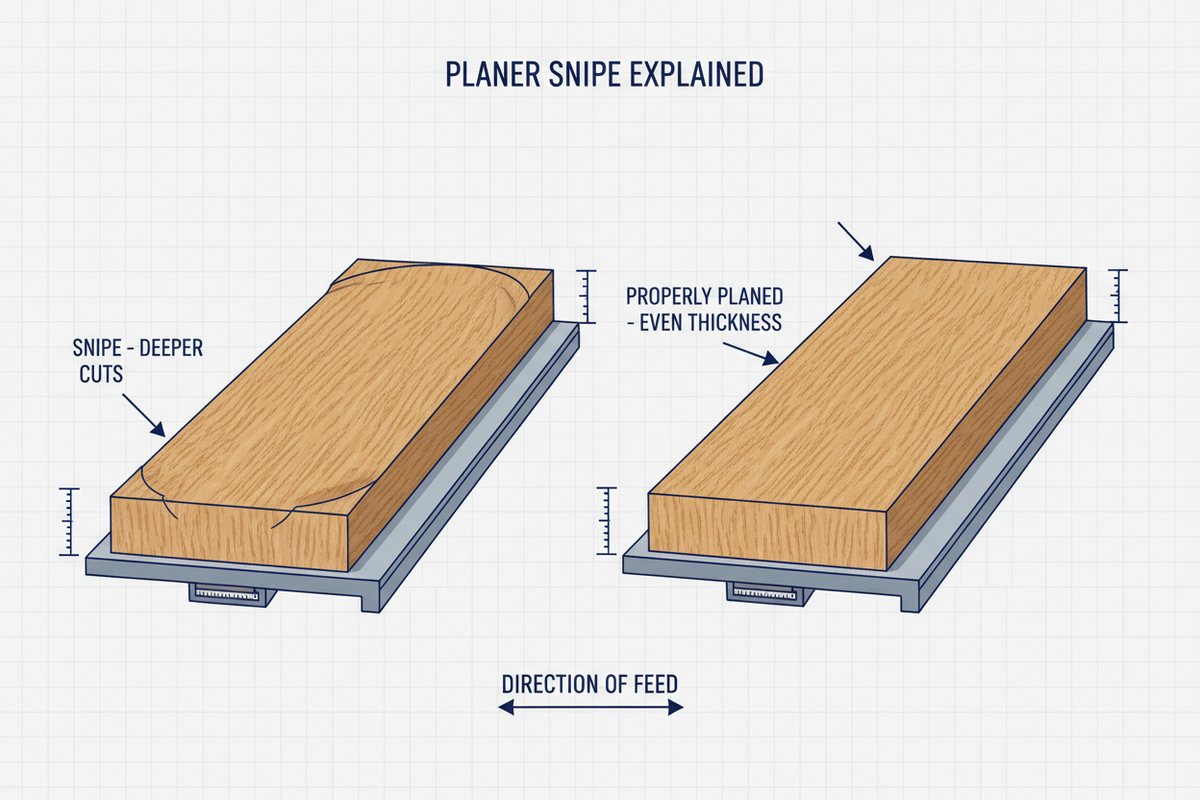

What Is Planer Snipe? Causes, 6 Prevention Methods Compared, and How to Fix It
Planer snipe is one of the most consistently frustrating problems in woodworking, and one of the most misunderstood. Many woodworkers accept it as inevitable when it is actually preventable in most situations. This guide explains what causes snipe at a mechanical level, how to identify it reliably, six proven prevention methods with an honest comparison of each, and what to do when snipe has already occurred on a finished board.
What Causes Planer Snipe
Snipe is not random. It results from specific mechanical conditions inside the planer, and understanding those conditions is what makes the prevention methods work rather than feeling like guesswork.
The Single-Roller Problem
A benchtop thickness planer has two rollers: an infeed roller positioned before the cutterhead and an outfeed roller positioned after it. Both rollers press down on the board simultaneously during the main body of the cut, keeping the board flat and consistent against the table. At the very beginning of each board, only the infeed roller has gripped the stock. At the very end, only the outfeed roller maintains contact. During these transition zones, the board is held by a single roller, and the unsupported end is free to tip slightly upward toward the spinning cutterhead. The cutterhead then removes a slightly deeper cut on that end. This is the fundamental mechanical cause of planer snipe in nearly every benchtop machine.

Cutterhead Assembly Movement
A secondary cause, particularly pronounced on two-column benchtop planers, is movement in the cutterhead assembly itself. The rollers exert significant downward force on the board to drive it through. On machines with two vertical columns supporting the head, this roller pressure creates slight flexion in the head assembly as the board engages each roller in sequence. When the board is in the transition zone and only one roller is loaded, the force distribution shifts and the head can drop fractionally downward, cutting deeper. Machines with four-column head assemblies or head-locking mechanisms significantly reduce this movement and produce less snipe as a result.
How Depth of Cut Affects Snipe Severity
The depth of cut directly determines how much downward roller pressure is needed to drive the board through. A deeper cut creates more resistance, which requires more roller force, which creates more flexion in the head assembly and more tipping at the board ends. A shallow cut of 1/32 inch or less requires minimal force, producing dramatically less snipe than a 1/16-inch pass on the same board. On the final pass to target thickness, reducing depth of cut as much as possible is one of the easiest snipe-reduction steps available.

How to Identify Snipe on Your Boards
Snipe is not always visible under normal shop lighting, which is why boards that appear clean off the planer can show a pronounced dip after finish is applied. Two methods reliably reveal snipe before it becomes a problem in a finished project.
The first method is the raking light test. Hold the board at a low angle to a single light source positioned at one end of the board. Any depression at the board ends will cast a visible shadow across the otherwise flat surface. This test takes five seconds and reveals even very shallow snipe of 0.005 inches or less that would be invisible under overhead shop lighting.
The second method is the pencil rub test. Rub a soft pencil flat across the end 12 inches of the board so that graphite coats the high points. When you slide your finger across the surface, the high spots feel smooth and the snipe shows as a slight hollow. On a severely snipped board, you can feel the transition from flat to snipped with a fingertip alone, particularly at the exit end where snipe tends to be deepest.
6 Methods to Prevent Planer Snipe
No single method eliminates snipe in every situation. The right choice depends on the equipment available, the number of boards being processed, and how much setup time is practical for the session. The table below compares the six most reliable methods across three practical criteria.
|
Method |
Effectiveness |
Setup Time |
Best For |
|
Feed boards end-to-end |
Very high |
Low (no extra setup) |
Batch processing multiple boards |
|
Sacrificial lead and trail boards |
High |
Low to medium |
Single boards or small batches |
|
Lift trailing end by hand |
Medium to high |
None |
Any situation; requires practice |
|
Adjust infeed and outfeed tables |
High |
Medium (one-time setup) |
All sessions on same machine |
|
Add length for trimming |
Medium |
None |
When material allows extra length |
|
Reduce depth of cut |
Medium |
None |
Final pass; always recommended |
Each method addresses one or more of the mechanical causes described above. The most reliable results come from combining two or three methods rather than relying on any single approach.

Method 1: Feed Boards End-to-End
Running boards consecutively with no gap between them is the most effective single technique for batch processing. When the trailing end of the first board is immediately followed by the leading end of the second board, the rollers never transition to single-board contact. Both rollers remain loaded throughout the pass, eliminating the condition that causes snipe. The only snipe that occurs is at the very first board's leading end and the very last board's trailing end. For projects requiring multiple boards of the same thickness, this method is the first choice.
Method 2: Use Sacrificial Lead and Trail Boards
When only a single board needs processing, sacrificial boards of the same thickness placed immediately before and after the workpiece achieve the same effect as end-to-end feeding. The sacrificial boards receive the snipe at their ends, and the workpiece passes through entirely in the zone where both rollers are in contact. Sacrificial boards can be any scrap of matching thickness.
They do not need to be the same species or width. Keep a set in the shop dedicated to this purpose and reuse them until they become too short to be safe in the machine.

Method 3: Lift the Trailing End by Hand
Raising the unsupported end of the board slightly as it enters and exits the planer counteracts the tipping that causes snipe. As the leading end contacts the infeed roller, hold the trailing end slightly above horizontal. This keeps the leading end pressed flat to the table rather than tipping upward.
Repeat at the exit end: as the trailing end exits the outfeed roller, lift it slightly upward to prevent the still-engaged end from tipping toward the cutterhead. This technique requires no extra materials and works on any planer, but it takes practice and is less consistent than the other methods.
Method 4: Adjust Infeed and Outfeed Tables
Many benchtop planers ship with infeed and outfeed extension tables set slightly below the level of the main table. Boards sagging on these lower extensions tip upward at the entry and exit points. Adjusting the extension tables so their surfaces are level with or very slightly above the main table surface (about 1/16 inch) eliminates this sag-induced tipping.
Check table alignment with a straightedge laid across the main table and extension surfaces. This is a one-time setup adjustment that improves every session on that machine.
Method 5: Add Length for Trimming
When the material allows it, milling boards 3 to 4 inches longer than the final dimension needed gives room to crosscut the snipped ends after planing. This does not prevent snipe but accepts it as inevitable and plans around it. It is a reliable fallback for situations where other methods are impractical, such as when a long board cannot be supported properly or when time does not allow more elaborate setups. The limitation is that it requires purchasing or preparing longer stock than the project strictly demands

Method 6: Reduce Depth of Cut
Reducing the depth of cut reduces roller force, which reduces head assembly movement and the tendency to tip at board ends. On the final pass to target thickness, setting the machine to remove 1/64 inch or less produces noticeably less snipe than a 1/16-inch pass and leaves a cleaner surface as well.
For sessions where snipe is a persistent problem despite other precautions, taking all passes at 1/32 inch or less throughout the session is a practical starting point.
See more: How to Use a Thickness Planer: Setup, Feed Technique, Snipe Prevention, and Troubleshooting
How to Fix Snipe After It Has Already Happened
When snipe appears on a board that has already been planed to final thickness, there are three remediation options. None of them are ideal, which is why prevention is strongly preferable, but each has a place depending on the severity of the snipe and the requirements of the project.
Cut Off the Snipped Ends
Crosscutting the snipped section off the board is the most straightforward fix when the project allows it. Snipe typically extends 6 to 12 inches from each end, though on well-maintained machines with good technique it may be confined to the last 3 to 4 inches. If the rough board was milled with extra length in anticipation of this possibility, no material is wasted beyond the planned allowance. If the board was milled to an exact length, this option removes usable material and requires a longer replacement piece.
Sand the Affected Area
For very shallow snipe that does not need to be completely eliminated, progressive sanding through grits from 80 to 150 can blend the transition from the snipped end into the flat body of the board. This approach works for pieces that will receive a painted finish or for secondary surfaces that will not be visible in the finished project. It does not work for show surfaces on furniture, cabinetry, or panels where the transition will be visible under a clear finish. Sanding a snipped end to flatness requires removing a significant amount of material and introduces a slight taper at the board end.
Pass Through the Jointer
For snipe that is shallow and confined to a short section, placing the snipped face down on a jointer and taking a light pass removes the raised section surrounding the snipe and produces a flat face. This approach works well when only a small amount of thickness can be sacrificed. It requires a jointer with a table long enough to support the board properly and produces a board that is slightly thinner than the planed thickness by the amount removed on the jointer. The advantage over sanding is that the jointer produces a genuinely flat surface rather than a blended transition.
See more: What Does a Planer Do? A Complete Guide to Wood Planers
When Your Cutterhead Makes Snipe Worse
Technique and machine setup address most snipe problems, but the cutterhead design has a direct effect on snipe severity that is rarely discussed in basic guides. On machines with straight knife cutterheads, the cutterhead-to-snipe relationship is particularly significant.
Why Straight Knives Amplify Snipe
A straight knife cutterhead has two or three long knives that engage the full width of the board simultaneously. This simultaneous full-width contact creates a sharp impact at each rotation of the cutterhead, generating vibration and a larger instantaneous load on the machine's head assembly. Under this vibration and load, the head assembly flexes slightly more than it would under a lower-impact cutting action. The result is a machine that is more sensitive to the head movement that produces snipe, particularly at the transition zones where roller support is reduced.

How a Spiral Cutterhead Reduces Snipe
A spiral cutterhead uses rows of small square carbide inserts arranged in a helical pattern. Rather than the full board width engaging simultaneously, only a few inserts are in contact with the wood at any given point in the rotation. The staggered engagement distributes the cutting load across a much longer arc of the rotation, dramatically reducing the instantaneous peak force on the head assembly. Less peak force means less head movement during the transition zones, which directly translates to shallower or less frequent snipe.
The reduction in snipe from a spiral cutterhead upgrade is most noticeable on machines with two-column head assemblies, where head movement is the dominant snipe mechanism. On these machines, the lower impact cutting action of a spiral head can reduce snipe depth by 50 percent or more compared to straight knife performance, even without changes to technique or table setup.
Sheartak spiral cutterheads are direct-fit replacements for most major benchtop planer brands including DeWalt, Delta, Powermatic, Grizzly, Jet, and a range of European machines. For woodworkers dealing with persistent snipe despite correct technique, a cutterhead upgrade addresses the mechanical root cause rather than working around it.
See more: How to Reduce Planer Snipe with a Spiral Cutterhead
Explore direct-fit spiral cutterheads for your planer: Sheartak Spiral Cutterheads
Conclusion
Planer snipe is a mechanical problem with mechanical solutions. Understanding why it happens at the level of roller contact and head movement makes every prevention method more effective. Feed boards end-to-end for batch work, use sacrificial boards for single pieces, and reduce depth of cut on every final pass. When snipe persists despite correct technique, a spiral cutterhead upgrade addresses the root cause directly.
