Helical Moulder Cutter Heads for Planers and Moulders
Sheartak helical moulder cutter heads are precision-engineered for planer-molder combos and dedicated moulder machines running production volumes across North America. Each head uses staggered 4-edge carbide inserts arranged along helical grooves, delivering a true shear cut on hardwoods, softwoods, and figured grain. Compatible with Woodmaster, General, Cantek, and dozens of other brands, with custom manufacturing available for unlisted models.

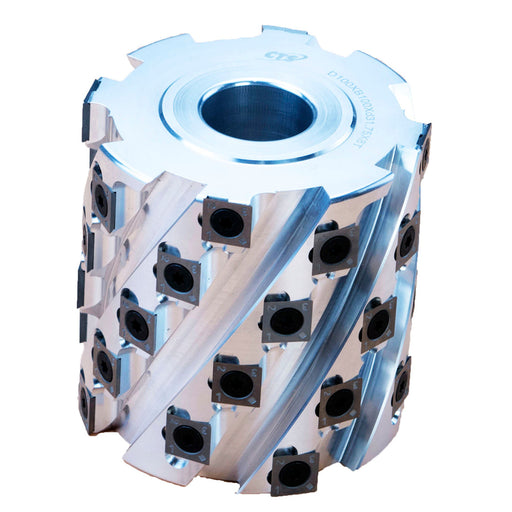

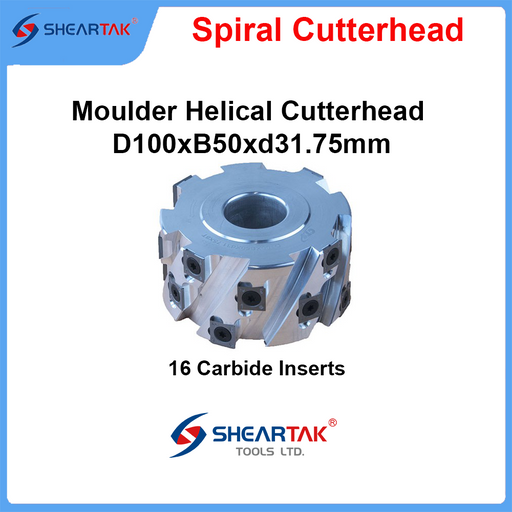

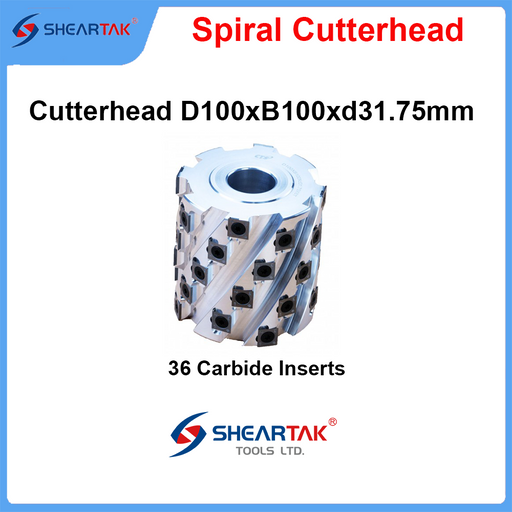

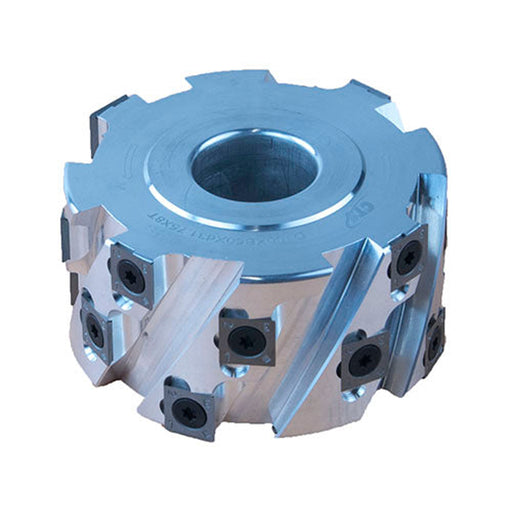

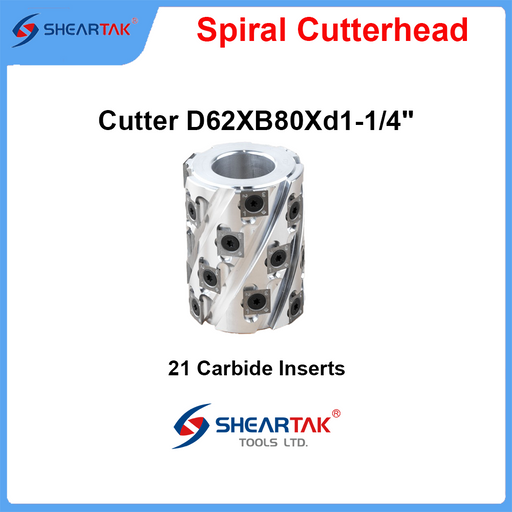

What Is a Helical Moulder Cutter Head?
A helical moulder cutter head is a precision cutting tool designed to replace straight-knife assemblies in planer-molder machines, combining surface planning and profile moulding in a single upgrade.
How the Helical Design Works in a Planer-Molder
In a standard straight-knife cutterhead, the full knife edge contacts the wood in one impact per rotation. A helical moulder cutter head arranges individual carbide inserts along a continuous helical groove, so each insert contacts the material at a slight angle as the head rotates. This staggered cutting sequence creates what is called a shear cut: the wood fiber is sliced progressively rather than struck across its full width simultaneously. In a planer-molder running both surface planing and profile moulding operations, this shear-cut geometry produces a cleaner profile edge, reduces fiber pullout on cross-grain sections, and keeps motor load more consistent than a straight-knife head taking a full-width bite.
Helical vs. Straight-Knife Cutterheads for Moulders
Understanding the differences between a helical moulder cutter head and a conventional straight-knife assembly helps clarify why most professional shops upgrading their planer-molder invest in the helical option rather than continuing with blade sharpening cycles.
A helical moulder cutter head delivers a gloss-level surface finish on both straight and figured grain, while a straight-knife cutterhead produces acceptable results only on consistent, knot-free stock and leaves tear-out marks on challenging hardwoods. On noise and vibration, the helical design keeps only a small number of inserts in contact with the workpiece at any moment, significantly reducing both noise and motor load compared to the full-width blade strike of a straight-knife head. Insert life is where the gap widens most: 4-edge carbide inserts in a helical moulder cutter head last approximately 10 times longer than HSS straight knives, and maintenance consists of a 90-degree insert rotation rather than full knife removal and resharpening. For chip management, the helical design produces small, fine chips that dust collection systems handle efficiently, while straight-knife heads generate wide, flat chips that frequently overload the same collection setup.
A helical moulder cutter head outperforms straight-knife assemblies in surface finish quality, noise reduction, and long-term maintenance cost, making it the preferred upgrade for professional planer-molder operations.
Performance Benefits of Upgrading to a Helical Moulder Cutter Head
Professional woodworking shops across the US and Canada upgrade to a helical moulder cutter head primarily for three measurable gains: cleaner surface finish, lower operating noise, and significantly reduced blade maintenance cost. For shops running planer-molder combos through multiple shifts on hardwood stock, these benefits compound quickly into real production savings.
Tear-Out Elimination on Figured Hardwoods
The shear-cut angle of a helical moulder cutter head is particularly effective on figured hardwoods such as curly maple, interlocked oak, and knotty pine, where straight-knife cutterheads regularly leave tear-out marks and surface voids. Because each insert engages wood fiber at a diagonal rather than head-on, the fiber is sliced cleanly regardless of grain direction. Shops running profiled moulding on figured stock report a reduction in sanding time by up to 75 percent after switching to a helical planer cutter head, as profile edges come off the machine smooth enough to finish directly.
Significantly Reduced Noise and Vibration
A straight-knife head generates noise proportional to its full cutting width on every rotation. A helical moulder cutter head keeps only a small number of inserts in contact with the workpiece at any one moment, distributing the cutting load and reducing both vibration and airborne noise. Sheartak customers running Woodmaster planer-molder models consistently report the difference as dramatic, with several describing operation as whisper-quiet compared to the original straight-blade assembly. Reduced vibration also means less stress on machine bearings and the moulder frame over time.
4-Edge Indexable Carbide Inserts: Rotate, Don't Replace
Every helical moulder cutter head from Sheartak uses 4-edge indexable carbide inserts. When one cutting edge becomes dull, the insert is rotated 90 degrees to expose a fresh edge with no blade removal, height adjustment, or re-setting required. A single insert provides four usable edges before it needs to be replaced, and only the worn insert is changed rather than the entire knife set. Carbide inserts last approximately 10 times longer than conventional HSS straight knives under equivalent cutting conditions, making the helical planer cutter head a long-term cost reduction for any shop running regular production.
Machine Compatibility: Which Planer-Molder Models Fit?
Sheartak supplies helical moulder cutter heads for hundreds of planer-molder and jointer models used in professional shops across North America. The table below covers the most common machine categories and example brands served by Sheartak helical cutterheads.
Planer-molder combo machines in the 12 to 25 inch range are the primary application for Sheartak helical moulder cutter heads, covering Woodmaster 712, 718, 721, and 725PM models as well as General International combo machines. Industrial thickness planers from 15 to 24 inches, including Cantek, Grizzly, Powermatic, and SCM models, are also well served by this head class. Jointer-planer combinations from 8 to 16 inches, such as those made by JET, Robland, Felder, and Northtech, use a jointer helical cutter head configuration confirmed during pre-sales. For dedicated moulders with non-standard bore and cutting width, Sheartak manufactures to spec following a technical consultation.
Sheartak helical moulder cutter heads are stocked for the most popular planer-molder and jointer models in North America. For machines not listed here, contact Sheartak with your machine specs for a custom option.
Woodmaster Planer-Molder Models: 712, 718, 721, and 725PM
Woodmaster planer-molder combos are among the most popular machines upgraded with a Sheartak helical moulder cutter head. The Woodmaster 712 (12 inch) head is fitted with 78 carbide inserts; the 718 (18 inch) carries 120 inserts; the 721 (21 inch) ships with 136 inserts; and the 725PM (25 inch) is equipped with 162 inserts. All Woodmaster helical heads use curved-edge inserts arranged along helical grooves for a true shear cut. Each head ships complete and ready to fit. Browse the full range in the Sheartak spiral cutter heads collection for additional Woodmaster and other brand options.
General International, Cantek, Grizzly, and Other North American Brands
Sheartak stocks helical moulder cutter heads for General International 15-inch and larger planers, Cantek planer-molder combos, Grizzly industrial planers, and a wide range of other North American brands. For machine models not listed in the standard catalog, Sheartak confirms compatibility by reviewing machine model number, bore diameter, and journal dimensions before the order is processed. Contact the team at sales@sheartak.com or toll-free at 1-877-417-4327 to verify the right jointer helical cutter head or planer-molder head for your machine.
How to Choose the Right Helical Moulder Cutter Head
Selecting the correct helical moulder cutter head requires matching three variables to your machine: cutting width, bore diameter, and insert specification. Getting any one of these wrong means the head will not seat correctly or will underperform at your required cutting depth.
Step 1: Confirm Your Machine Model and Cutting Width
The machine model number is more important than the stated cutting width. Two machines from the same brand can require different bore diameters or journal lengths depending on manufacturing year. Start with the full model number from your machine's nameplate before looking up compatibility. Sheartak stocks helical moulder cutter heads for Woodmaster, General International, Cantek, Grizzly, JET, Robland, Felder, and many other brands. For models not in the standard catalog, custom manufacturing is available.
Step 2: Match the Insert Size to Your Machine Class
Planer-molder combo machines typically use 15 x 15 x 2.5mm carbide inserts, the North American production standard for this machine class. Dedicated moulders or jointer-planer combinations may use a different insert geometry depending on machine design. Sheartak confirms the correct insert specification as part of the pre-sales process, ensuring the helical cutter head planer configuration matches your machine's cutting requirements before the order ships.
Step 3: Consider Motor Power and Insert Count
A helical moulder cutter head with a higher insert count requires the machine motor to maintain head speed under a greater cumulative cutting load. For shops running thick hardwood stock at high feed rates, Sheartak can advise during pre-sales consultation whether your machine's motor is rated for the head configuration you are considering. Underpowered operation at high insert counts leads to reduced surface finish quality and accelerated insert wear.
Why Professional Shops Choose Sheartak for Helical Moulder Cutter Heads
Sheartak has been manufacturing and supplying precision cutterheads to professional woodworking and metalworking shops across Canada and the US for over 16 years. For a helical moulder cutter head specifically, the pre-sales verification process matters more than for general tooling, and Sheartak's process is built around confirming the correct fit before an order ships.
Pre-Sales Technical Verification for Every Order
Ordering an incorrect cutterhead for a planer-molder is a costly mistake. Sheartak's team requests machine model, journal dimensions, bore specification, and cutting requirements before confirming any order. This technical review ensures the helical moulder cutter head ships correctly the first time. Verified accounts from professional shops that have completed this process are available on the Sheartak testimonials page.
Custom Manufacturing for Unlisted Machine Models
When a planer-molder or dedicated moulder falls outside the standard catalog, Sheartak manufactures a custom helical moulder cutter head to specification. The process starts with a detailed technical consultation to confirm bore diameter, journal dimensions, cutting width, and insert layout. Production lead time for custom heads is approximately six to seven weeks from order confirmation. This capability makes Sheartak a reliable source for shops running older or less common machines that standard suppliers cannot serve.
Direct Support from a Family-Operated Specialist
Sheartak is a family-operated business focused exclusively on cutterhead manufacturing and supply. Technical questions go directly to the people who design and build the heads, not through a general customer service layer. The team is reachable at sales@sheartak.com or toll-free at 1-877-417-4327 for pre-sales consultation, installation questions, and post-purchase support.
Frequently Asked Questions About Helical Moulder Cutter Heads
The questions below address the most common technical and purchasing concerns raised by woodworkers and shop owners before ordering a helical moulder cutter head from Sheartak.
What is the difference between a helical moulder cutter head and a standard spiral cutterhead?
A helical moulder cutter head is configured for planer-molder machines with higher cutting loads and profile work, while a standard spiral cutterhead is designed for surface planing only.
Can a helical cutter head be used in a planer-molder combo machine?
Yes. Sheartak manufactures helical cutter head planer for moulders configurations specifically for combo machines including Woodmaster 712, 718, 721, and 725PM models.
What carbide insert size do Sheartak helical moulder cutter heads use?
Most Sheartak planer-molder heads use 15 x 15 x 2.5mm 4-edge indexable carbide inserts. Replacement inserts are available in the Sheartak carbide inserts collection.
How long does a custom helical moulder cutter head take to manufacture?
Custom helical moulder cutter heads for unlisted machine models have a production lead time of approximately six to seven weeks from order confirmation.
Do helical cutter heads work on both woodworking and metalworking moulders?
Yes. Sheartak supplies helical moulder cutter heads for woodworking and select metalworking applications. Contact the team with your material and machine details for a recommendation.
Get the Right Helical Moulder Cutter Head for Your Machine
Whether you are upgrading a Woodmaster planer-molder or sourcing a jointer helical cutter head for a less common machine, Sheartak has the manufacturing capability and 16 years of technical experience to supply the right head for your operation. Contact the team at sales@sheartak.com or toll-free at 1-877-417-4327 to confirm specifications and verify compatibility before your order ships.
