Hinge Boring Bits for Cabinet Doors and Boring Machines
Sheartak hinge boring bits are carbide-tipped boring tools in 15mm and 35mm diameters for cabinet door hinge installation, boring machines, and drill presses. Built for production cabinet and furniture shops across the US and Canada, each hinge boring bit delivers a clean flat-bottom cup hole in solid wood, MDF, melamine-faced panel, and veneered plywood with no tear-out.
What Is a Hinge Boring Bit?
A hinge boring bit is a specialized carbide-tipped drill bit designed to cut a precise flat-bottom cup hole in a cabinet door or panel for hinge installation. It differs from a standard twist bit or Forstner bit in its geometry and machine compatibility.
How Hinge Boring Bits Create Clean Cup Holes

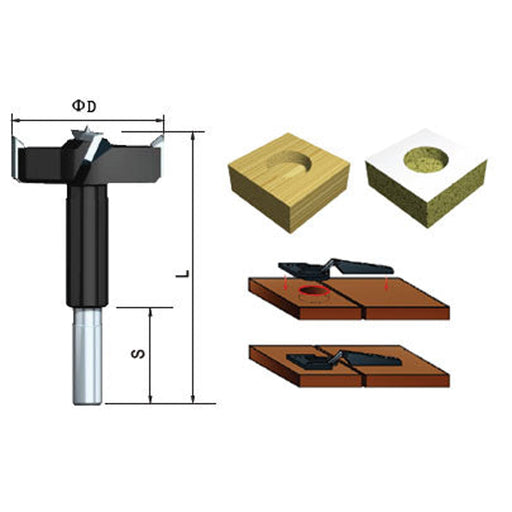

A hinge boring bit uses three cutting elements working together: a centering point that guides entry without wandering, two carbide spurs that shear the wood grain cleanly around the hole perimeter, and main cutting edges that remove material to produce a flat bottom.
This geometry creates a hole with a smooth wall, clean entry edge, and perfectly flat bottom. The flat bottom is essential for the hinge cup to seat flush and the door to hang correctly without rocking.
35mm Hinge Boring Bits for European Concealed Hinges
35mm is the universal cup diameter for virtually all European-style concealed hinges, including Blum, Grass, Salice, Hettich, and Hafele. The 35mm hinge boring bit cuts the cup hole to the correct diameter and flat-bottom depth for these hinges to seat and function properly.
Any cabinet shop or installer working with Euro-style hinges needs a reliable 35mm hinge boring bit. Consistent hole quality across every door in a production run is critical to achieving uniform door alignment after installation.
15mm Hinge Boring Bits for Hardware and System Holes
The 15mm hinge boring bit is used for smaller hardware holes, system connection points, and specialty blind holes in cabinet construction where a flat-bottom bore smaller than the 35mm cup is required.
Common applications include hinge plate pilot bores, furniture connector holes, and shallow blind holes for hardware inserts. The same carbide geometry and flat-bottom result apply at the smaller diameter.
Performance Benefits of Carbide-Tipped Hinge Boring Bits
Carbide-tipped hinge boring bits are the production standard for cabinet and furniture manufacturing because they deliver consistent hole quality, long tool life, and reliable performance on all cabinet panel materials.
Clean, Flat-Bottom Holes With No Tear-Out
The carbide spurs on a hinge boring bit shear the wood grain cleanly at the entry perimeter before the main cutting edges engage. This two-step cutting action prevents the fiber pullout and torn edges that a standard twist bit or worn bit leaves behind.
On melamine-faced particleboard and veneered panels, where surface tear-out is visible on the finished door face, a sharp carbide hinge boring bit produces a hole with a clean perimeter and smooth walls that requires no secondary cleanup.
Consistent Performance on All Cabinet Panel Materials
Sheartak carbide-tipped hinge boring bits cut cleanly in solid wood, MDF, particleboard, melamine-faced panel, and veneered plywood, covering the full range of materials used in kitchen cabinet and furniture production.
MDF and melamine-faced panels are particularly abrasive on cutting edges. Carbide-tipped hinge boring bits maintain their cutting geometry across a full production run on these materials where HSS alternatives lose sharpness quickly.
Long Tool Life in Production Environments
In a production cabinet shop boring hinge cups into dozens or hundreds of doors per shift, consistent tool life is a scheduling requirement, not just a cost consideration.
Sheartak hinge boring bits are manufactured with high-grade tungsten carbide ground to tight tolerances, maintaining performance across full production batches and reducing mid-run tooling changes.
Carbide-tipped hinge boring bits deliver clean flat-bottom cup holes, consistent performance on all panel materials, and production-grade tool life, making them the standard choice for professional cabinet manufacturing.
Applications: Where Hinge Boring Bits Are Used
Hinge boring bits serve applications across professional cabinet production, furniture manufacturing, and DIY cabinetry wherever a precise flat-bottom cup hole is required for hinge or hardware installation.
Cabinet Door Hinge Installation: European Concealed Hinges
Kitchen cabinets, bathroom vanities, closet systems, and built-in furniture all rely on European-style concealed hinges that require a 35mm cup hole bored to a precise depth in the door.
A sharp 35mm hinge boring bit produces the correct cup geometry for Blum, Grass, Salice, and other major hinge brands every time, ensuring the hinge seats flush and the door aligns correctly on the frame.
Hinge Boring Machines and Multi-Spindle Boring Centers
In production cabinet shops, hinge boring bits run in dedicated hinge boring machines or multi-spindle boring centers. The 10mm shank with flat land and adjustable top screw is the industry-standard configuration for these machine chucks.
For dowel boring operations running on the same boring machine alongside hinge boring, browse the Sheartak dowel drill bits collection for compatible 10mm-shank carbide bits.
Drill Presses and Handheld Drill Applications
Cabinet makers and installers without a dedicated hinge boring machine can use a 35mm hinge boring bit in a drill press or handheld drill with a depth stop collar for consistent cup hole depth.
The centering point prevents wandering on entry, which is particularly important when boring freehand or with a jig on finished door panels where repositioning is not an option.
How to Choose the Right Hinge Boring Bit
Selecting the correct hinge boring bit requires confirming three variables: cup diameter, overall length, and rotation direction. Matching all three to your machine and hinge specification ensures the bit performs correctly from the first hole.
Step 1: Choose the Correct Cup Diameter
35mm is the correct diameter for virtually all European concealed hinges. If you are installing Blum, Grass, Salice, Hettich, Hafele, or any other major brand of concealed hinge, a 35mm hinge boring bit is the right choice.
15mm is the correct diameter for smaller hardware bores, system connection holes, and specialty blind holes in cabinet construction. Check your hinge or hardware specification sheet to confirm the required cup diameter before ordering.
Step 2: Match the OAL to Your Machine or Drill
57mm OAL suits hinge boring machines with shorter spindle travel. 70mm OAL is used in machines requiring a longer reach to clear the chuck body, and is also the standard length for drill press and handheld drill applications with a depth stop.
Sheartak stocks the 70mm OAL for both the 15mm and 35mm hinge boring bits, covering the most common boring machine and drill press setups used in North American cabinet production.
Step 3: Confirm Shank Size and Rotation
Right-hand rotation is the standard for hinge boring bits in most boring machines and drill presses. The 10mm cylindrical shank with flat land and adjustable top screw fits most boring machine chuck systems. For related carbide tooling including replacement inserts, browse the Sheartak carbide inserts collection.
Why Professional Cabinet Shops Choose Sheartak Hinge Boring Bits
Sheartak has supplied industrial-grade cutting tools to professional woodworking and metalworking shops across Canada and the US for over 16 years, operating as a family-owned business from Waterloo, Ontario.
Industrial-Grade Carbide Construction
Every Sheartak hinge boring bit is carbide-tipped and precision-ground to tight dimensional tolerances. The carbide grade and spur geometry are selected for the demands of production boring in solid wood, MDF, melamine-faced panel, and composite materials.
Bits are produced to consistent specifications batch to batch, so shops can expect the same hole quality when restocking as from bits already proven in their production setup.
15mm and 35mm Diameters Stocked and Ready to Ship
Both standard hinge boring diameters are stocked and ready to ship from Waterloo, Ontario, with delivery to US addresses typically within three to five business days.
For cabinet shops restocking tooling for a full production run, fast availability eliminates the extended lead times common with imported tooling from overseas suppliers.
Direct Technical Support from a Family-Operated Specialist
Technical questions about hinge boring bit specification, machine compatibility, or carbide grade are answered directly by the Sheartak product team. Reach the team at sales@sheartak.com or toll-free at 1-877-417-4327. Verified feedback from professional shops across North America is available on the Sheartak testimonials page.
Frequently Asked Questions About Hinge Boring Bits
Common technical and purchasing questions from cabinet makers and woodworkers before ordering hinge boring bits from Sheartak.
What diameter hinge boring bit do I need for European concealed hinges?
35mm is the standard cup diameter for virtually all European concealed hinges from Blum, Grass, Salice, Hettich, and Hafele. Confirm the required diameter in your hinge installation instructions before ordering.
Can Sheartak hinge boring bits be used in a handheld drill?
Yes. The 70mm OAL hinge boring bit works in a handheld drill or drill press with a depth stop collar. Use a jig for accurate positioning when boring freehand.
What is the difference between a 15mm and a 35mm hinge boring bit?
35mm is for European concealed hinge cup holes. 15mm is for smaller hardware bores and system holes. Both use the same carbide-tipped flat-bottom geometry.
Do Sheartak hinge boring bits work with Blum and Grass hinges?
Yes. Sheartak 35mm hinge boring bits produce the standard cup hole required for Blum, Grass, Salice, and other major European concealed hinge brands.
What shank size do Sheartak hinge boring bits use?
Sheartak hinge boring bits use a 10mm cylindrical shank with a drive flat and adjustable top screw, the industry standard for most hinge boring machines and boring centers.
Get the Right Hinge Boring Bit for Your Application
Whether you are boring 35mm hinge cups for European concealed hinges or sourcing 15mm hinge boring bits for hardware holes, Sheartak supplies carbide-tipped precision tooling in both diameters for boring machines and drill presses. Contact the team at sales@sheartak.com or toll-free at 1-877-417-4327 to confirm the right specification for your machine and production requirements.
