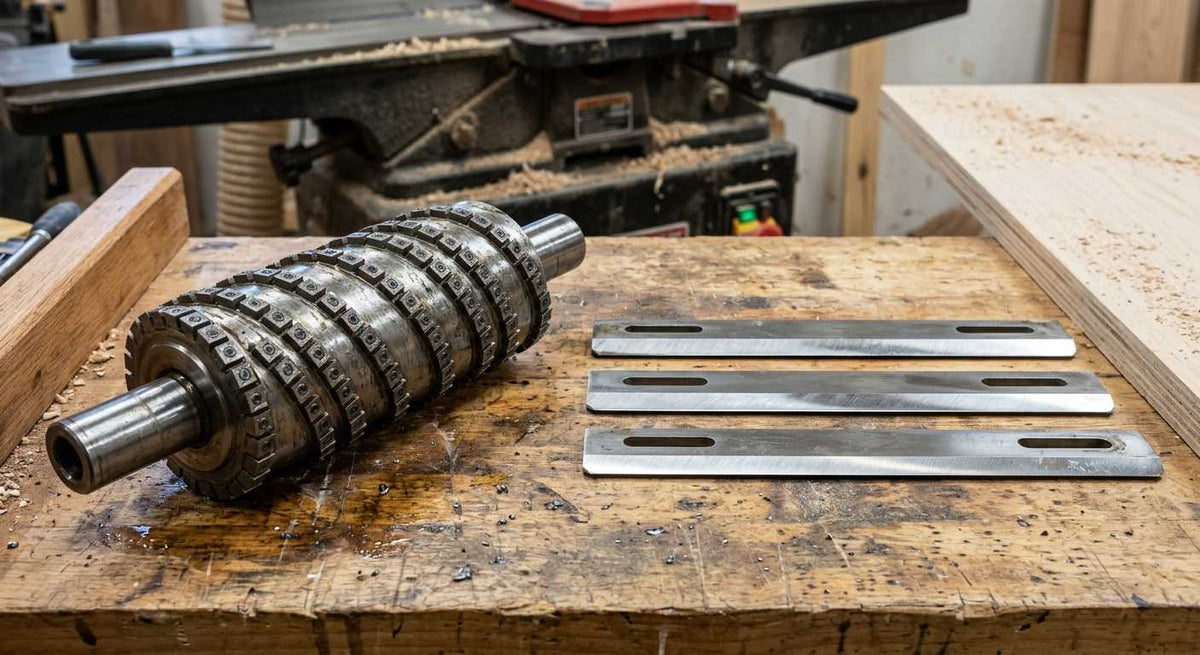

Spiral Cutterhead vs Straight Knives: An Honest Comparison for Woodworkers

A spiral cutterhead uses rows of small carbide inserts arranged helically around the head to create a shear cut, reducing tear-out and noise compared to straight knives. Straight knife cutterheads use two to four full-width HSS blades. Spiral cutterheads cost more upfront but deliver significantly longer edge life, quieter operation, and noticeably better results on figured or difficult grain.

The spiral cutterhead vs straight knives debate shows up in every woodworking forum, and the answers range from "best upgrade I ever made" to "not worth the money for my shop." Both camps are right - for different woodworkers. This guide covers how each cutterhead works, where the real differences lie in the spiral cutterhead vs straight knives comparison, and when the upgrade actually makes sense for your situation.

How Each Cutterhead Actually Works

Understanding the spiral cutterhead vs straight knives difference starts with the mechanics. Both cutterhead types do the same job: a rotating cylinder holds cutting edges that shave material from the board surface as it feeds through the machine. The fundamental difference is in how those cutting edges are arranged and how they contact the wood - and that difference drives every practical outcome you care about.

Straight Knife Cutterhead Mechanics

A straight knife cutterhead carries two to four full-width blades running the complete width of the machine. Each blade is made from high-speed steel and is set into the cutterhead body so its edge projects slightly beyond the cylinder diameter. As the head rotates, each blade strikes the board surface simultaneously across its full width, taking a wide arc-shaped slice. The attack angle is relatively high - typically 35 to 45 degrees - which is efficient for removing material but aggressive on the wood fiber. When every point along the blade edge contacts the wood at the same moment, the impact load on the board is significant, which is why straight knives struggle on reversing or interlocked grain.

Spiral Cutterhead Mechanics

A spiral cutterhead replaces those long blades with rows of small square carbide inserts arranged in a helical pattern around the cylinder. Instead of one long blade striking across the full board width simultaneously, each small insert contacts the wood in a staggered sequence as the head rotates. Critically, each insert is angled at approximately 15 degrees relative to the board face. This shear angle means the insert slices across the wood fiber rather than chopping into it head-on. The load on any single point of the board at any given moment is a fraction of what a straight knife delivers, and the slicing action severs fibers cleanly rather than levering them upward.

For a technical explanation of what shear cutting means at the fiber level, see What Is a Shear Cut and Why Does It Matter.

Surface Finish - Where the Real Difference Shows Up

Surface finish is the most cited reason for choosing a spiral cutterhead vs straight knives, and the honest answer depends heavily on what wood you are running. The comparison looks very different on clear pine than it does on curly maple.

Straight Grain and Common Hardwoods

On straight-grained boards - oak, maple, walnut, and most softwoods with consistent grain direction - a sharp set of straight knives produces a surface that is very close in quality to what a spiral cutterhead delivers. With proper feed rate, a shallow final pass, and sharp blades, the difference is minimal and both surfaces need light sanding before finish. If this describes most of your work, the surface quality argument alone may not justify the upgrade cost.

Figured Wood, Reversing Grain, and Difficult Species

On figured wood, the comparison shifts dramatically. Curly maple, birdseye, quilted walnut, and any board with interlocked or reversing grain presents a fundamental problem for straight knives: no single feed direction keeps the blade cutting with the grain across the full board width. Some portion of every pass is cutting against the grain somewhere, and the high attack angle of the straight knife levers those fibers upward rather than severing them. The result is tear-out that requires either heavy sanding or a card scraper to fix, and even then recurrence is guaranteed on the next pass.

A spiral cutterhead handles reversing grain far better because the shear angle reduces the force that lifts fibers. The staggered insert contact also means each insert is only engaged with a narrow strip of the board, limiting damage if it does cut against the grain at one point. Woodworkers who regularly plane figured hardwoods consistently find that the spiral cutterhead vs straight knives comparison is decisive in favor of the spiral for this work - not marginal.

For techniques that reduce tear-out regardless of cutterhead type, see How to Eliminate Tear-Out When Planing Hardwood.

Noise Reduction - More Significant Than Most Expect

Noise reduction is the benefit most woodworkers underestimate before they switch from straight knives to a spiral cutterhead - and most appreciate immediately after. In the spiral cutterhead vs straight knives comparison, noise is one area where the advantage is consistent regardless of wood species. Straight knives are loud because the full-width blade strikes the wood simultaneously across the entire board, creating a sharp, high-frequency impact sound with every revolution. A spiral cutterhead eliminates that simultaneous full-width contact. Because inserts engage the wood in a staggered sequence, there is always at least one insert in the cut - the sound becomes a continuous low hum rather than a staccato chop.

The practical reduction is significant. Manufacturers report 10 to 13 decibels of reduction with spiral or helical heads compared to equivalent straight knife machines. A 10 dB reduction cuts the perceived loudness approximately in half. For woodworkers running their machines for extended sessions, the fatigue difference over a day of planing is noticeable. This benefit applies equally regardless of what wood species you are running, which is why it often becomes the most appreciated advantage even for woodworkers who bought the upgrade primarily for surface quality.

Blade Life and Maintenance

Maintenance is where the spiral cutterhead vs straight knives comparison most clearly favors the spiral for high-use shops - and where the calculation changes for occasional users.

Straight Knives - Setup, Sharpening, and Replacement

Setting straight knives correctly requires a dial indicator, patience, and practice. Each knife must be set to exactly the same height above the cutterhead body - a difference of 0.005 inches between knives is enough to produce visible planer lines. Getting this right takes 20 to 40 minutes for a practiced woodworker and considerably longer for someone new to the process. When knives nick from contact with a hidden nail or a particularly abrasive board, the entire set typically needs attention - either a lateral shift to hide the nick, or removal and replacement. Sharpening requires either a professional service or a dedicated jig, both adding cost and downtime.

Carbide Inserts - Rotate, Not Sharpen

Carbide inserts on a spiral cutterhead are maintained by rotation, not sharpening. Each insert has four cutting edges. When one edge dulls or nicks, you loosen the mounting screw, rotate the insert 90 degrees to a fresh edge, and retighten. The process takes seconds per insert. Because carbide holds an edge 10 to 15 times longer than high-speed steel under equivalent conditions, most woodworkers go months between any maintenance at all. When an insert does need attention, only the affected insert is touched - the rest of the head continues performing at full quality. There are no height settings to verify and no alignment checks required.

The long-term cost comparison in the spiral cutterhead vs straight knives decision favors the spiral for moderate to heavy users. A professional sharpening service for a three-knife set runs $30 to $60 per sharpening, needed every 50 to 150 board feet of hardwood. A carbide insert costs $3 to $5 individually and lasts many times longer before needing rotation - and rotation is free. Over two to three years of regular use, the maintenance cost advantage of the spiral cutterhead is real, though it rarely fully offsets the upfront retrofit cost on its own.

For guidance on when and how to replace carbide inserts on spiral and helical heads, see When and How to Replace Carbide Inserts.

The Honest Trade-offs - What Spiral Cutterheads Do Not Do Better

Every comparison article on spiral cutterhead vs straight knives tends to read like a product brochure. The reality is that straight knives have genuine advantages in some situations, and being honest about the trade-offs is more useful than a one-sided pitch.

Upfront cost is the clearest disadvantage of the spiral cutterhead. Retrofit kits for benchtop planers typically run $300 to $500, and for larger cabinet machines or jointers the cost can reach $700 or more. For a woodworker who works primarily with straight-grained softwood or does light weekend projects, that investment is difficult to justify on performance grounds alone.

Ridging is a real issue that most spiral cutterhead advocates skip over. Because each insert is a small, discrete piece rather than a continuous blade, if any insert is seated fractionally higher than its neighbors it can leave a faint ridge line on the board surface. A properly maintained head with inserts all at consistent height does not have this problem, but it requires attention when rotating or replacing inserts. Straight knives, when set correctly, produce a more continuous cutting arc that is less susceptible to this specific defect.

Motor load is marginally higher with spiral cutterheads on some machines, particularly smaller benchtop models. The increased contact area and the geometry of the shear cut require slightly more power per pass than an equivalent depth of cut with sharp straight knives. On machines with minimal horsepower headroom, this can require taking slightly shallower passes than before the upgrade.

Who Should Upgrade - and Who Should Not

The spiral cutterhead vs straight knives decision comes down to your actual shop usage, not the best-case scenario described in most upgrade guides. Understanding where the spiral cutterhead vs straight knives trade-off lands for your specific work is the only calculation that matters. Here is an honest framework for both sides.

The Upgrade Makes Sense If...

You regularly work with figured hardwoods, interlocked grain, or species that tear out consistently with straight knives. You spend significant time setting and resetting knives after nicks or edge wear, and the process frustrates more than it educates. You plane for extended sessions and the noise level of your straight knife machine is a real issue for your ears or your shop environment. You are a moderate to heavy user - meaning you run the planer or jointer multiple times per week - so the carbide longevity advantage compounds meaningfully over time. Or you simply want a machine you can load up and run without thinking about knife height every session.

Straight Knives May Be Fine If...

Most of your work is softwood, construction lumber, or straight-grained hardwood where surface finish differences between straight knives and spiral are minimal. You use your planer or jointer infrequently - a few times per month or less - so the maintenance savings of carbide inserts do not add up to much. Your budget is constrained and that $300 to $500 is better invested in other shop tooling. Or you are dimensioning rather than finish planing, where surface quality after the machine matters less than throughput.

Browse Sheartak's Spiral Cutter Heads to find retrofit options for your specific planer or jointer model.

For a full guide on maximizing surface quality from any cutterhead type, see How to Get a Smooth Finish from Your Wood Planer.

Frequently Asked Questions

Is a spiral cutterhead worth the upgrade?

For woodworkers who regularly plane figured hardwoods or run their machines heavily, the spiral cutterhead vs straight knives upgrade is worth it. For light users doing mostly softwood or straight-grained lumber, straight knives may be sufficient and the cost is harder to justify.

What is the difference between spiral and helical cutterheads?

Spiral cutterheads arrange inserts in a spiral pattern with each insert perpendicular to the board face. Helical cutterheads arrange inserts in a helix with each insert angled to the board face, creating a more pronounced shear cut. Both use carbide inserts and both outperform straight knives for difficult grain.

How long do carbide inserts last compared to straight knives?

Carbide inserts last approximately 10 to 15 times longer than HSS straight knives under equivalent use. Each insert has four usable edges before replacement, and rotation takes seconds compared to a full knife-setting session.

Does a spiral cutterhead completely eliminate tear-out?

No - the spiral cutterhead vs straight knives difference on tear-out is dramatic but not absolute. Some tear-out can still occur on extreme reversing grain at aggressive depths. Light passes and correct grain direction remain important regardless of cutterhead type.

Can I retrofit a spiral cutterhead to my existing planer or jointer?

For most major brands - DeWalt, Powermatic, Jet, Grizzly, Delta, and others - retrofit kits are available. Installation is mechanical and requires no special tools beyond basic hand tools and a few hours of time.

Does a spiral cutterhead require more power than straight knives?

Marginally, on some machines. The increased insert contact area requires slightly more motor engagement per pass. On underpowered benchtop planers this may mean taking slightly shallower cuts after the spiral cutterhead vs straight knives upgrade.

What wood species benefit most from a spiral cutterhead?

Figured maple, birdseye maple, quilted walnut, wenge, sapele, and any species with reversing or interlocked grain. These are the species where the spiral cutterhead vs straight knives difference is most decisive.

Final Thoughts

The spiral cutterhead vs straight knives comparison is not a universal verdict - it is a shop-specific calculation. For woodworkers who spend real time fighting figured grain, resetting nicked blades, or wearing hearing protection through long sessions, the spiral upgrade pays for itself in reduced frustration well before the carbide cost math catches up. For occasional users working clean softwood, sharp straight knives remain a perfectly capable choice. Knowing which side of that line your work falls on is the whole decision.
