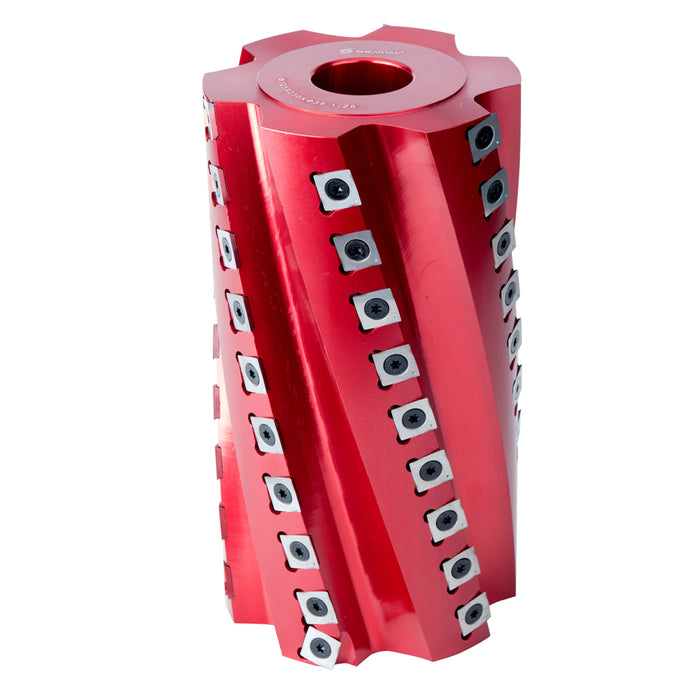

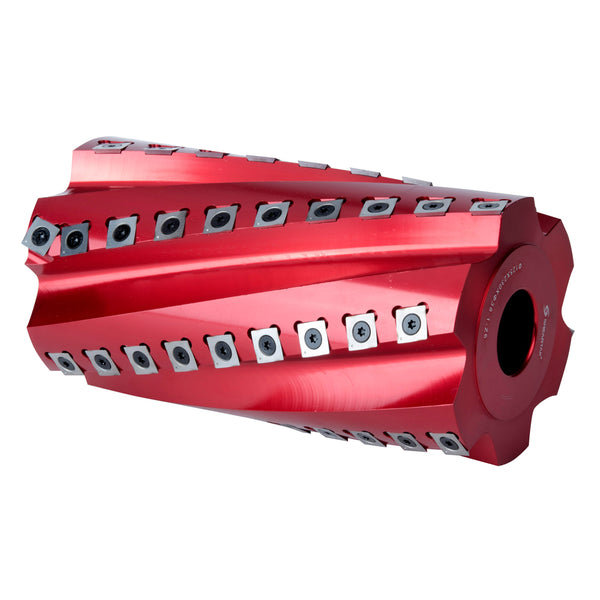

Spiral Moulder Head 125mm ODx200mm CLx40mm Bore 6 wings with 51 carbide inserts.
Sheartak spiral cutterheads are designed to make continuous contact with the material's surface in a staggered helical way. This innovative design results in reduced cutting noise, with a typical decrease of up to 20decibels. The durable carbide knives have four edges, allowing for 50 times longer blade use. These cutter heads are ideal for improving material finishes even on wood of highly figured grain, reducing long-term tooling costs, and eliminating sharpening expenses and afterword sanding work. The molder spiral heads are specially designed with radius edge inserts set at a shear angle to prevent knife corners from scratching the material. Sheartak spiral cutterheads are constructed from high-strength aircraft aluminum, which is hard anodized to create a strong, lightweight cutterhead. They are dynamically balanced to operate at up to 8,000 rpm. Each head comes with a set of carbide knives pre-installed and ready to use, a torx wrench for easy knife turning and replacement. Sheartak spiral cutterheads are equipped with standard-sized carbide inserts that are readily available online at reasonable prices.
Specifications:
* 125mm cutting circle
* 200mm cutting length
* 40mm bore
* Use on spindle molder, 4 side molder
* For cutting softwood, hardwood, and man-made boards
* Hard aluminum body, color oxidized
* 51 knives on 6 spirals
* Carbide Knives size: 15x15x2.5mm R150 (curved edge)
* M6x1 screws
* T20 Torx head wrenches
* Shipping Weight: 6.77kg
Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.
Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.
Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.
What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
