Main Functions:
- 200 points auxiliary zero position function.
- Function of function calculator.
- Power off memory function.
- Non-linear error compensation.
- Communication function.
- Function of time display.
- Metric/Inch switching display.
- Mid-split function.
- AB function.
- Lengthened linear encoder function.
- Software diagnosis function.
Other Machining Functions:
- PCD hole positioning on circumference (for milling machine and boring machine).
- Oblique line drilling (for milling machine and boring machine).
- Chambering (for milling machine and boring machine).
- Cutter compensation function (for milling machine).
- Machining of oblique plane (for milling machine).
- Smooth R function (for milling machine).
- 200 cutters database (for lathe).
- Display of radius/diameter switching (for lathe).
- Taper function (for lathe).
- Tremble avoidance function (for grinding machine).
- EDM machining function (for EDM).
- PCD function (for EDM).
- Even positioning function (for slotting machine).
- Universal positioning function (for slotting machine).
- Setting slotting parameter (for slotting machine).

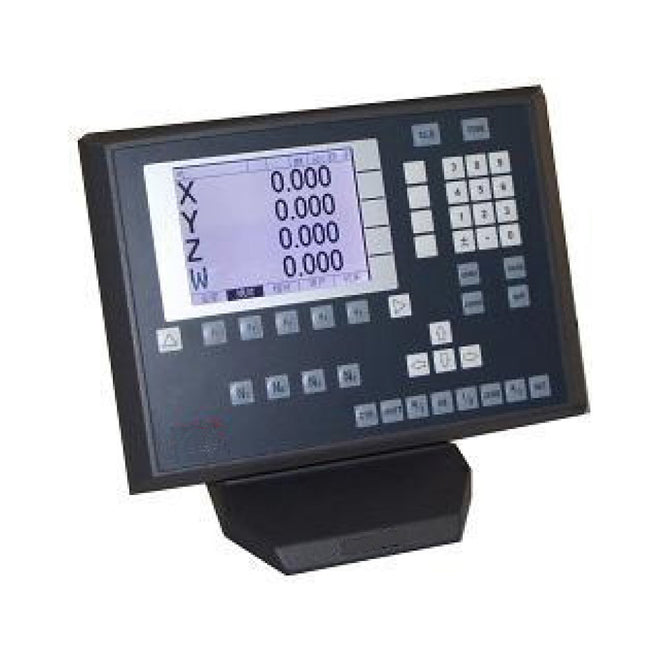

The DRO adopts 32 bits embedded computing technology, 320×240 5.6” LCD screen in Chinese and English. Up to 4 axes, XY-W-axis can select linear or rotary encoder. The rotary encoder has two display modes for degrees, minutes, and seconds, and for degree only. It has a large hard disk capacity for high-speed data transfer with a PC via a USB interface. It has non-linear compensation of up to 600 points for each coordinate, can make comparative measurements through a dual-frequency laser tester, and save the comparative values in the DRO for mirror image data processing as to minimize the correctional error. Path simulation function is also provided in DRO. It is widely used on Milling machines, Precision coordinate Boring machines, ground Boring machines, Precision Boring machines, Precision grinding machines, lathes, EDMs, etc.
Order No. 905-8020
Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.
Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.
Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.
What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
