SKU 434-0101
Sold out
Original price $160.00 - Original price $160.00
Original price
$160.00
$160.00 - $160.00
Current price $160.00
Size: BT30-JT1-45
Request a quote
Cancellation policy

Cancel for any reason at any time until your order shipped. Please be aware that banks charge for each payment transaction, so we will deduct these fees from the refunded amount. Once your order has shipped, you may return your order. For details, please review our Returns and Cancellations policies. Special order items may not be eligible for cancellation.

Return Policy

Most items can be returned within 30 days of receipt for a refund of the product cost less return shipping. Shipping, duties, and taxes are not refundable. For details, please review our Returns and Cancellations policies.

International Shipping

The product price and shipping and handling cost do not include import duties, taxes, or brokerage fees. As the transportation fee for your order is the only fee we charge, it is the buyer's responsibility to pay for these charges. We recommend that you contact your country's customs office or visit their website to determine if there will be any additional costs.

The Harmonized Tariff Schedule (HS code) for spiral cutterheads and other woodworking tools is 8466.92.50.10.

Features:

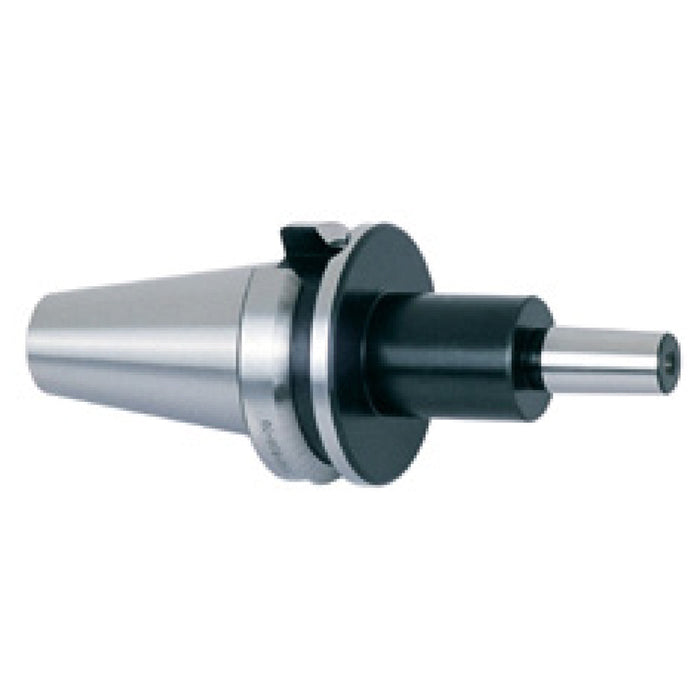

  • The drill chuck arbor is perfect for connecting drilling tools to machine spindles.
  • Features a BT taper.
  • Durable and high-precision.
  • Comes in a variety of sizes.

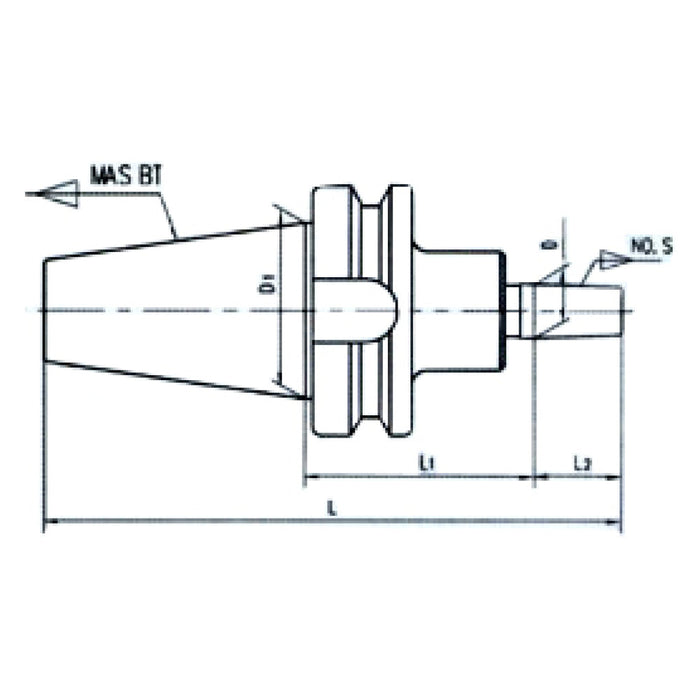

Order No. Size L2 L D D1 Drawbar thread Wt(kg)
434-0101 BT30-JT1-45 16.669 110 9.754 31.75 M12 0.6
434-0102 BT30-JT2-45 22.225 115.6 14.199 31.75 M12 0.7
434-0103 BT30-JT2S-45 19.05 112.4 13.94 31.75 M12 0.7
434-0104 BT30-JT3-45 30.956 124.4 20.599 31.75 M12 0.8
434-0105 BT30-JT4-45 42.069 135.4 28.55 31.75 M12 0.85
434-0106 BT30-JT5-45 47.625 141 35.89 31.75 M12 0.9
434-0107 BT30-JT6-45 25.4 118.8 17.17 31.75 M12 0.75
434-0108 BT30-JT33-40 25.4 113.8 15.85 31.75 M12 0.75
434-0109 BT30-JT33-45 25.4 118.8 15.85 31.75 M12 0.75
434-0110 BT30-B10-45 14.5 107.9 10.094 31.75 M12 0.6
434-0111 BT30-B12-45 18.5 111.9 12.065 31.75 M12 0.6
434-0112 BT30-B16-45 24 117.4 15.733 31.75 M12 0.7
434-0113 BT30-B18-45 32 125.4 17.78 31.75 M12 0.82
434-0114 BT40-JT1-45 16.669 127.1 9.754 44.45 M16 1.16
434-0115 BT40-JT2-45 22.225 132.6 14.199 44.45 M16 1.25
434-0116 BT40-JT2S-45 19.05 129.4 13.94 44.45 M16 1.2
434-0117 BT40-JT3-45 30.956 141.4 20.599 44.45 M16 1.45
434-0118 BT40-JT4-45 42.069 152.5 28.55 44.45 M16 1.55
434-0119 BT40-JT5-45 47.625 158 35.89 44.45 M16 1.6
434-0120 BT40-JT6-45 25.4 135.8 17.17 44.45 M16 1.3
434-0121 BT40-JT33-45 25.4 135.8 15.85 44.45 M16 1.3
434-0122 BT40-B10-45 14.5 124.9 10.094 44.45 M16 1.4
434-0123 BT40-B10-120 14.5 199.9 10.094 44.45 M16 1.76
434-0124 BT40-B12-45 18.5 128.9 12.065 44.45 M16 1.34
434-0125 BT40-B16-32 24 121.4 15.733 44.45 M16 1.4
434-0126 BT40-B16-45 24 134.4 15.733 44.45 M16 1.45
434-0127 BT40-B16-75 24 164.4 15.733 44.45 M16 1.55
434-0128 BT40-B16-90 24 179.4 15.733 44.45 M16 1.4
434-0129 BT40-B18-45 32 142.4 17.78 44.45 M16 1.7
434-0130 BT40-B18-75 32 172.4 17.78 44.45 M16 1.76
434-0131 BT45-B16-90 24 196.8 15.733 51.75 M20 2.3
434-0132 BT45-B16-100 24 206.8 15.733 51.75 M20 2.4
434-0133 BT50-JT1-45 16.669 163.5 9.754 69.85 M24 3.6
434-0134 BT50-JT2-45 22.225 169 14.199 69.85 M24 3.95
434-0135 BT50-JT2S-45 19.05 165.9 13.94 69.85 M24 3.9
434-0136 BT50-JT3-45 30.956 177.8 20.599 69.85 M24 3.7
434-0137 BT50-JT4-45 42.069 188.9 28.55 69.85 M24 3.75
434-0138 BT50-JT5-45 47.625 194.4 35.89 69.85 M24 3.8
434-0139 BT50-JT6-45 25.4 172.2 17.17 69.85 M24 4
434-0140 BT50-JT33-45 25.4 172.2 15.85 69.85 M24 4
434-0141 BT50-B10-45 14.5 161.3 10.094 69.85 M24 3.6
434-0142 BT50-B10-100 14.5 216.3 10.094 69.85 M24 3.8
434-0143 BT50-B12-45 18.5 165.3 12.065 69.85 M24 3.6
434-0144 BT50-B16-45 24 170.8 15.733 69.85 M24 3.65
434-0145 BT50-B16-60 24 185.8 15.733 69.85 M24 3.7
434-0146 BT50-B16-75 24 200.8 15.733 69.85 M24 3.74
434-0147 BT50-B16-90 24 215.8 15.733 69.85 M24 3.78
434-0148 BT50-B18-45 32 178.8 17.78 69.85 M24 3.7
