BT Shell Mill Arbor

Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
SKU 434-0001
Sold out
Original price $160.00 - Original price $160.00
Original price
$160.00
$160.00 - $160.00
Current price $160.00
Size: BT30x16mm-60
Request a quote
Cancellation policy

Cancel for any reason at any time until your order shipped. Please be aware that banks charge for each payment transaction, so we will deduct these fees from the refunded amount. Once your order has shipped, you may return your order. For details, please review our Returns and Cancellations policies. Special order items may not be eligible for cancellation.

Return Policy

Most items can be returned within 30 days of receipt for a refund of the product cost less return shipping. Shipping, duties, and taxes are not refundable. For details, please review our Returns and Cancellations policies.

International Shipping

The product price and shipping and handling cost do not include import duties, taxes, or brokerage fees. As the transportation fee for your order is the only fee we charge, it is the buyer's responsibility to pay for these charges. We recommend that you contact your country's customs office or visit their website to determine if there will be any additional costs.

The Harmonized Tariff Schedule (HS code) for spiral cutterheads and other woodworking tools is 8466.92.50.10.

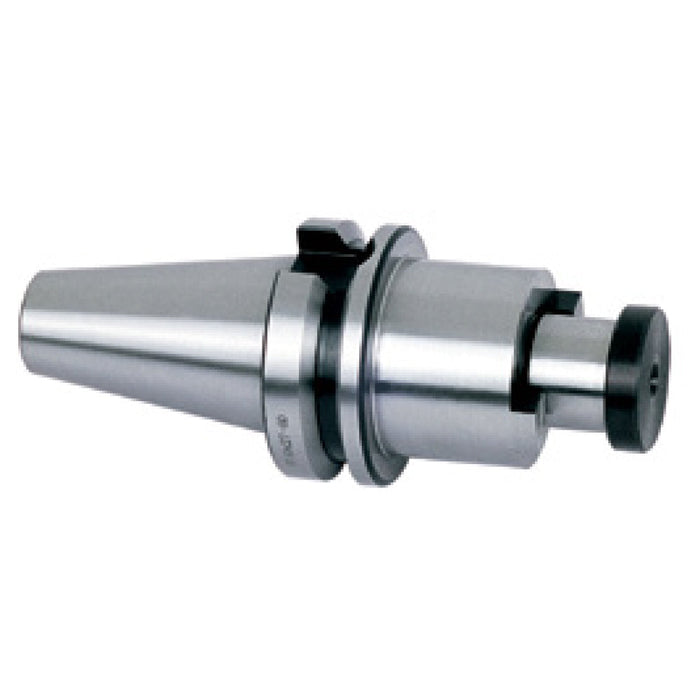

Features:

  • The shell mill arbor is perfect for connecting milling tools to machine spindles.
  • Features a BT taper.
  • Durable and high-precision.
  • Comes in a variety of sizes.

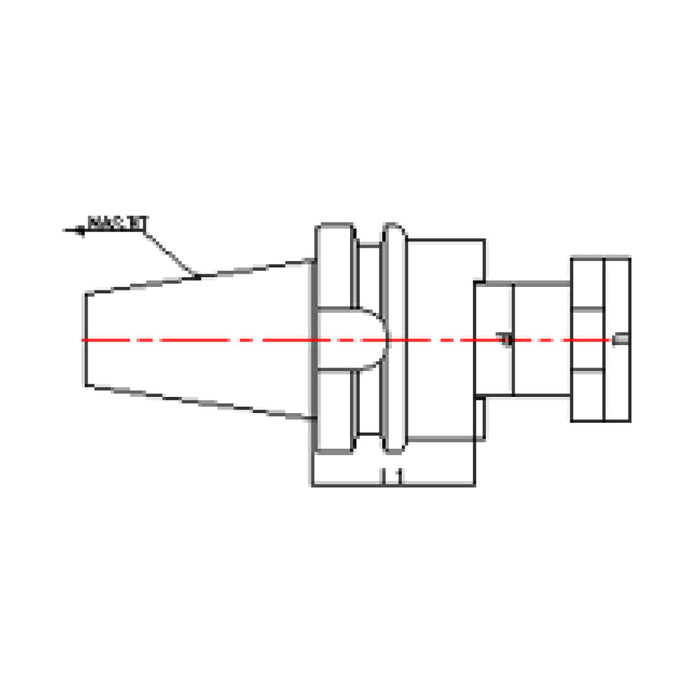

Order No. Size D (mm) Wt(kg) Order No. Size D (mm) Wt(kg)
434-0001 BT30x16mm-60 32 1 434-0026 BT45x22mm-60 40 2.6
434-0002 BT30x22mm-60 40 1.3 434-0027 BT45x27mm-60 48 2.8
434-0003 BT30x27mm-60 48 1.5 434-0028 BT45x27mm-100 48 3.1
434-0004 BT30x32mm-60 58 1.8 434-0029 BT45x40mm-100 70 3.4
434-0005 BT30x40mm-60 70 2.2 434-0030 BT45x40mm-105 70 3.5
434-0006 BT30x50mm-60 90 4.5 434-0031 BT50x16mm-60 32 3.6
434-0007 BT40x16mm-45 32 1 434-0032 BT50x16mm-75 32 3.9
434-0008 BT40x16mm-60 32 1.3 434-0033 BT50x16mm-120 32 4.3
434-0009 BT40x16mm-120 32 1.7 434-0034 BT50x22mm-60 40 5
434-0010 BT40x22mm-45 40 1.5 434-0035 BT50x22mm-75 40 4
434-0011 BT40x22mm-60 40 1.7 434-0036 BT50x22mm-100 40 4.5
434-0012 BT40x22mm-100 40 3 434-0037 BT50x22mm-120 40 5.5
434-0013 BT40x22mm-102 40 3.6 434-0038 BT50x27mm-60 48 5.5
434-0014 BT40x27mm-45 48 1.5 434-0039 BT50x27mm-105 48 4
434-0015 BT40x27mm-60 48 1.6 434-0040 BT50x32mm-60 58 4.5
434-0016 BT40x27mm-75 48 1.8 434-0041 BT50x32mm-75 58 1.6
434-0017 BT40x27mm-105 48 2.1 434-0042 BT50x32mm-105 58 1.8
434-0018 BT40x27mm-120 48 2.3 434-0043 BT50x40mm-60 70 2.2
434-0019 BT40x32mm-45 58 1.2 434-0044 BT50x40mm-75 70 3.6
434-0020 BT40x32mm-60 58 1.5 434-0045 BT50x40mm-90 70 3.7
434-0021 BT40x32mm-75 58 1.8 434-0046 BT50x40mm-100 70 3.75
434-0022 BT40x32mm-120 58 2.8 434-0047 BT50x40mm-105 70 3.8
434-0023 BT40x40mm-60 70 2 434-0048 BT50x50mm-60 90 4
434-0024 BT40x40mm-75 70 2.2 434-0049 BT50x50mm-70 90 4.2
434-0025 BT40x50mm-70 90 2.5 434-0050 BT50x50mm-120 90 4.4

Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.

Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.

Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.

What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
