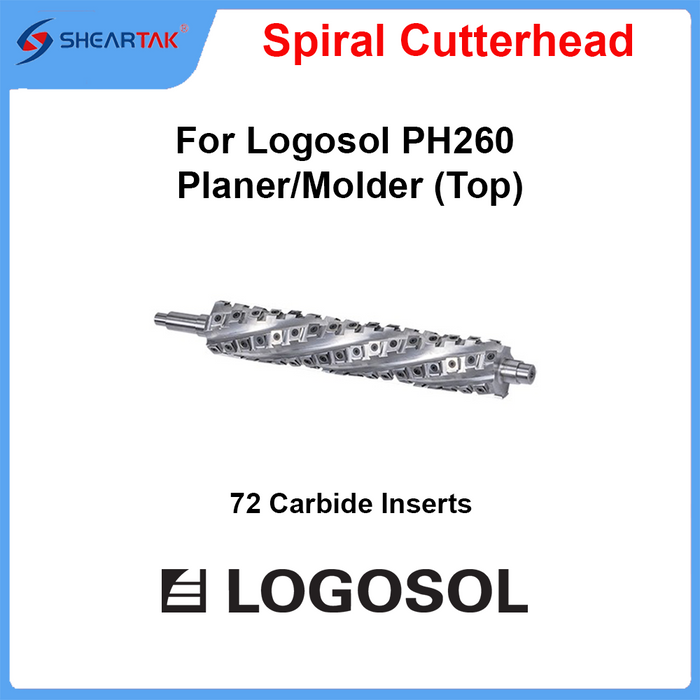

Sheartak Spiral Cutterhead for Logosol PH260 Four-Sided Planer/Moulder - Upper with 72 Carbide Cutters
Woodworkers are reaping the rewards of upgrading their old planers and jointers with spiral cutterheads, offering several advantages, such as:
-
Smoother Finish with No Tear-Out: Each knife is set at a slight angle to create a shear-cut, allowing boards to be planed in a staggered fashion. This results in a significantly better surface finish than a single straight cut. The combination of shear and staggered cuts eliminates tear-out, leaving a glossy finish even on highly figured hardwoods.
-
Dramatically Reduced Noise: The spiral cutterhead cuts with staggered knives, resulting in less noise compared to traditional methods.
-
Longer Lifespan: With a lifespan over 10 times longer than high-speed steel, the 15x15x2.5mm inserts are made from sintered tungsten carbide, which is far harder than high-speed steel. Each insert features four usable edges.
-
Ease of Use: The precision-ground knives are interchangeable with a tolerance of +/-0.0004" or +/-0.01mm. Simply loosen the screw, rotate the insert 90° to expose a fresh edge, and re-tighten the insert in minutes.
-
Easier Dust Extraction: The spiral cutterhead produces thinner, shorter chips, making dust extraction easier.
-
Cost-Effective: The spiral cutterhead provides a smoother finish, reduces or eliminates sanding, and doesn’t require sharpening, making it a wise investment that will quickly pay for itself.
Specifications:
-
Cutterblock Material: AISI 5140 high tensile strength alloy steel
-
Insert Material: Grade C3++ or K10
-
Carbide Insert Size: 15x15x2.5mm R150
-
Number of Inserts: 72
-
Number of Rows: 4
-
Wrench Size: Torx head T-type
Kit Includes:
Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.
Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.
Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.
What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
