Morse Taper Sleeve

Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
SKU 435-0585
Sold out
Original price $50.00 - Original price $50.00
Original price
$50.00
$50.00 - $50.00
Current price $50.00
Outside Taper - Inside Taper: MT2-MT1
Request a quote
Cancellation policy

Cancel for any reason at any time until your order shipped. Please be aware that banks charge for each payment transaction, so we will deduct these fees from the refunded amount. Once your order has shipped, you may return your order. For details, please review our Returns and Cancellations policies. Special order items may not be eligible for cancellation.

Return Policy

Most items can be returned within 30 days of receipt for a refund of the product cost less return shipping. Shipping, duties, and taxes are not refundable. For details, please review our Returns and Cancellations policies.

International Shipping

The product price and shipping and handling cost do not include import duties, taxes, or brokerage fees. As the transportation fee for your order is the only fee we charge, it is the buyer's responsibility to pay for these charges. We recommend that you contact your country's customs office or visit their website to determine if there will be any additional costs.

The Harmonized Tariff Schedule (HS code) for spiral cutterheads and other woodworking tools is 8466.92.50.10.

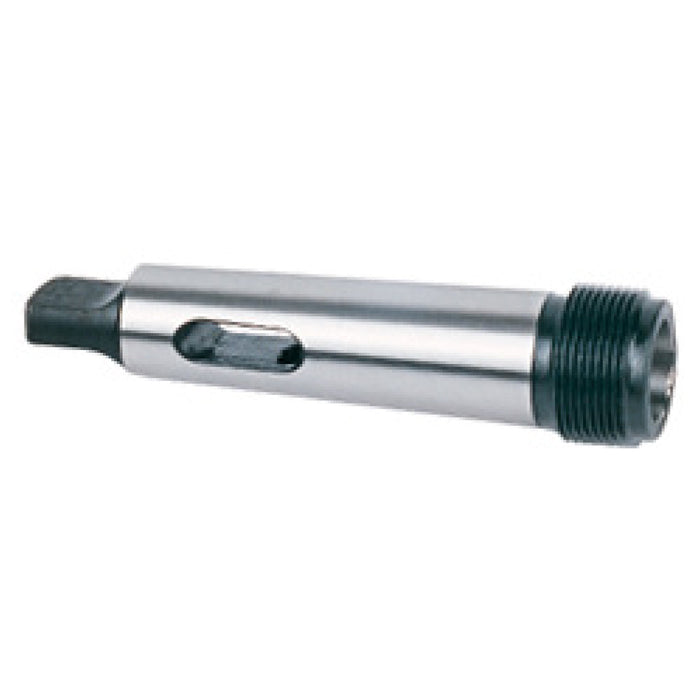

Features:

  • The sleeve features a Morse taper, allowing for the connection between a variety of tool bits.
  • Durable and precise.
  • Features a threaded end, allowing for a greater range of connection with other tools.

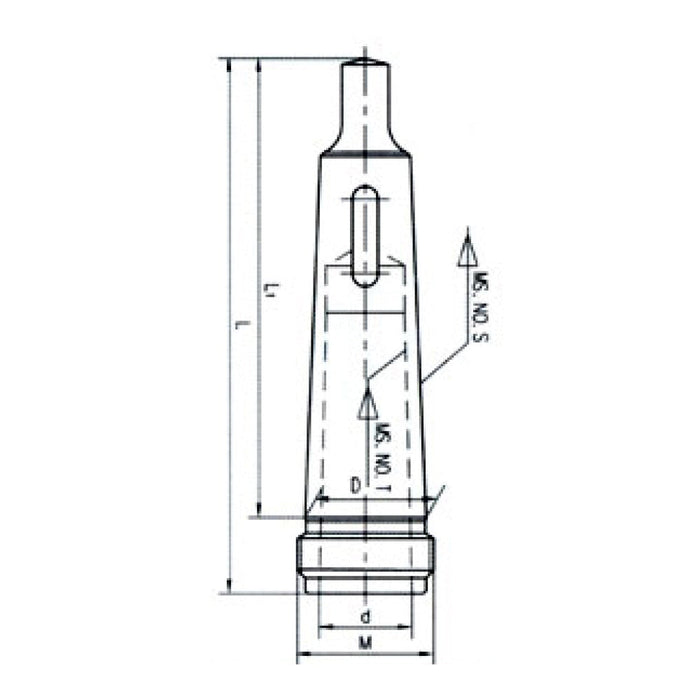

Order No. Outside Taper Inside Taper L (mm) L1 (mm) D (mm) d (mm) M (mm) Accuracy (mm)
435-0585 MT2 MT1 95 75 17.78 12.065 M22x1.5 0.015
435-0586 MT3 MT1 115 94 23.825 12.065 M28x1.5 0.02
435-0587 MT3 MT2 115 94 23.825 17.78 M28x1.5 0.02
435-0588 MT4 MT1 137 117.5 31.267 12.065 M35x1.5 0.03
435-0589 MT4 MT2 137 117.5 31.267 17.78 M35x1.5 0.03
435-0590 MT4 MT3 137 117.5 31.267 23.825 M35x1.5 0.03
435-0591 MT5 MT2 173 149.5 44.399 17.78 M48x1.5 0.04
435-0592 MT5 MT3 173 149.5 44.399 23.825 M48x1.5 0.04
435-0593 MT5 MT4 173 149.5 44.399 31.267 M48x1.5 0.04
435-0594 MT6 MT3 240 210 63.348 23.825 M68x1.5 0.04
435-0595 MT6 MT4 240 210 63.348 31.267 M68x1.5 0.04
435-0596 MT6 MT5 240 210 63.348 44.399 M68x1.5 0.04
