Outside Micrometer

Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
SKU 111-6040
Sold out
Original price $150.00 - Original price $150.00
Original price
$150.00
$150.00 - $150.00
Current price $150.00
Range: 300-400mm
Request a quote
Cancellation policy

Cancel for any reason at any time until your order shipped. Please be aware that banks charge for each payment transaction, so we will deduct these fees from the refunded amount. Once your order has shipped, you may return your order. For details, please review our Returns and Cancellations policies. Special order items may not be eligible for cancellation.

Return Policy

Most items can be returned within 30 days of receipt for a refund of the product cost less return shipping. Shipping, duties, and taxes are not refundable. For details, please review our Returns and Cancellations policies.

International Shipping

The product price and shipping and handling cost do not include import duties, taxes, or brokerage fees. As the transportation fee for your order is the only fee we charge, it is the buyer's responsibility to pay for these charges. We recommend that you contact your country's customs office or visit their website to determine if there will be any additional costs.

The Harmonized Tariff Schedule (HS code) for spiral cutterheads and other woodworking tools is 8466.92.50.10.

Features:

  • Micrometers are incredibly precise measuring tools used to accurately measure a variety of materials.
  • The high precision of the micrometers offers machinists a versatile tool for creating high-quality final products.
  • Resolution: 0.01mm (metric); 0.001" (inch).
  • Carbide measuring faces; Painted pipe-combined frame.

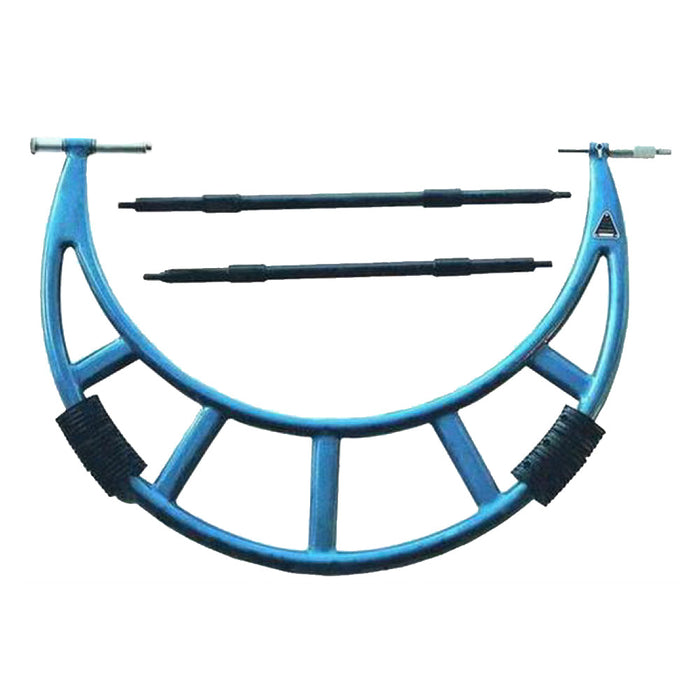

  • Wide measuring range from the interchangeable anvil.
  • Micrometer head travel:
    • Within 1000mm/40": 25mm thread pitch 0.5mm.
    • Over 1000mm/40": 50mm thread pitch 1mm.
  • Ratchet stop type. Other available types: friction thimble, ratchet friction thimble.
Metric Inch Accuracy
Order No. Range Order No. Range
111-6040 300-400mm 111-6316 12-16” 0.011mm
111-6050 400-500mm 111-6320 16-20” 0.013mm
111-6060 500-600mm 111-6324 20-24” 0.015mm
111-6070 600-700mm 111-6328 24-28” 0.016mm
111-6080 700-800mm 111-6332 28-32” 0.018mm
111-6090 800-900mm 111-6336 32-36” 0.020mm
111-6100 900-1000mm 111-6340 36-40” 0.020mm
111-6120 1000-1200mm 111-6348 40-48” 0.020mm
111-6140 1200-1400mm 111-6356 48-56” 0.024mm
111-6160 1400-1600mm 111-6364 56-64” 0.028mm
111-6180 1600-1800mm 111-6372 64-72” 0.031mm
111-6200 1800-2000mm 111-6380 72-80” 0.034mm
111-6220 2000-2200mm 111-6388 80-88” 0.040mm
111-6240 2200-2400mm 111-6396 88-96” 0.044mm
111-6260 2400-2600mm 111-6404 91-104” 0.048mm
111-6280 2600-2800mm 111-6412 104-112” 0.052mm
111-6300 2800-3000mm 111-6420 112-120” 0.056mm

Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.

Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.

Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.

What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
