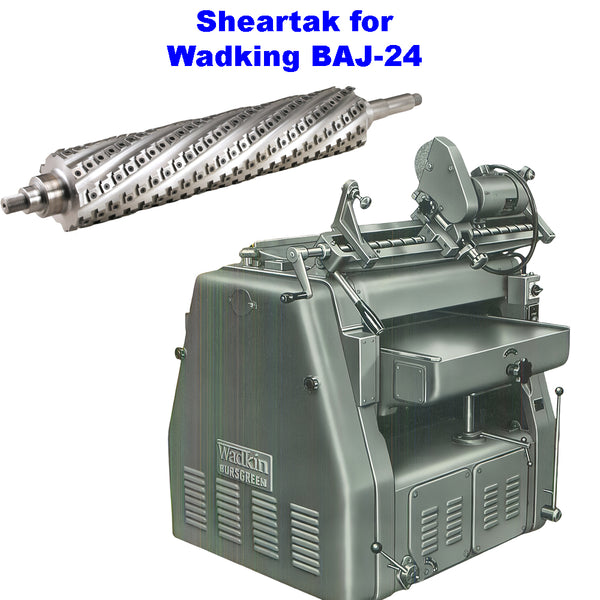

Spiral Cutterhead for Wadkin Bursgreen 24“ High Speed Planer Thicknesser Type BAJ-24
Upgrade your WADKIN BURSGREEN BAJ 24" planer with Sheartak high-performance spiral cutterhead featuring 234 precision-ground carbide inserts arranged in 9 spiral rows. Designed for superior durability and cutting quality, this upgrade ensures smoother finishes and longer tool life.
Why Choose Sheartak Spiral Cutterheads?
Built for Performance and Longevity
-
Optimized Wear Distribution: Even placement of inserts ensures consistent cutting and prolonged lifespan.
-
More Inserts, Greater Endurance: With 234 inserts, this cutterhead lasts significantly longer under the same workload than models with fewer inserts.
-
High Productivity: Cuts cleaner and faster, minimizing downtime and maintenance.
Exceptional Finish Quality
-
Glass-Smooth Results: Spiral shear-cut action delivers a premium surface finish—even on tricky grain patterns or soft woods.
-
Four-Edge Inserts: Each insert features four cutting edges. Simply rotate for a fresh edge—no sharpening or resetting needed.
Engineered for Durability
-
Grade C3++ Carbide: Stays sharp up to 50 times longer than traditional high-speed steel (HSS) blades.
-
Efficient Chip Ejection: Produces smaller, lighter chips for better dust extraction and cleaner work environments.
Fast Shipping & Warranty
-
Quick Dispatch: In-stock items ship the next business day from Waterloo, Ontario, Canada via Canada Post, USPS, or UPS.
-
1-Year Warranty: Covers parts and manufacturing defects (excluding consumables).
Specifications
-
Cutterblock Material: AISI 5140 alloy steel (high tensile strength)
-
Insert Material: Grade C3++ carbide
-
Insert Size: 15 × 15 × 2.5 mm, radius R150
-
Number of Inserts: 234
-
Spiral Rows: 9
-
Wrench Type: Torx head T-handle
What’s Included
Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.
Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.
What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
