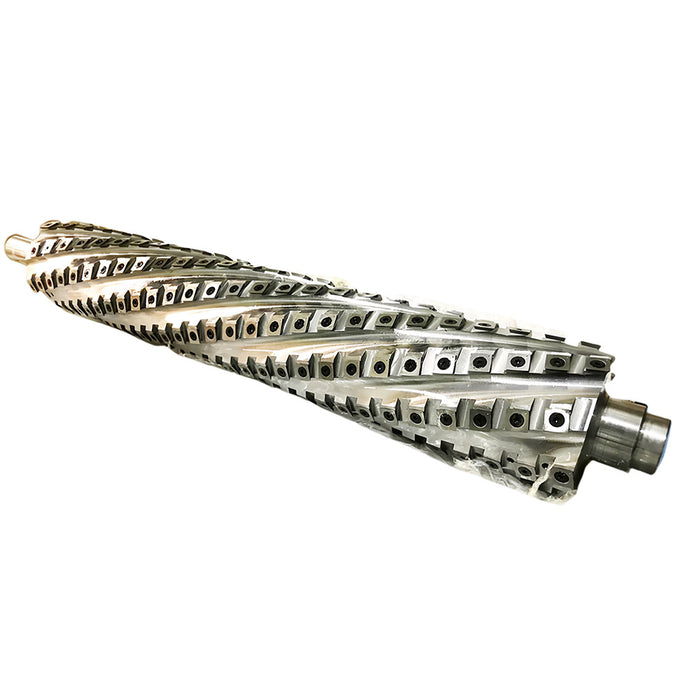

Shearak piral Cutterhead for Wadkin RE 1328 24" Planer
Upgrade your Wadkin RE 1328 Planer with a high-performance spiral cutterhead featuring 234 carbide inserts arranged across 9 spirals. Each cutterhead includes 5 extra carbide inserts and 5 screws as spare parts for your convenience.
Superior Durability and Efficiency
-
Optimized for Even Wear: Each carbide insert ensures balanced wood removal, extending the lifespan of the cutterhead.
-
Longer Lifespan: Cutterheads with more inserts last longer under the same cutting conditions compared to those with fewer inserts.
-
Enhanced Productivity: Featuring 234 carbide inserts arranged in 9 rows, this cutterhead delivers superior performance and cost efficiency.
Exceptional Cutting Quality
-
Premium Surface Finish: Sheartak spiral cutterheads produce a smoother surface finish compared to traditional straight-edge cutterheads.
-
Shear-Cut Design: The angled, round-edged carbide inserts provide a glass-smooth cut, even on highly figured or soft woods.
-
Multi-Edge Inserts: Each insert has four cutting edges, allowing you to rotate them up to 3 times for a fresh, sharp edge. No sharpening or resetting required!
Built to Last
-
Carbide Durability: Inserts stay sharp 50 times longer than high-speed steel (HSS) blades.
-
Improved Dust Management: Shorter, thinner chips make dust extraction easier and more efficient.
Convenient Shipping and Warranty
-
Fast Shipping: In-stock items ship the next business day from Waterloo, Ontario, Canada. Choose from Canada Post, USPS, or UPS for delivery.
-
Warranty: Enjoy peace of mind with our one-year warranty, covering parts and manufacturing defects (excluding consumables).
For more information, call our toll-free number: 1-877-41-SHEAR (1-877-417-4327).
Experience unparalleled cutting performance with Sheartak spiral cutterheads!
Specifications
Material of Cutterblock: AISI 5140 high tensile strength alloy steel
Material of insert: Grade C3++.
Carbide insert size: 15x15x2.5mm R150
Number of inserts: 234
Number of rows: 5
Wrench size: Torx head T type
Kit include:
(1) All carbide inserts installed.
(5) inserts
(5) Torx screws
(1) T-handle wrench
Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.
Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.
Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.
What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
