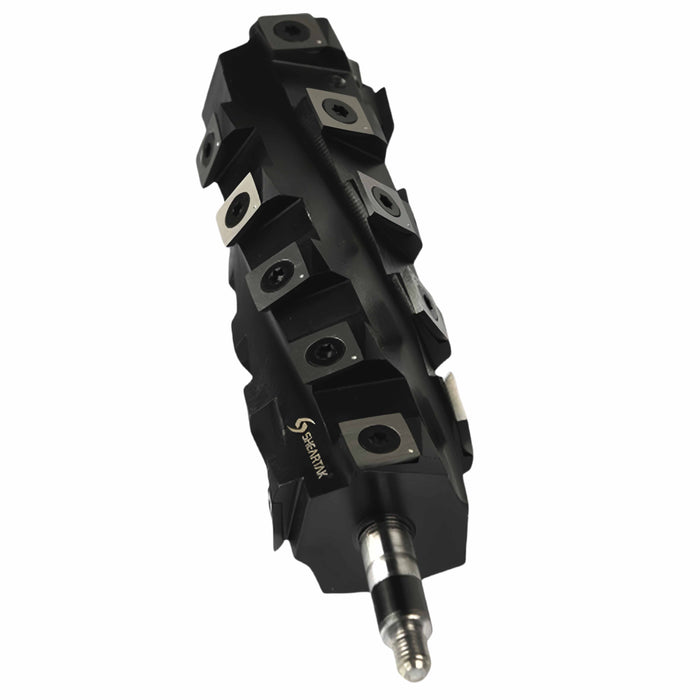

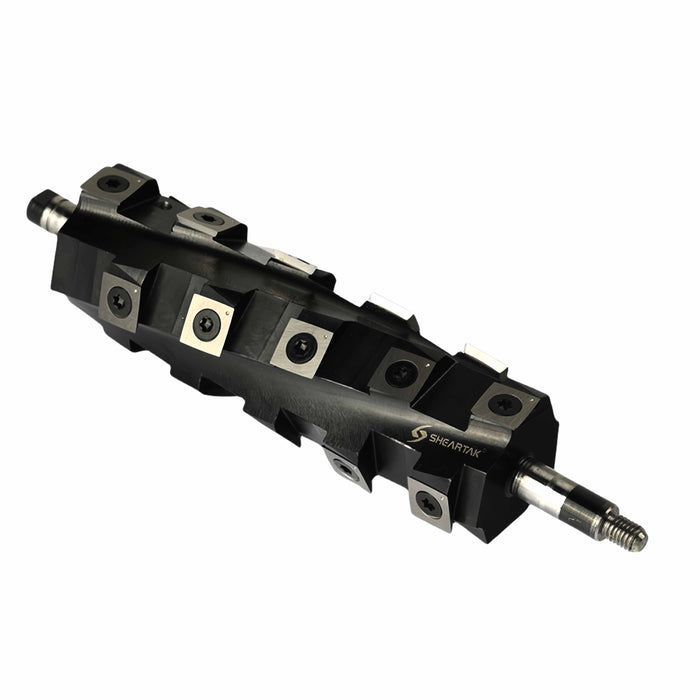

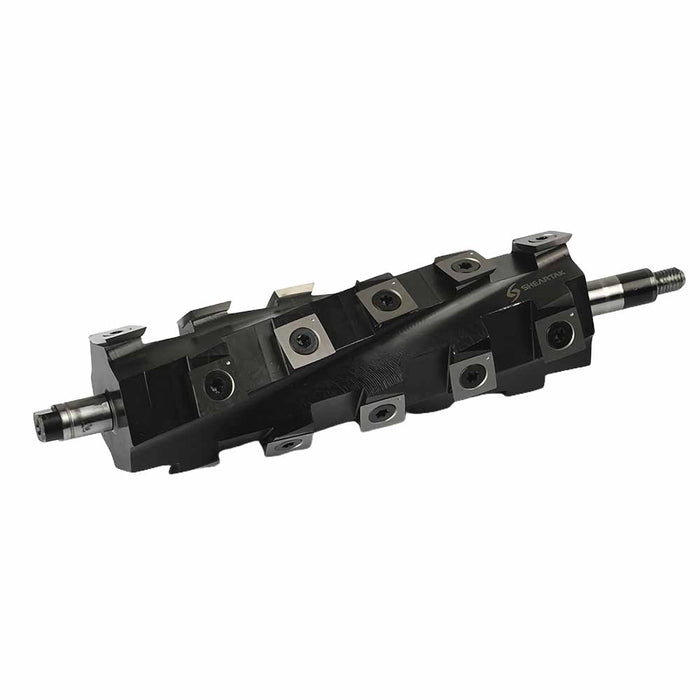

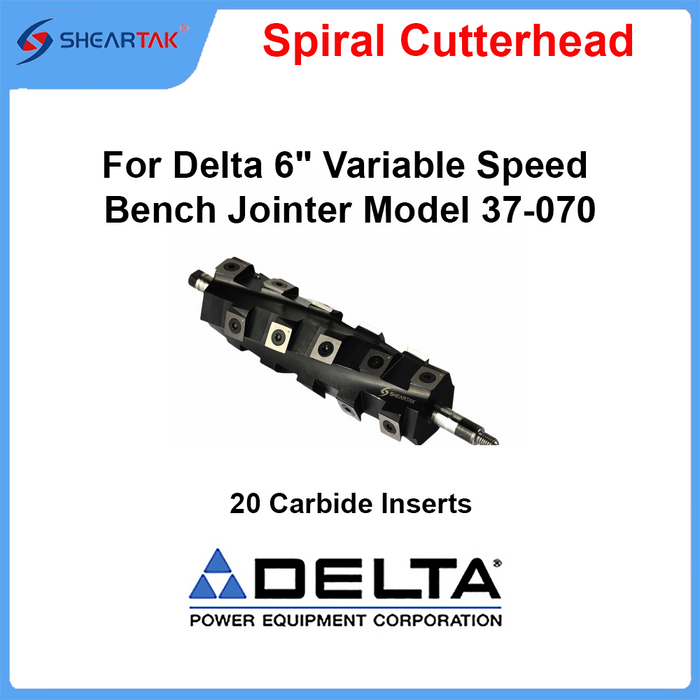

Upgrade your Delta 6" Variable Speed Bench Jointer Model 37-070 with Sheartak Helical Head, which contains 20 carbide inserts. Each insert features four R150 round edges and is situated at a slight angle to the board feed, providing a true shear-cut that eliminates tear-out and results in a glossy surface finish on any type of wood, regardless of grain direction. The staggered cutting action of the inserts greatly reduces noise compared to traditional straight blades, as they only cut a small portion of the 15mm length at a time. When an edge becomes dull or chipped, it can be quickly and easily rotated to reveal a new, sharp edge without the need to replace the entire insert. Only replace inserts when all four edges have been used. This significantly reduces downtime, as the carbide inserts are readily available and inexpensive. Additionally, the use of carbide inserts reduces the amount of sanding required by up to three-quarters, and they have a lifespan that is 50 times longer than high-speed steel blades. The Sheartak Helical Head also consumes less power than conventional cutter heads, making retrofitting more cost-effective. The spiral cutting action produces short strips of wood, which makes dust extraction easier and prevents clogging at the hood, even if the dust collector is not powerful or well-designed. By upgrading to the Sheartak Helical Head, you can expect a quick return on your investment.
Kit includes:
* High tensile strength alloy steel cutter block.
* 20 carbide inserts installed.
* 5 extra carbide inserts.
* 5 extra screws.
Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.
Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.
Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.
What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
