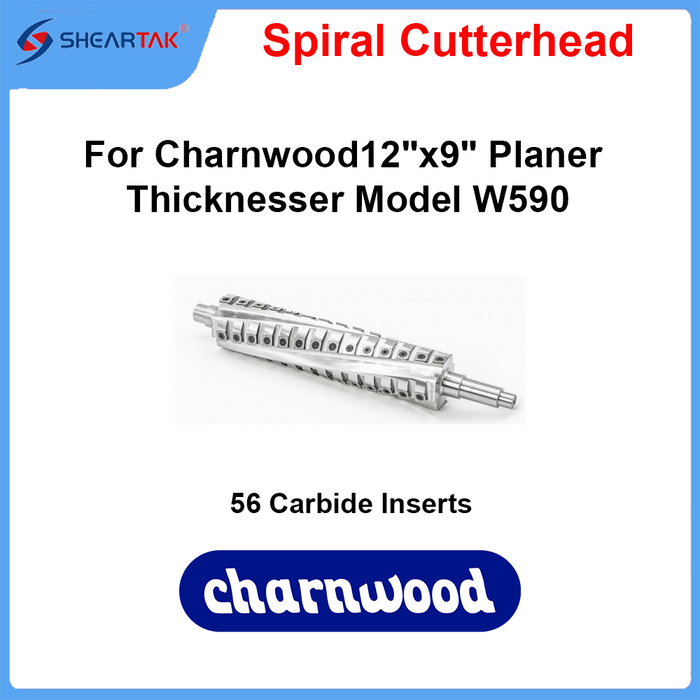

Upgrade your Charnwood W590 Planer Thicknesser with a high-performance Sheartak spiral cutter head featuring 56 carbide inserts for superior cutting efficiency and finish quality.
Key Benefits:
-
Precision Shear Cutting – Each carbide insert is slightly angled to the feed direction, producing a shear cut that minimizes tear-out and delivers a smooth, high-quality surface on softwoods and highly figured hardwoods.
-
Reduced Noise – The staggered cutting action significantly lowers operational noise compared to traditional straight blades.
-
Long-Lasting, Easy-to-Replace Inserts – Each 15x15x2.5mm carbide insert has four indexable edges. When an edge becomes dull or nicked, simply rotate the insert 90° for a fresh cutting edge. No sharpening required—just replace when all four edges are used.
-
Less Downtime, More Efficiency – No need for frequent sharpening, reducing maintenance time and costs.
-
Enhanced Dust Extraction – Spiral cutter heads remove short chips in a staggered pattern, preventing dust clogging and improving overall extraction efficiency.
-
Energy & Cost Savings – Sheartak spiral cutter heads reduce sanding work by up to 75% and consume less power, making them a smart investment that quickly pays for itself.
Sheartak Cutter Head Kit Includes:
✅ High-tensile strength alloy steel cutter block
✅ 56 carbide inserts pre-installed in 4 helical rows
✅ 5 extra carbide inserts & 5 extra screws as spare parts
✅ 1 wrench for easy maintenance
Upgrade your planer today and experience a smoother finish, quieter operation, and long-term savings with Sheartak’s spiral cutter head!
Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.
Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.
Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.
What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
