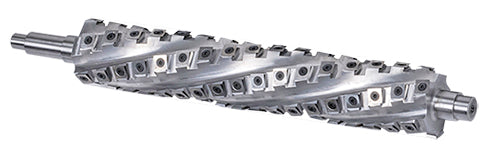

Sheartak Spiral Cutterhead for Rikon 23-400 16" Planer Thicknesser
Upgrade your Rikon 23-400 with Sheartak's premium spiral cutterhead, featuring 72 ultra-durable carbide inserts arranged across 4 helical rows for smooth, efficient cutting. Each kit includes 5 extra carbide inserts and 5 Torx screws as spare parts.
Unlike traditional straight blades, the Sheartak spiral cutterhead delivers a superior surface finish, even on highly figured or soft woods. The angled, round-edge inserts produce a true shear cut, resulting in a glass-smooth surface. Each insert has four cutting edges—simply rotate when dull for a fresh edge, eliminating the need for sharpening or resetting. Carbide stays sharp up to 50 times longer than standard HSS blades, and the shorter, finer chips created by this design also make dust collection more efficient.
Warranty
All Sheartak cutterheads come with a one-year warranty from the date of purchase, covering parts and manufacturing defects (excluding consumables).
Specifications
-
Cutterhead Material: AISI 5140 high-tensile alloy steel
-
Insert Material: C3++ grade carbide
-
Insert Size: 15 x 15 x 2.5 mm, R150 radius
-
Number of Inserts: 72
-
Number of Spiral Rows: 4
-
Wrench Type: T-type Torx head
Kit Includes
Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.
Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.
Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.
What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
