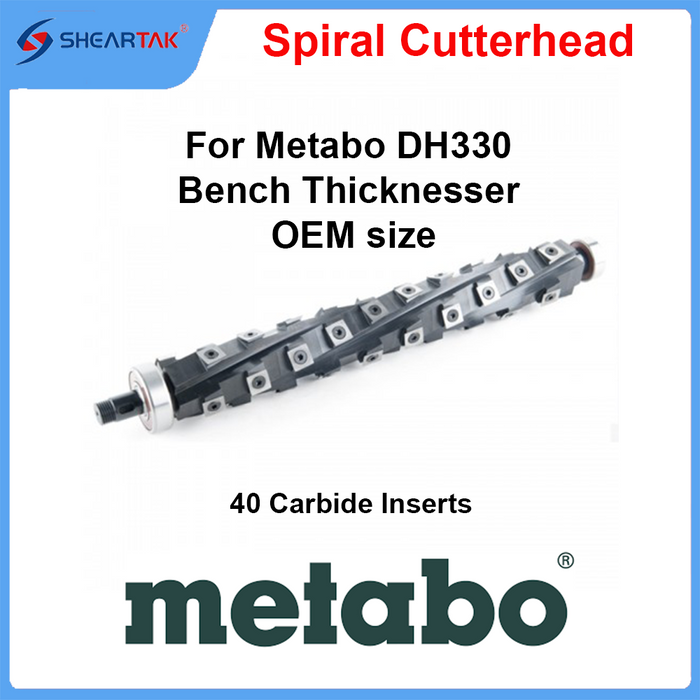

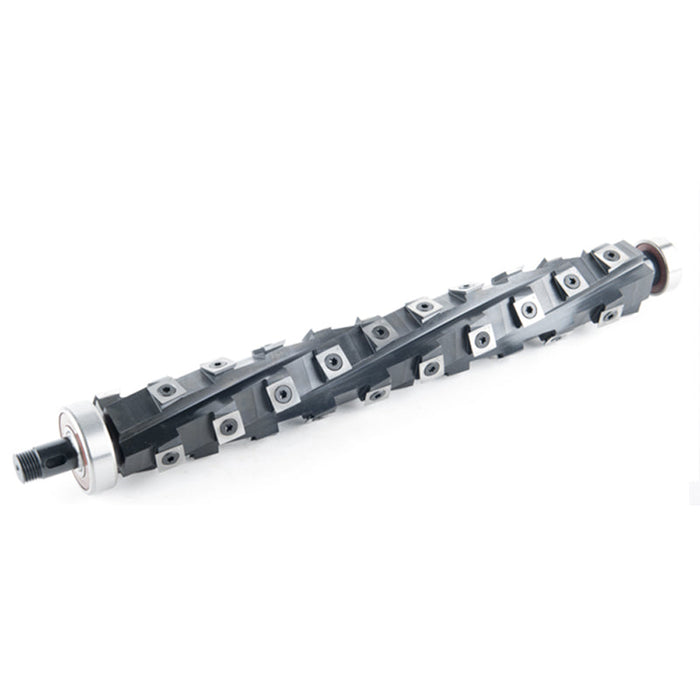

Upgrade Your Metabo DH330 with a Spiral Cutterhead
Experience a significant improvement in planing performance with this high-quality spiral cutterhead designed specifically for the Metabo DH330 bench thicknesser. Featuring 40 carbide inserts, this OEM-sized replacement delivers exceptional results:
Key Benefits:
-
Superior Finish: Eliminates tear-out and produces a glass-smooth surface on all wood types, including highly figured hardwoods.
-
Reduced Noise: Staggered cutting action minimizes noise levels during operation.
-
Unmatched Durability: Carbide inserts offer 10x longer lifespan than traditional HSS blades, significantly reducing downtime and maintenance costs.
-
Easy Maintenance: Interchangeable inserts with four cutting edges per insert allow for quick and easy rotation for a fresh edge.
-
Improved Dust Collection: Produces shorter, thinner chips for more efficient dust extraction.
-
Increased Productivity: Eliminates the need for extensive sanding, significantly improving your workflow and saving time.
Kit Includes:
- High-tensile strength alloy steel cutter block
- 40 carbide inserts for installation
- 5 extra carbide inserts & 5 extra screws
- A pair of premium sealed bearings pre-mounted
- 1 Wrench
This version is designed to closely match the cutting circle of the original cutterhead with HSS blades, making it an OEM-compatible replacement.
For optimal performance, the carbide inserts are removed before the cutterblock undergoes dynamic balancing. After installing the cutterblock into your planer, you can then install the 40 carbide inserts.
Please note that the maximum depth of cut is 1/8" per pass.
Installation:
While offering significant performance gains, please be aware that installing all 40 carbide inserts will take approximately 30 minutes.
https://www.sheartak.com/shearcut.pdf
https://sheartak.com/video/spiralcutterhead.mp4
Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.
Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.
Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.
What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
