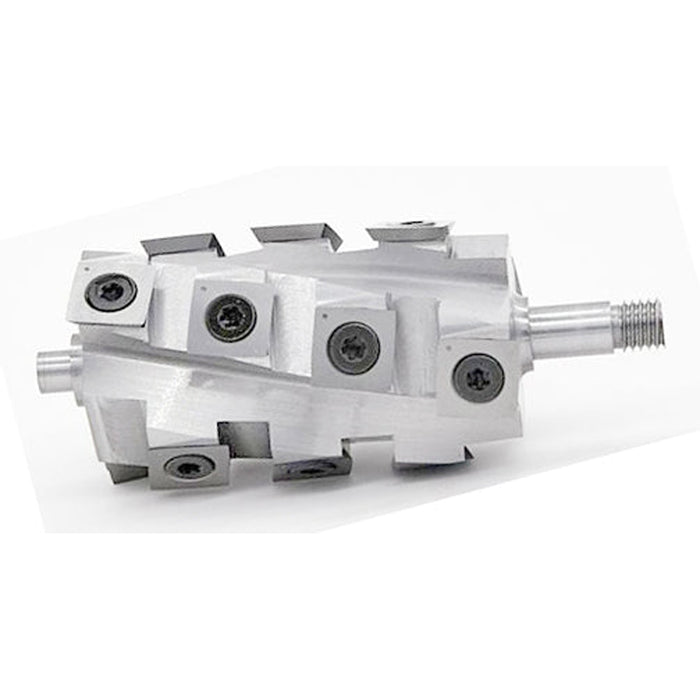

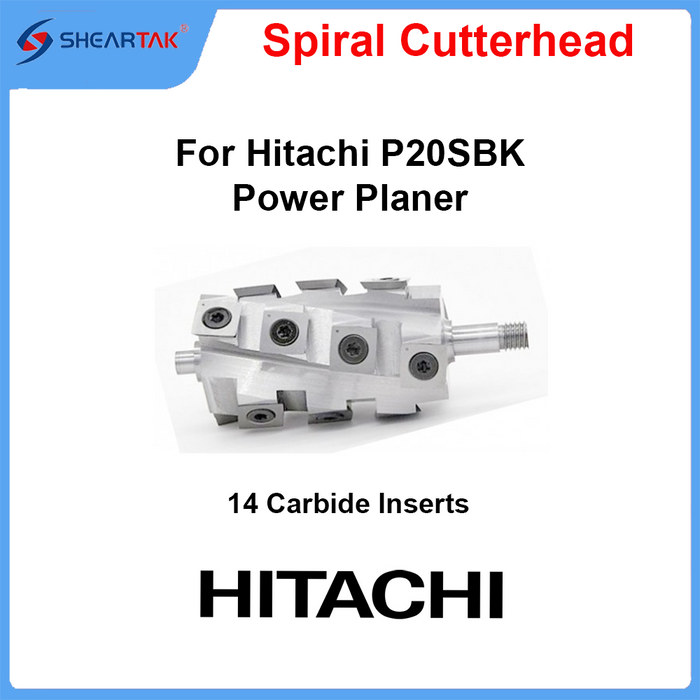

Surfboard Planning Drum for Hitachi P20SBK Power Planer with 14 carbide Inserts

Woodworkers are now retrofitting spiral cutter heads to their old planers, and jointers for the following advantages.

* Smoother Finish with no tear-out. Each knife sits at a slight angle and it produces a shear cut. Spiral cutter head planes board in a staggered cut which is much better than a single straight cut. The combined shear and staggered cut eliminates tear-out and leaves a glossy surface finish on even highly figured hardwood.

* Noise is hugely reduced as the spiral cutter head allows a few knives to cut in a staggered way.

* More than 10 times the life use of high-speed steel. The 15x15x2.5mm inserts are made of sintered tungsten carbide which is much harder than high-speed steel. Each insert has four edges.

* Easy to change. The knives are precision ground to a tolerance of +/-0.0004" or +/-0.01mm and are interchangeable. Loosen the screw, rotate 90° for a new edge, and tighten the insert in minutes.

* Dust extraction is easier. The spiral cutter head produces thinner and shorter chips.

* Low cost to use. Spiral cutter heads produce a smooth finish, reduce or eliminate sanding work, don't require sharpening, the product will pay for itself in a very short time.

Spiral Cutterhead specifications:

* High tensile alloy steel shaft for long durability.

* Aluminum cutter block reduces overheating resulting from the weight.

* 14 pcs of Tungsten carbide insert knives installed.

* Zero-out design

Kit includes:

(5) extra knives as spare parts

(5) extra screws

(1) Torx-headed wrench.

(2) bearings
