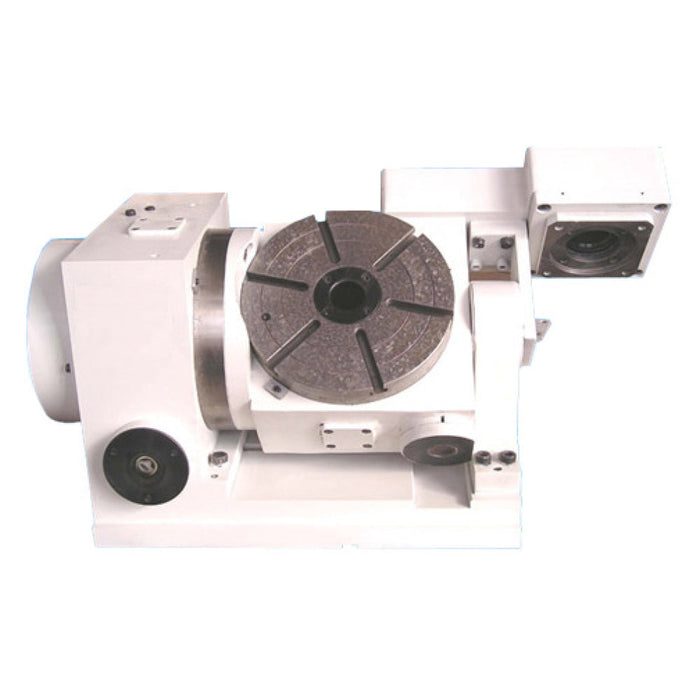

Two Axis Tilting NC Rotary Table

Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
SKU 410-0200
Sold out
Original price $400.00 - Original price $400.00
Original price
$400.00
$400.00 - $400.00
Current price $400.00
Table Diameter (mm): 170
Request a quote
Cancellation policy

Cancel for any reason at any time until your order shipped. Please be aware that banks charge for each payment transaction, so we will deduct these fees from the refunded amount. Once your order has shipped, you may return your order. For details, please review our Returns and Cancellations policies. Special order items may not be eligible for cancellation.

Return Policy

Most items can be returned within 30 days of receipt for a refund of the product cost less return shipping. Shipping, duties, and taxes are not refundable. For details, please review our Returns and Cancellations policies.

International Shipping

The product price and shipping and handling cost do not include import duties, taxes, or brokerage fees. As the transportation fee for your order is the only fee we charge, it is the buyer's responsibility to pay for these charges. We recommend that you contact your country's customs office or visit their website to determine if there will be any additional costs.

The Harmonized Tariff Schedule (HS code) for spiral cutterheads and other woodworking tools is 8466.92.50.10.

Features:

  • The tilting NC rotary table is controlled by a two-coordinate control system of either the main CNC machine or a separate two-coordinate control system.
  • It can serve as the 4th and 5th axis of the CNC machine for hole drilling, slot cutting, curved lines, and surface cutting at any angle.
  • The tables can also be used on conventional drilling, milling, and boring machines for work dividing.
  • The servo motor drivers vary with the control systems of the CNC milling machines and are supplied separately. Contact us for compatibility.
Order No. 410-0200  410-0201 410-0202 410-0203 410-0204
Table Diameter (mm) 170 250 320 400 500
Table Height (Horizontal) mm 246.5 315 346 420 570
Table Center Height (mm) 150 225 235 290 390
Bore Diameter (mm) φ35H7 φ40H7×12 φ100H6×25 φ130H6×20 φ180H620
T slot size (mm)  12 12 14 14 18
Locating Key Size (mm) 18 18 18 18 18
Rotary Worm Gear Ratio 0.097222222 0.104166667 0.104166667 0.125 0.145833333
Rotary Worm Ratio 0.166666667 0.166666667 0.166666667 0.166666667 0.166666667
Tilting Worm Ratio 0.097222222 0.104166667 0.104166667 0.125 0.145833333
Total Tilting Ratio 0.166666667 0.166666667 0.166666667 0.166666667 0.166666667
Max speed (r/min) 11.1 11.1 11.1 11.1 11.1
Servo Motor Power (Rotary) Panasonic MSMA082A1C/G α6 α12 α12
Servo Motor Power (Tilting) Panasonic MSMA082A1C/G α6 α12 α12
 Servo Motor Torque (Rotary) 2.4 6 6 12 12
 Servo Motor Torque (Tilting) 6.36 6 6 12 12
Min. Increment 0.001° 0.001° 0.001° 0.001° 0.001°
Tilting Range 0-90° 0°-90° 0-90° 0-90° -20°-120°
Table Clamping Torque          Gas 5x100000Pa 200 Nm Oil 15×100000Pa 1800Nm Oil 15×100000Pa 1500Nm Oil 15×100000Pa 2000Nm Oil 15×100000Pa 2800Nm
Tilting Clamping Torque N.m Gas 5x100000Pa 260 Nm Oil 15×100000Pa 1800Nm Oil 15×100000Pa 2100Nm Oil 15×100000Pa 3000Nm Oil 15×100000Pa 3800Nm
Rotary Dividing Accuracy ≤30” ≤30” ≤25” ≤20” ≤20”
Rotary Repeatability ≤6” ≤6” ≤6” ≤6” ≤6”
Tilting Dividing Accuracy ≤60” ≤60” ≤45” ≤45” ≤45”
Tilting Repeatability ≤10” ≤10” ≤10” ≤10” ≤10”
Max Load kg (horizontal) 50 100 150 200 400
Max Load kg (Tilting) 25 75 100 150 200
Table Weight (kg) 320 450 450 600
