SKU 401-0403
Sold out
Original price $156.00 - Original price $3,115.00
Original price
$156.00
$156.00 - $3,115.00
Current price $156.00
Model: 401-0403
Request a quote
Cancellation policy

Cancel for any reason at any time until your order shipped. Please be aware that banks charge for each payment transaction, so we will deduct these fees from the refunded amount. Once your order has shipped, you may return your order. For details, please review our Returns and Cancellations policies. Special order items may not be eligible for cancellation.

Return Policy

Most items can be returned within 30 days of receipt for a refund of the product cost less return shipping. Shipping, duties, and taxes are not refundable. For details, please review our Returns and Cancellations policies.

International Shipping

The product price and shipping and handling cost do not include import duties, taxes, or brokerage fees. As the transportation fee for your order is the only fee we charge, it is the buyer's responsibility to pay for these charges. We recommend that you contact your country's customs office or visit their website to determine if there will be any additional costs.

The Harmonized Tariff Schedule (HS code) for spiral cutterheads and other woodworking tools is 8466.92.50.10.

Refer to table below for specifications by model.

Features:

  • The horizontal and vertical rotary tables are mostly used on milling machines for indexing, drilling, end milling, angle setting, boring, circular cutting, etc.
  • With the support of tailstock, workpieces can be held between the centers for periphery dividing, milling, and drilling.
  • With the optional 3-jaw self-centering chuck and adaptors, round work pieces can be quickly mounted to the rotary table.

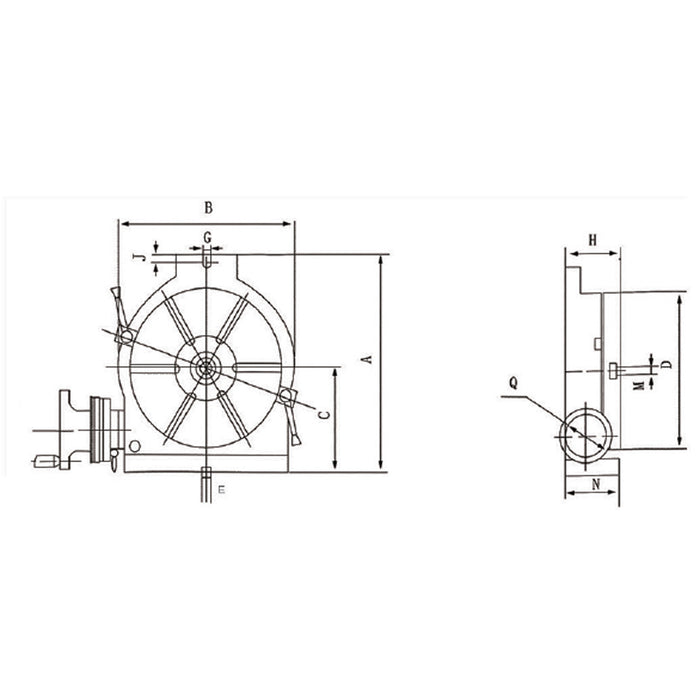

    Order No. 401-0403 401-0404 401-0405 401-0406 401-0408 401-0410 401-0412 401-0414 401-0416 401-0420
    Table Dia. 76.2mm 110mm 127mm 150mm 200mm 250mm 300mm 350mm 400mm 630mm
    Locking Key Width 12mm 12mm 12mm 16mm 16mm 16mm 16mm 16mm 18mm 22mm
    Center Height 59mm 85.5mm 90mm 100mm 135mm 165mm 195mm 230mm 260mm 400mm
    Overall Height 98mm 146mm 155mm 200mm 265mm 325mm 388mm 450mm 525mm 765mm
    Width 78mm 115mm 127mm 160mm 220mm 280mm 330mm 390mm 450mm 680mm
    Thickness 68mm 68mm 68mm 78mm 98mm 110mm 130mm 130mm 130mm 220mm
    Table Slot 8mm 12mm 12mm 14mm 14mm 14mm 16mm 16mm 16mm NA
    Center Bore 2MT 2MT 2MT 2MT 3MT 3MT 4MT 4MT 4MT 200mm
    Gear Module 1 1 1 1 1.5 1.5 2 2 2.5 4
    Gear Ratio 1:36 1:72 1:72 1:90 1:90 1:90 1:90 1:90 1:90 1:20
    Vernier / / / 10" 10" 10" 10" 10" 10" 10"
    Index Accuracy / / / 60" 60" 60" 60" 60" 60" 60"
    Max Horizontal Load 15kg 40kg 50kg 100kg 150kg 200kg 250kg 300kg 350kg 450kg
    Max Vertical Load 10kg 20kg 25kg 50kg 75kg 100kg 125kg 150kg 175kg 200kg
    Table Weight 9kg 11.5kg 14kg 15kg 30kg 45kg 73kg 85kg 95kg 550kg
