Parts of a Jointer: Every Component Explained, With Adjustment and Maintenance Notes

A jointer has more going on beneath the surface than most beginners expect, and more than most guides explain. Knowing what each part does, how it adjusts, and what to watch for separates woodworkers who get consistent results from those who fight their machine. This guide covers every jointer part in detail, from the tables and cutterhead to the guard, drive system, and the hardware most manuals skip.

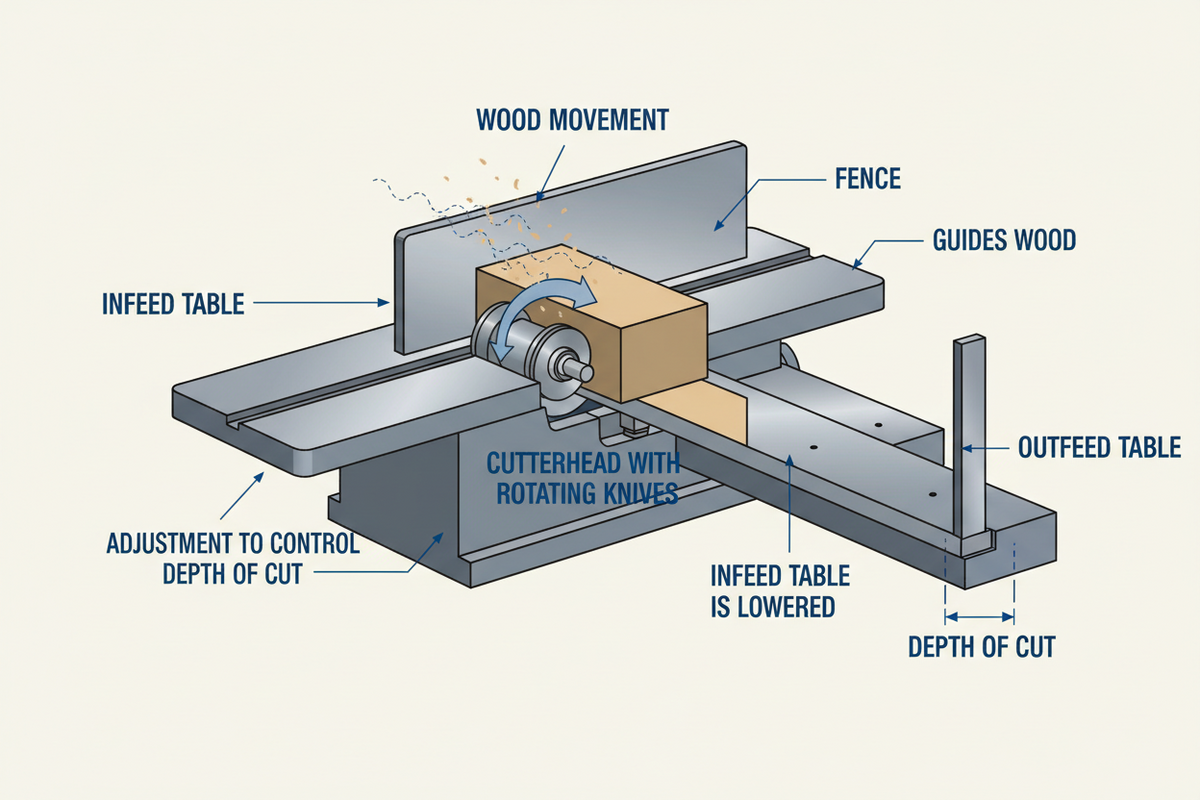

How a Jointer Works: The Relationship Between Its Parts

Before breaking down each component, it helps to understand how the parts interact. A jointer does not cut the way a saw does. Instead of a blade moving through the wood, the wood moves across a rotating cutterhead that is fixed in place between two cast iron tables.

The infeed table sits slightly lower than the cutterhead. The outfeed table sits at the same height as the top of the cutterhead at its highest point of rotation. When a board is pushed from the infeed side across the spinning cutterhead and onto the outfeed side, the cutterhead removes exactly as much material as the infeed table is set below the outfeed table. That difference in height is the depth of cut. Everything else on the machine serves to support, guide, or protect the board and operator during that one fundamental action.

See more: What Does a Jointer Do? The Complete Guide for Woodworkers

The Infeed Table

The infeed table is the flat cast iron surface on the operator's side of the machine. It supports the board before and during the cut. Its height relative to the cutterhead is the single most important adjustment on the jointer, because it sets the depth of cut for every pass.

Function and Height Adjustment

The infeed table connects to the machine base by either dovetail ways or pivoting parallel arms, depending on the manufacturer. Both systems allow the table to move up and down relative to the fixed cutterhead. Adjustment is made with a handwheel or lever, and the table is locked in position after setting, typically with a T-handle lock. Most jointers ship with the infeed table set for a 1/32-inch to 1/16-inch depth of cut, which is appropriate for most face and edge jointing work.

How Infeed Table Position Controls Depth of Cut

The lower the infeed table sits below the outfeed table level, the more material the cutterhead removes in a single pass. A deeper cut removes more material but risks tearout, especially on figured grain, and puts more load on the motor. For face jointing warped or cupped boards, a setting of 1/16 inch moves through the job efficiently. For a finish pass or edge jointing before gluing, 1/32 inch or less produces a cleaner surface with less risk of chipout.

Signs the Infeed Table Needs Attention

The infeed table should be dead flat along its full length. If it has developed a twist, boards will rock during a cut, producing edges and faces that are not truly straight. Check flatness periodically with a known-straight reference such as a machined straightedge laid diagonally across the table surface. If the dovetail ways are loose, the infeed table may shift slightly under load, causing the depth of cut to vary mid-pass. Tightening the gib adjustment screws on the ways restores proper resistance.

The Outfeed Table

The outfeed table is the cast iron surface on the far side of the cutterhead. It supports the board once it has cleared the cutting zone. While the infeed table is adjusted frequently to change depth of cut, the outfeed table should be set once and left alone until knives are changed or a problem develops.

Why Outfeed Height Must Match the Cutterhead

The outfeed table must be set so its surface is exactly level with the highest point of the cutting circle of the knives or inserts, which is the point at which the cutterhead passes top dead center. If the outfeed table is too low, the just-cut surface will drop below the table level as the board exits, creating a snipe at the trailing end. If the outfeed table is too high, the board will stop abruptly when its freshly cut surface hits the table edge and refuse to feed through.

How to Check and Adjust Outfeed Table Alignment

With the machine powered off and locked out, rotate the cutterhead by hand until a knife or insert is at the very top of its arc. Lay a straightedge on the outfeed table so it extends over the cutterhead. The knife at top dead center should just barely make contact with the underside of the straightedge without lifting it. If there is a gap, the outfeed table needs to come up. If the straightedge rocks, the table is too high. Make the adjustment, lock the table, and confirm with a test pass on scrap before proceeding.

Dovetail Ways vs Pivoting Arms

Tables on most North American jointers use dovetail ways: the base casting has a precision-machined dovetail channel, and the table slides along it. European machines more commonly use pivoting parallel arms that swing the table in an arc rather than a linear slide. Both systems work well when properly maintained. Dovetail ways need periodic lubrication and gib adjustment to prevent play; pivoting arms require checking the arm pivot hardware for tightness. Either system, when out of alignment, will cause the table to cant sideways, producing edges that are not perpendicular to the table surface.

The Cutterhead

The cutterhead is the rotating cylinder positioned between the two tables. It holds the cutting elements and is driven by the motor through a belt and pulley system. The cutterhead is the component that most directly determines the quality of the finished surface, and it is where the most meaningful upgrade decision on a jointer takes place.

Straight Knife Cutterheads

The traditional cutterhead design uses two, three, or four long high-speed steel knives that run the full width of the cutterhead, held in slots by gib bars and gib screws. Straight knives cut in a continuous arc across the full board width simultaneously, producing a slightly scalloped surface at a microscopic level. On most wood, this is not visible. On figured, interlocked, or reversing grain, straight knives tend to tear rather than slice, producing tearout that requires significant sanding to remove.

Straight knife maintenance involves removing each knife, sharpening it on a flat stone or sending it to a grinder, reinstalling it, and then setting all knives to exactly the same height. Height variation between knives causes vibration, uneven cutting, and accelerated wear on bearings. The knife-setting process is slow and requires either a dedicated jig or careful use of a dial indicator.

Spiral and Helical Cutterheads

Spiral and helical cutterheads replace the long straight knives with rows of small square carbide inserts arranged in a helical pattern around the cylinder. Each insert engages the wood at a slight skew angle rather than cutting straight across. This shearing action reduces tearout significantly on difficult grain and produces a noticeably smoother surface on most species.

When an insert dulls or chips, it rotates 90 degrees to expose a fresh cutting edge. Each insert typically has four usable edges. When all four edges of an insert are spent, only that insert is replaced rather than the entire set of knives. The result is lower long-term consumable cost and a much faster maintenance process compared to straight knife sharpening. Carbide also holds an edge considerably longer than high-speed steel under normal shop use.

Spiral cutterheads also run quieter than straight knife heads because the staggered insert engagement reduces the impact load on the machine at any given moment, which translates to lower noise levels and less vibration transmitted to the workpiece.

See more: When and How to Replace Carbide Inserts on Your Planer or Jointer

Gib Screws and Knife Lock Bars

On straight knife cutterheads, gib screws are the fasteners that clamp the gib bar against the knife, holding it in its slot under the centrifugal force of high-speed rotation. The slot is machined with a dovetail or wedge profile so that the gib, when tightened, draws the knife down securely. Gib screws must be torqued evenly from one end of the knife to the other to prevent the knife from canting in its slot. Uneven torque is one of the most common causes of height variation between knives.

Some straight knife cutterheads use a knife lock bar instead of or in addition to gib screws: a single bar spans the full knife width and is tightened with a series of bolts. Lock bars are generally easier to set evenly and are less prone to the knife shifting during tightening. On spiral cutterhead systems, individual inserts are held by a single torx screw per insert, and the gib system is not present.

The Fence

The fence is the vertical cast iron or steel guide that runs along the length of the tables, parallel to the direction of feed. It holds the board upright at a set angle to the table surface during edge jointing, which is what produces an edge that is square or at a specific bevel angle to the face.

Lateral Adjustment and Positioning

The fence can be moved left or right across the table width and locked at any point. Moving the fence closer to the operator is useful when jointing narrow stock, since it reduces the reach needed to maintain hand position safely. Moving the fence toward the far edge of the tables exposes more of the cutterhead width and is appropriate for wider stock. A practical secondary use of lateral adjustment is positioning the fence to avoid sections of the cutterhead where a knife nick has left a track: moving the fence a fraction of an inch to one side shifts the board contact zone away from the damaged area.

Tilt Adjustment and Positive Stops

The fence can be tilted toward or away from the table surface to cut beveled edges. Most jointers tilt from 90 degrees (square) outward to 45 degrees in either direction. A positive mechanical stop at 90 degrees allows the fence to return to square reliably and should be checked for accuracy periodically with an engineer's square placed on the outfeed table surface beside the cutterhead. The 90-degree stop is the most used setting by far and any inaccuracy there will affect every edge-jointed board that passes through the machine.

Fence Lock and Tilt Lock

Two separate locking mechanisms hold the fence in position: a lateral lock that fixes the fence's position across the table width, and a tilt lock that fixes its angle. On many machines these are separate handles or knobs. Both must be tightened before the machine is used; a fence that moves laterally during a cut produces a tapered edge, and a fence that rotates introduces angle error into what should be a square edge.

The Guard

The guard is the spring-loaded cover that sits over the portion of the cutterhead not in contact with the workpiece. It is a critical safety component that is frequently removed or disabled by woodworkers, which significantly increases the risk of contact with the spinning cutterhead.

Spring-Loaded Guard Operation

The standard jointer guard pivots on a post mounted on the fence and is spring-loaded to return to its closed position over the cutterhead whenever the workpiece is not pushing it aside. As the board is fed across the cutterhead, the board itself pushes the guard back. Once the board has passed, the spring pulls the guard back into position. This means the cutterhead is fully exposed only in the narrow zone where the board is making contact, and only for as long as the board is present.

When and Why the Guard Is Removed

Rabbeting is the primary operation that requires guard removal. When cutting a rabbet, the board must ride the rabbeting ledge on the left side of the infeed table, which requires the guard to be entirely out of the way. Some machines have a guard design that does not accommodate this operation without removal. When the guard is off, the operator must apply extra caution, use push blocks, and limit the scope of the operation. The guard should be reinstalled immediately after rabbeting is complete.

Supporting Parts: Motor, Drive Belt, and Depth of Cut Indicator

Beyond the major components, several supporting parts keep the jointer running accurately and reliably.

The depth of cut indicator deserves special attention. Most woodworkers assume it is accurate, but on straight knife machines, the indicator must be recalibrated every time knives are changed because knife height variation shifts the effective cutting diameter of the head. On spiral cutterhead machines, insert height is fixed by the machined seat, so the indicator is more reliable. In either case, measuring actual depth of cut on a piece of scrap by marking with pencil lines and confirming removal is always more accurate than reading the indicator.

Jointer Parts vs Planer Parts: Key Differences

A jointer and a thickness planer are related machines that share some components but differ in others. Understanding which parts are unique to each machine clarifies why the two are used together rather than interchangeably.

The most fundamental difference is orientation. On a jointer, the board rests on the table and the cutterhead is below, cutting upward through the bottom of the board. On a planer, the board passes under the cutterhead and the cutterhead cuts downward through the top face. This is why a jointer cannot thickness a board and a planer cannot flatten a twisted face: the board has to have one flat reference face before the planer's pressure rollers can pull it through without following the existing warp.

See more: Helical vs Spiral Cutterheads: Why Choose Spiral for Your Jointer

When to Adjust, Replace, or Upgrade Each Part

Most jointer parts do not wear out under normal use. The exceptions are the cutterhead tooling, the drive belt, and the table ways. Knowing what signals require attention prevents small issues from becoming alignment problems or safety hazards.

Cutterhead (straight knives) - sharpen or replace when:

• The surface coming off the machine develops visible ridges across the grain

• Tearout increases on wood that previously cut cleanly

• The machine requires noticeably more feed pressure than normal

• Knives have been ground down past usable thickness

At that point, upgrading to a spiral cutterhead rather than purchasing another set of straight knives is worth serious consideration. The spiral head outperforms straight knives on surface quality, reduces maintenance time per year substantially, and carbide inserts outlast high-speed steel by a large margin in typical shop conditions.

Drive belt - replace when:

• Cracking is visible along the inner surface

• The belt appears glazed (shiny and hardened)

• Edges show fraying or material loss

• The motor runs but the cutterhead does not reach full speed under normal feed pressure

Belt replacement is a straightforward job that most woodworkers can complete without a service technician.

Infeed and outfeed table ways - adjust when:

• Tables feel loose or show side-to-side play during a cut

• Edge angle varies across the board length despite a correctly set fence

• The table shifts position under load mid-pass

Gib adjustment on dovetail ways is a simple process covered in most machine manuals and restores proper tension without replacement parts.

Sheartak spiral cutterheads are direct-fit replacements for jointers from DeWalt, Delta, Powermatic, Grizzly, Jet, and a range of European brands. For a jointer that is mechanically sound but producing subpar surfaces, a cutterhead upgrade delivers the most measurable improvement per dollar of the options available.

Upgrade the most important part first: Sheartak Spiral Cutterheads for Jointers

Conclusion

A jointer's parts are straightforward once you understand how they work together. The infeed table sets depth of cut, the outfeed table provides the reference surface, and the cutterhead does the cutting. The fence, guard, and drive system keep the operation accurate and safe. For any mechanically sound jointer producing subpar surfaces, upgrading the cutterhead from straight knives to a spiral design is the highest-impact improvement available.
