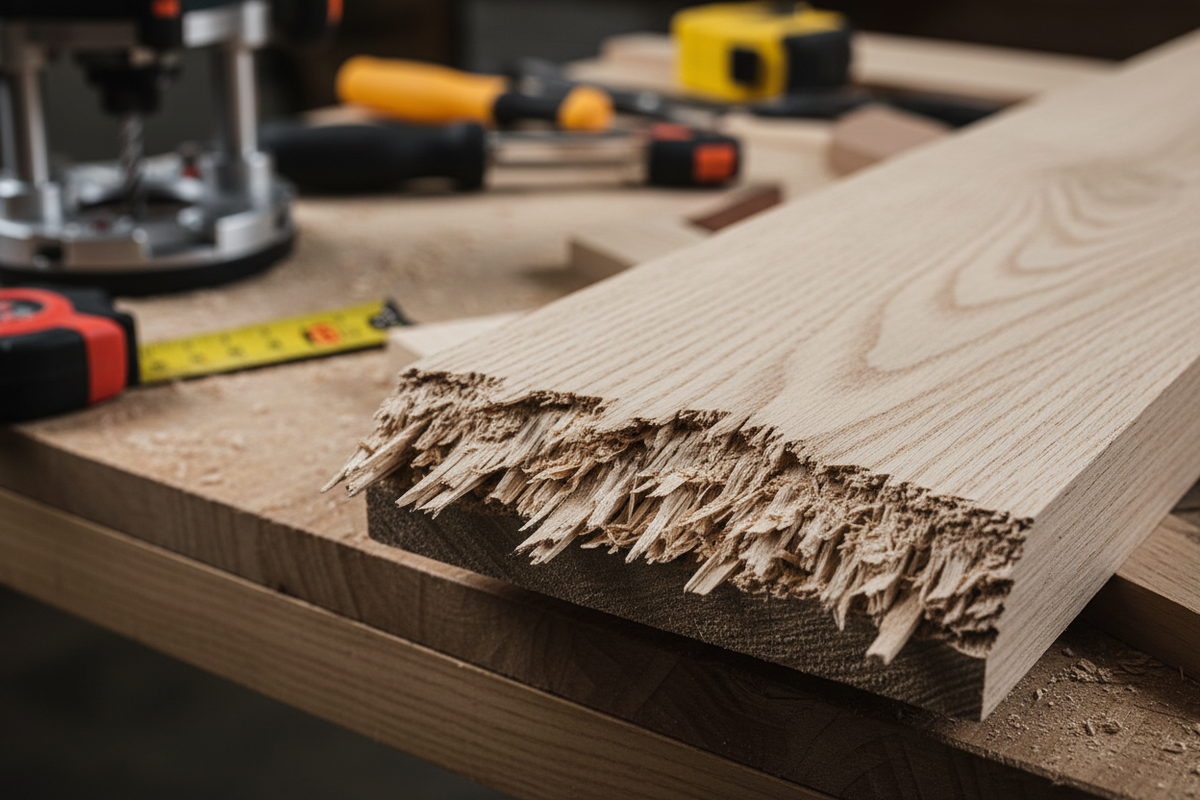

Wood Tearout: What Causes It, How to Prevent It by Tool Type, and When to Upgrade Your Cutterhead

Wood tearout ruins expensive boards in seconds and is difficult to fix after it happens. Understanding what causes it, and why the cause differs by tool, is what makes prevention reliable rather than a matter of luck. This guide covers the mechanics behind tearout, how to prevent it on each major tool, how to read grain direction correctly, and when a spiral cutterhead can greatly reduce tearout that technique cannot fix.

Why Wood Tears Out: The Mechanics

Tearout happens when a cutting tool lifts wood fibers ahead of the cut rather than shearing them cleanly. Wood is not homogeneous. It is made of long cellulose fibers running parallel to the grain, held together by lignin. When a blade or iron cuts with the grain at the correct angle, it slices those fibers cleanly from the surface. When it cuts against them or at the wrong angle, the fibers fracture and split ahead of the tool, producing torn, pitted, or splintered surfaces.

Grain Direction and Why It Matters

The slope of the grain fibers relative to the tool's direction of travel determines whether the cut runs downhill or uphill on the wood structure. Cutting downhill on the grain, in the direction the fibers slope toward the surface, causes the fibers to compress and shear cleanly. Cutting uphill lifts the fibers ahead of the cut, splitting them away from the wood before the blade reaches them. On straight-grained lumber, this is straightforward to manage. On figured, curly, or interlocked grain, the fiber slope reverses across the board face, making it impossible to cut in the right direction everywhere simultaneously.

Tool Sharpness and Edge Geometry

A dull cutting edge cannot shear fibers cleanly. Instead of slicing through, it pushes and compresses fibers until they fracture unpredictably. Even a slightly dull blade produces significantly more tearout than a sharp one on the same piece of wood. Edge geometry also matters independently of sharpness: a blade with a high hook angle is aggressive and tends to lift fibers, while a low or negative hook angle scrapes more than it slices, reducing tearout on problematic grain. On planers and jointers, the relationship between the cutterhead design and fiber geometry is the dominant variable.

Depth of Cut and Feed Rate

Taking too deep a cut increases the length of unsupported fiber ahead of the cutting edge. On a hand plane, a blade set too deep digs into the grain and fractures the fiber well ahead of the iron. On a power planer, too aggressive a depth setting causes the knives to compress and split fibers instead of slicing them. Feed rate compounds the problem: too fast a feed on a planer or jointer reduces the number of cutting events per unit of board length, effectively making each cut deeper relative to the surface.

Tearout by Tool Type: Causes and Fixes

The cause of tearout differs significantly depending on the tool. A fix that works for saw tearout may be irrelevant for planer tearout. The table below maps the most common cause and the primary fix for each major tool, followed by a more detailed explanation for each.

The table shows that grain direction and blade condition are the two universal causes across all tools. The fixes diverge at the tool-specific level, and the power planer and jointer have a unique additional solution not available to other tools.

Table Saw and Miter Saw Tearout

Saw tearout occurs most on the exit side of the cut, where the blade teeth exit the wood face unsupported. On a table saw, this is typically the bottom face of the board where the teeth exit. On a miter saw, the exit face is the far side of the cut relative to feed direction. The first fix is blade selection: a higher tooth count reduces the chip load per tooth and leaves less material for each tooth to tear. For crosscuts and sheet goods, a 60 to 80 tooth blade is appropriate. A 24-tooth rip blade used for crosscutting is a common cause of severe tearout on both solid wood and plywood.

A zero-clearance throat plate or insert eliminates the gap around the blade that allows exit fibers to deflect downward and fracture. On a miter saw, a zero-clearance fence board or sacrificial base achieves the same result. Scoring the cut line with a marking knife before sawing severs the surface fibers before the blade reaches them, preventing the exit-side fracture entirely.

Router Tearout

Router tearout happens most at corners and exit points where the bit is traveling against the grain relative to the cut direction. In conventional routing, the bit exits each cut pushing fibers outward at the corners and end points of the profile. The most effective prevention technique is to rout the end grain sections first, then the long grain, so any tearout at the corners is cleaned up by the subsequent long-grain pass.

Climb cutting, moving the router in the same direction as the bit rotation, reverses the cutting forces and prevents fiber lift at exit points. It requires a firm grip and a light depth of cut because the router tends to feed itself aggressively. For production work, compression bits apply both upcut and downcut geometry simultaneously, eliminating tearout on both faces of sheet material.

Hand Plane Tearout

Hand plane tearout results almost entirely from planing uphill on the grain slope. The fix is to flip the board and plane from the other end, or to plane at a skewed angle across the grain rather than directly along it. Skewing a bench plane to roughly 30 degrees relative to the direction of travel effectively increases the cutting angle without changing the blade bedding, which is one of the simplest tearout prevention techniques available to hand tool woodworkers.

For figured or interlocked grain where no correct direction exists, reducing the depth of cut to a very fine shaving, setting the chipbreaker as close to the cutting edge as possible (approximately 1/32 inch back), and using a plane with a higher bedding angle (50 degrees or more, compared to the standard 45 degrees) are the primary strategies. These adjustments compress rather than lift the grain ahead of the cut.

Power Planer Tearout

Power planer tearout on a benchtop thickness planer is caused by one of three things: feeding the board against the grain, using dull knives, or taking too deep a cut. Feeding against the grain on a planer is the most common cause of persistent tearout because the cutterhead cannot be reversed. The board must be fed in the correct direction, which requires reading the grain from the edge before feeding.

Reducing depth of cut is the fastest intervention when tearout appears mid-session. Going from 1/16 inch to 1/32 inch per pass often eliminates tearout on moderately difficult grain. For very figured wood, 1/64 inch finish passes significantly reduce tearing even when direction is correct. When neither technique resolves the problem, the cutterhead design is the limiting factor.

Jointer Tearout

Jointer tearout on face jointing is caused by the same grain direction issue as the planer, but the jointer adds an additional variable: knife height variation. If one knife is set slightly higher than the others, it strikes harder on each revolution and produces tearout at a specific interval along the board length. Checking knife height equality after any blade change or sharpening is essential.

On edge jointing, tearout at the exit end of the board is caused by fiber fracture as the knives exit the trailing edge. The fix is to begin the pass, stop with an inch or two of board still on the infeed table, and finish the pass from the outfeed direction to avoid the abrupt exit fracture.

See more: How to Use a Thickness Planer: Setup, Feed Technique and Troubleshooting

How to Read Grain Direction to Prevent Tearout

Reading grain direction accurately before feeding a board into a planer or jointer is the single most effective tearout prevention technique for those tools. It takes less than ten seconds per board and eliminates the most common cause of tearout entirely.

Flatsawn Lumber

Flatsawn boards show cathedral patterns on their face. The grain fibers run roughly parallel to the face but slope toward the pith side of the tree. To read the direction, look at the edge of the board near the center of the cathedral pattern. The fibers slope upward toward one end of the board. Feed that end into the machine last: the cutterhead should be cutting downhill on the slope, not into rising fibers. A simple rule is that the grain lines on the edge should point away from the infeed end, not toward it.

Quartersawn and Riftsawn Lumber

Quartersawn boards show straight, parallel grain lines on their face and fleck patterns on the face of truly quartersawn pieces. The grain direction is more consistent than flatsawn and easier to read. Look at the edge: the grain lines should slope downward toward the infeed end, indicating the cutter is running with the grain. Riftsawn lumber has grain lines at roughly 45 degrees to both face and edge, making it more difficult to read and more prone to tearout from any direction.

Figured and Interlocked Grain

Curly maple, quilted maple, sapele, and other figured hardwood species have grain that reverses direction every inch or two across the face. There is no single correct feed direction. For these boards, reducing depth of cut to the minimum practical setting, using the highest practical RPM, and accepting a light final pass as the best achievable result with straight knives are the standard techniques. For curly maple in particular, many experienced woodworkers consider tearout with a straight knife machine unavoidable above a certain level of figure intensity.

See more: How to Use a Hand Planer: Setup, Feed Technique and 6 Common Applications

How to Fix Tearout After It Has Happened

Prevention is always preferable, but when tearout has already occurred, the appropriate repair depends on its severity. Attempting to sand out severe tearout wastes time and changes dimensions; attempting to fill light tearout adds unnecessary work.

Light Tearout

Light tearout appears as minor roughness or slight fiber lifting across a small area. The fibers are still attached but not lying flat. On painted or opaque-finished surfaces, progressive sanding starting at 80 or 100 grit followed by 120 and 150 grit removes the lifted fibers and blends the area seamlessly. On clear-finished surfaces, wetting the area with water raises and re-sets the lifted fibers before sanding, which produces a cleaner result.

Moderate Tearout

Moderate tearout involves small pits or missing sections of fiber. If the board is not yet at final dimension, taking an additional pass through the planer in the correct grain direction removes enough material to bring the surface below the tearout depth. On assembled pieces, a wood filler or glue-and-sawdust mixture fills the void, though this repair is visible on close inspection under clear finishes. For boards with value as a show surface, replacement is often preferable to repair.

Severe Tearout

Severe tearout removes significant fiber depth and is rarely repairable without visible evidence. On a planed board that has not yet been jointed or dimensioned further, severe tearout is a signal to stop and reassess technique before the next pass. Reversing the board end-for-end, reducing depth of cut, and confirming knife sharpness address the three most likely causes. If tearout persists in both feed directions and at minimum depth, the cutterhead design is the limiting factor.

See more: Wood Planer Blades: 4 Types Compared and When to Upgrade

When Technique Is Not Enough: The Cutterhead Solution

For most softwoods and straight-grained hardwoods, correct grain direction and sharp knives are sufficient to eliminate tearout on a power planer or jointer. For figured, curly, or interlocked grain, those techniques reduce tearout but cannot eliminate it. The root cause in these cases is not technique; it is the cutting geometry of straight knife cutterheads.

Why Straight Knives Cause Tearout on Difficult Grain

A straight knife cutterhead uses two to four knives that span the full width of the board. Each knife strikes the full board width simultaneously, applying a single high-impact cutting event per revolution. On figured grain where fiber direction reverses across the board face, every pass cuts some fibers in the wrong direction somewhere across the width. The long knife has no ability to adapt to local fiber orientation; it applies the same cutting angle to every point across the width.

When a knife strikes rising fibers, it lifts and fractures them rather than shearing. On curly maple, this produces the characteristic skip tearout pattern that appears intermittently across the face, corresponding to where the curl brings fibers to the surface at an unfavorable angle.

How Spiral Carbide Inserts Address the Root Cause

A spiral cutterhead replaces the long knives with rows of small square carbide inserts arranged in a helical pattern. Each insert engages a small section of the board width independently, at a slight skew angle to the feed direction. This skew angle is what changes the fundamental cutting geometry. Instead of striking straight across the fiber at 90 degrees, each insert shears across the fiber at an oblique angle, which requires significantly less force to sever the fiber cleanly and dramatically reduces the tendency to lift and fracture fibers even when grain direction is locally unfavorable.

The result on figured wood is significantly reduced tearout, often a dramatic improvement to the skip tearout pattern that makes curly maple so difficult with straight knives. While no cutterhead can completely eliminate tearout, a spiral cutterhead can greatly reduce it and improve surface finish quality. The same board that requires heavy sanding after straight knife planing often comes off a spiral insert machine needing only light finish sanding.

Real-World Difference on Cherry, Maple, and Walnut

Cherry is notoriously prone to tearout on a straight knife machine because its grain frequently runs in waves that reverse every few inches. Even feeding in the correct overall direction, localized reversals cause tearout. With a spiral cutterhead, the skewed insert geometry adapts to these local reversals more effectively, and the reduced impact force per insert means that even locally rising grain is less likely to fracture catastrophically.

Curly maple with tight figure is the most demanding species in this regard. Woodworkers processing it regularly with straight knife machines accept tearout as an unavoidable part of the workflow and budget significant sanding time. Shops considering a drum sander as an alternative will find that a spiral cutterhead upgrade often delivers comparable surface quality at planer speed. On a spiral insert machine, the same boards require far less post-processing.

Walnut with interlocked grain presents a similar challenge. The interlocked pattern means fibers spiral around the trunk in alternating directions across the width of any given board, making correct feed direction meaningless for portions of the board face.

Sheartak spiral cutterheads are direct-fit replacements for most major planer and jointer brands including DeWalt, Delta, Powermatic, Grizzly, Jet, and Makita. For a full review of current spiral planer options, see Best 13 Inch Spiral Cutterhead Planers. For a shop that regularly processes figured hardwoods, the cutterhead upgrade is the most impactful single change available.

See more: Helical vs Spiral Cutterheads: Why Choose Spiral for Cleaner Cuts

Explore direct-fit spiral cutterheads for your planer and jointer: Sheartak Spiral Cutterheads

Conclusion

Wood tearout has a specific mechanical cause for each tool and a specific fix for each cause. Reading grain direction eliminates the most common cause on planers and jointers. Sharp tooling eliminates tearout from dull edges. For figured or interlocked grain where technique reaches its limit, a spiral carbide insert cutterhead changes the cutting geometry in a way that straight knives cannot. While no cutterhead can completely eliminate tearout, a spiral cutterhead can greatly reduce it and improve surface finish quality, a significant advantage over technique adjustment alone.
