Corrugated Moulder Heads and Corrugated Knives for Shapers and Spindle Moulders
If your shop runs a shaper or spindle moulder with a corrugated knife system, you already know what you need: the right cutter head at the right bore size, paired with knife stock that fits your gibs and handles the profiles your customers require. Sheartak's corrugated moulder heads give professional woodworking shops a reliable, precision-machined platform for running custom and standard moulding profiles across a wide range of machines and applications.
What Is a Corrugated Moulder Head and How Does the System Work

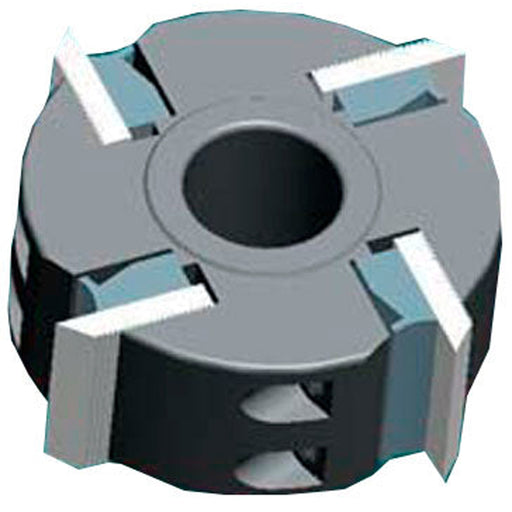

A corrugated moulder head is a cutter body that holds replaceable knife steel using a corrugated back locking system. The knife seats into the head via interlocking corrugations, held firmly in place by a gib or wedge. Unlike fixed-profile cutters, this system lets you run virtually any profile by grinding or sourcing the appropriate corrugated knife, making it the preferred tooling choice for custom millwork, architectural moulding, and historical restoration work. Browse the full range of Sheartak moulder cutterheads to compare corrugated, spiral, and helical options side by side.
Corrugated Head Specifications at a Glance

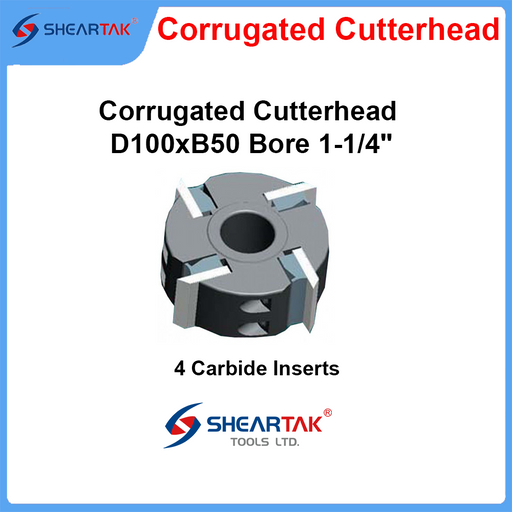

The cutterhead features a body diameter of D100mm, making it compatible with standard shapers and spindle moulders. Its cutting width is available in either B50mm or B60mm, allowing users to select the appropriate option based on the required profile height.
The standard bore size is 1-1/4" (31.75mm), which fits most US shaper spindles. Knife thickness options include 1/4" or 5/16", and must be selected in accordance with the machine’s gib configuration to ensure proper fit and safe operation.
This cutterhead is compatible with both shapers and spindle moulders, with bushings available to accommodate alternative bore sizes. For optimal performance, the hook angle should be confirmed directly with Sheartak based on the specific machine setup and intended application.
* Sheartak corrugated heads at 1-1/4" bore fit the most common US bench shapers directly. Knife thickness must match your machine's gib configuration. If your spindle size differs, contact the team before ordering to confirm compatibility or discuss bushing options.
What You Can Make with Corrugated Knife Tooling
The corrugated knife system covers the full range of profile work encountered in a professional millwork or cabinet shop. Because the knives can be ground to any profile, there is no limitation on what you can produce. This makes corrugated tooling the go-to choice for shops that work across multiple profile styles, do custom matching work, or service historical restoration projects where standard off-the-shelf profiles simply do not exist. For related profile knife resources, visit Sheartak's woodworking tools collection.
- Architectural moulding applications typically include profiles such as crown, cove, base cap, and chair rail, with standard knife sizes ranging from 2" to 6" in profile width, making them suitable for a wide variety of decorative trim work.
- In cabinet and millwork applications, common profile examples include cabinet moulding and back relief profiles. These generally require knife sizes between 3" and 4" in profile width, aligning with standard cabinetry dimensions and detailing.
- For flooring and paneling, profiles such as tongue and groove, V-groove, bead, and cove are commonly used. These applications typically utilize smaller knife sizes, ranging from 1" to 2" in profile width, to accommodate precise panel fitting and alignment.
- Window and door applications involve profiles like window sash, casing, and door stop mouldings. These generally require knife sizes between 2" and 4" in profile width, balancing structural function with aesthetic detailing.
- Custom and historical applications often require match-to-sample solutions, where blank knives are ground to specific designs. In these cases, knife size is not standardized and can be produced in any size based on project requirements.
* From standard architectural moulding runs to custom one-off profiles ground from blank stock, corrugated knife tooling covers the full production range of a professional millwork shop. The same cutterhead can run all these application categories simply by changing knives.
How to Choose the Right Corrugated Cutter Head for Your Setup
Getting the right corrugated cutter head comes down to three variables that must be confirmed before ordering: bore size, knife thickness, and hook angle. A mismatch on any of these means the tooling will either not fit or not perform safely. The guidance below covers each factor clearly so you can identify the right configuration before you browse the product grid above.
Knife Thickness: 1/4" vs 5/16"
Knife thickness is dictated entirely by your cutter head's gib design. The gib is the wedge that locks the knife in position during cutting, and it is machined to a specific knife thickness. If your head uses 5/16" gibs, running 1/4" knife steel will leave the knife unseated and create a dangerous imbalance. Always check your head's gib spec before purchasing knife stock.
If you are unsure, contact Sheartak by email at sales@sheartak.com with your head's make and model for a fast confirmation.
Filling Unused Knife Slots with Blank Steel
This is a safety requirement that is often overlooked: any slot in a corrugated cutter head that is not occupied by a profile knife must be filled with a blank filler knife of the same thickness. Running with empty slots creates a severe imbalance at operating speed, which causes vibration, reduces cut quality, and risks catastrophic head failure. Blank filler knives are available separately. Always fill every slot before mounting the head on the spindle.
Corrugated vs. Spiral Indexable: Which System Fits Your Shop
When evaluating profile flexibility, the corrugated knife system offers virtually unlimited capability, allowing profiles to be ground to exact specifications. In contrast, the spiral indexable system is restricted to the range of available insert profiles, limiting customization.
In terms of custom profile production, the corrugated knife system supports full customization, as knives can be ground from blank or custom stock to meet specific design requirements. The spiral indexable system, however, does not support custom profiles, as it relies on pre-manufactured inserts.
Regarding maintenance, corrugated knife systems require periodic sharpening, which can be performed in-house or outsourced depending on operational setup. Spiral indexable systems eliminate the need for sharpening, as inserts can simply be rotated or replaced when worn.
From a cost perspective, the corrugated knife system typically has a lower initial investment, consisting mainly of the cutterhead and knife blanks. Conversely, spiral indexable systems involve a higher upfront cost due to the carbide insert-based design.
In application suitability, corrugated knife systems are best suited for custom millwork, historical profile replication, and varied short production runs. Spiral indexable systems are more appropriate for standardized profiles and high-volume, long production runs where efficiency and consistency are critical.
* Corrugated tooling gives shops maximum profile flexibility at a lower initial tooling investment. Spiral indexable systems require no sharpening and suit high-volume production on fixed profiles. If your shop splits time between custom and production work, Sheartak offers both systems. Explore the spiral option at the
If your shop primarily runs production-volume standard profiles rather than custom work, the Sheartak spiral moulder head collection may be a better long-term fit. The Sheartak team can help you evaluate both options based on your machine, run lengths, and profile range.
Why Professional Shops Choose Sheartak for Corrugated Tooling
In corrugated knife systems, the precision of the corrugation depth and gib channel machining directly determines how securely the knife seats in the head. A loosely machined head creates movement during cutting, degrades surface finish, and introduces safety risk. Sheartak corrugated moulder heads are precision-machined to tight tolerances, ensuring repeatable and secure knife seating across every slot in the body.
For professional shops that run shaper and moulder tooling daily, that level of manufacturing consistency is not a minor detail; it is the difference between clean production cuts and tooling you cannot trust.
Precision Machining Built for Production Use
Every Sheartak corrugated cutter head is machined from high-quality steel stock and finished to consistent corrugation depth so that knives seat flush and lock without micro-movement under load. The gib channels are cut to precise knife thickness specifications, which means the knife stays correctly positioned from the first pass to the last cut of a long run.
For shops producing architectural moulding or custom millwork at volume, this translates directly to fewer rejects, less sanding, and a more predictable output per knife grind.
Over 16 Years Supplying Professional Woodworking Shops
Sheartak has been supplying cutterheads and moulder tooling to professional woodworking shops across Canada and the US for over 16 years. That depth of experience matters when you are buying corrugated tooling, because the questions that come up before a purchase, bore size confirmation, hook angle selection, knife thickness match, gib compatibility, are exactly the kind of technical details where an experienced supplier saves you time and prevents costly mistakes.
Pre-sales consultation is a standard part of the Sheartak purchase process, not an add-on. The team asks the right questions before an order ships so that what arrives fits and works correctly the first time.
Fast Shipping, Custom Options, and Trade Pricing
Sheartak ships to the US with a standard 30-day return policy on most items. If the specific bore size or cutting width you need is not listed in the collection, the team can manufacture custom configurations with a production lead time of approximately six to seven weeks.
For professional shops and trade buyers purchasing on a regular basis, the Sheartak dealer program offers volume pricing and priority access to new tooling. Contact the team at sales@sheartak.com or call 1-877-417-4327 to discuss trade account options.
Frequently Asked Questions
The questions below address the most common technical concerns that woodworking professionals raise before purchasing corrugated moulder heads or corrugated knives.
Can Sheartak corrugated heads be used on both a shaper and a spindle moulder?
Yes. Corrugated heads with a 1-1/4" bore can be run on both machine types. For moulders with a different spindle diameter, a bushing typically resolves the fit. Contact the Sheartak team to confirm compatibility for your specific machine before ordering.
Does Sheartak offer custom profile grinding for corrugated knives?
Contact the team at sales@sheartak.com with your profile drawing or sample. Sheartak can advise on knife stock options and connect you with grinding resources for custom profile production.
What is the difference between a corrugated knife and a spiral cutterhead?
A corrugated knife system uses loose steel knives, ground to a specific profile, and held in a cutter head body by interlocking corrugations and a gib. The knives must be sharpened periodically to maintain edge quality. A spiral cutterhead uses fixed carbide inserts arranged in a helical pattern. The inserts do not require sharpening; when an edge dulls, you rotate the insert to expose a fresh cutting face. Corrugated systems give unlimited profile flexibility including custom and historical profiles. Spiral systems suit production runs on fixed profiles with minimal maintenance. Both options are available from Sheartak.
How do I know which hook angle is correct for my machine?
Hook angle affects the cutting geometry and the profile shape produced when the knife is ground. Different machines and applications are optimised for different angles. Rather than guessing, contact the Sheartak team with your machine make, model, and the type of profiles you intend to run. They can confirm the appropriate hook angle before you order.
Ready to Order or Need Help with Specifications
Browse the corrugated moulder head collection above to find the right D100 x B50 or D100 x B60 configuration for your machine. If you need to confirm bore size, knife thickness, or hook angle before ordering, reach out to the Sheartak team at sales@sheartak.com or call toll-free at 1-877-417-4327.
