The Importance of Dynamic Balancing

What is Dynamic Balancing and why is it important? You might have heard this term when dealing with moving parts or rotating parts of a machine. In this blog, we will explain in simple terms what it is and why it is so important for spiral and helical cutterhead to be dynamically balanced when being used in planers or jointers.

“A dynamically unbalance part can pose a huge safety risk even leading to fatal accidents.”

What is Dynamic Balancing?

Dynamic Balancing is the process of equalizing the mass distribution of a rotating component such that it spins smoothly and without vibration. A component is considered dynamically balanced when it meets two key criteria: it is static balanced, and couple balanced.

• Static balance occurs when the center of mass intersects with the axis of rotation avoiding the component oscillating in a circular motion around the axis. When a part is statically balanced, its center of mass remains static because any point along the axis of rotation has zero tangential velocity meaning there’s no unwanted motion.

• Couple balance occurs when the principal axis of inertia is collinear with the axis of rotation preventing vertical oscillation. When a part is couple balanced, the centrifugal forces acting along the entire rotating component are equal. As a result, there are no points where the component has a greater tendency to rotate away from its axis, ensuring smooth and stable operation without unwanted vibrations.

The principal axis of inertia is the axis along which a rotating part naturally spins

Why is this important?

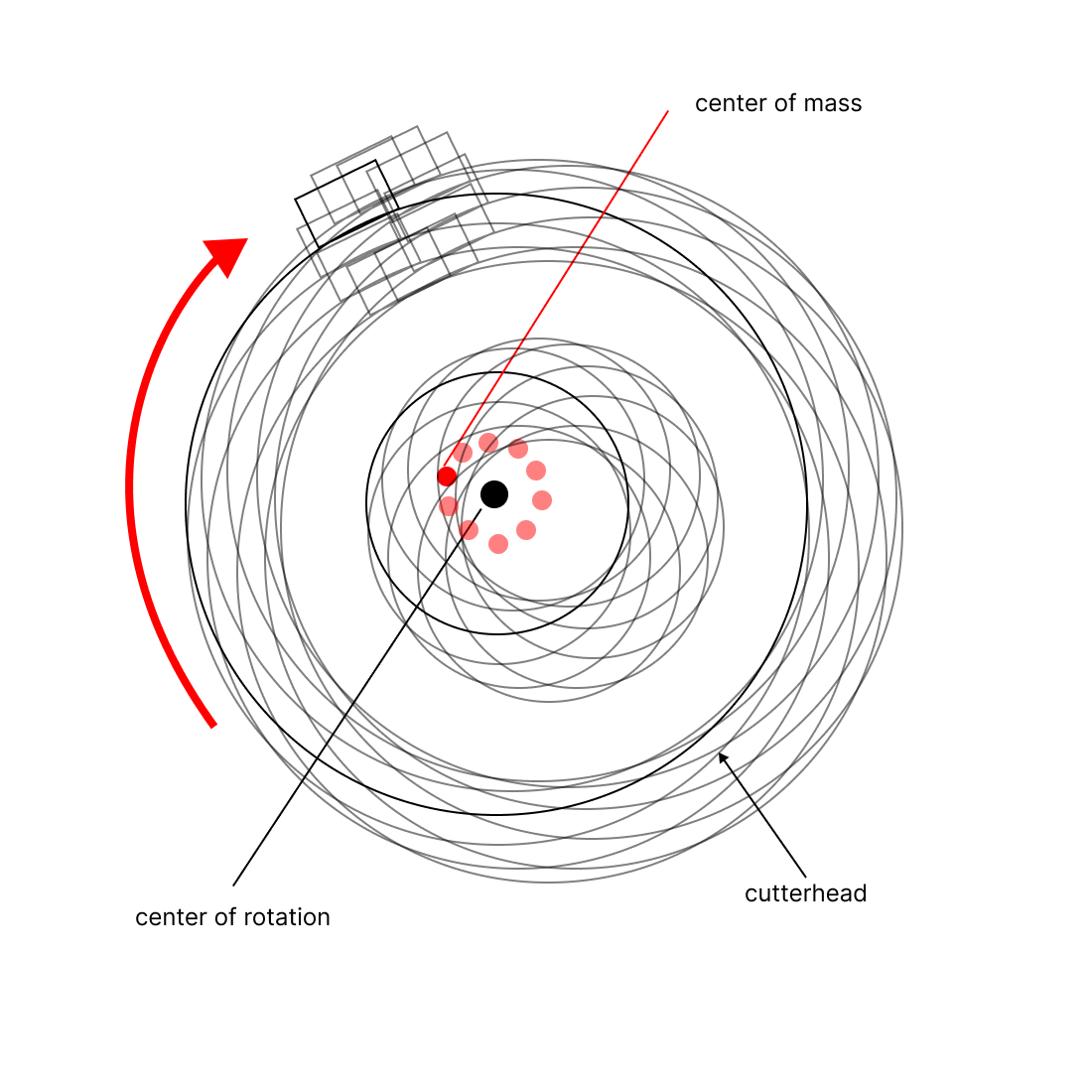

Now, consider what happens if the cutterhead is not balanced and its center of mass is slightly offset from the axis of rotation. As it spins, the center of mass will no longer remain fixed but will instead move in a circular motion. This is extremely dangerous! because it means the cutterhead itself is trying to move in a circle around the rotational axis.

Consequently, the bearings on both sides will have to endure a huge strain to keep the cutterhead fixed in place. This will introduce excessive vibrations which leads to:

• Reduced cutting accuracy

• Increased wear on machine components

• Higher noise levels

• Safety risks, including potential tool failure

This is especially dangerous for machines with powerful motors that drive rotating components at high speeds. An unbalanced cutterhead rotating at high speeds can cause the bearings fail. This can lead to catastrophic damage to the cutterhead and other critical machine parts. Additionally, the sudden loss of control over the rotating component poses serious safety risks to operators and anyone nearby.

Sheartak's spiral cutterhead

That’s why we guarantee that our spiral cutterheads are dynamically balanced to meet industrial-grade standards, enabling them to operate at the maximum speed permitted by your planer or jointer safely and efficiently. Furthermore, the dynamic balancing process is performed with all carbide inserts pre-installed, ensuring optimal performance and precision throughout operation.

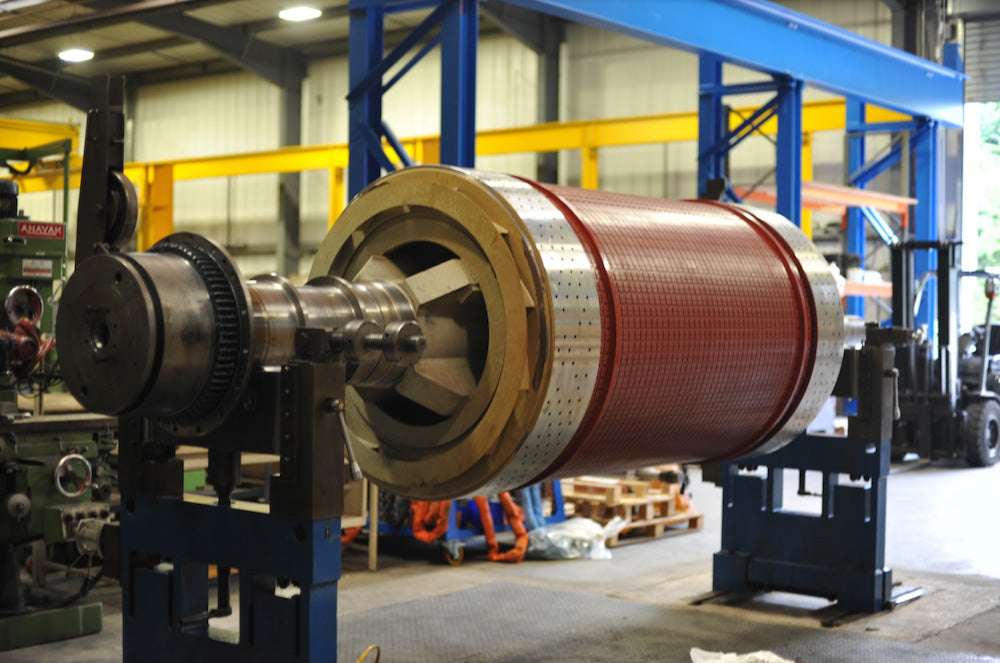

Images of dynamic balancing were taken from:

https://www.youtube.com/watch?v=IBSVTn47cPw

Watch ONEPROD's amazing video to have a better visualization of the types of unbalances.
