Unique Architecture Found in Larger Planers

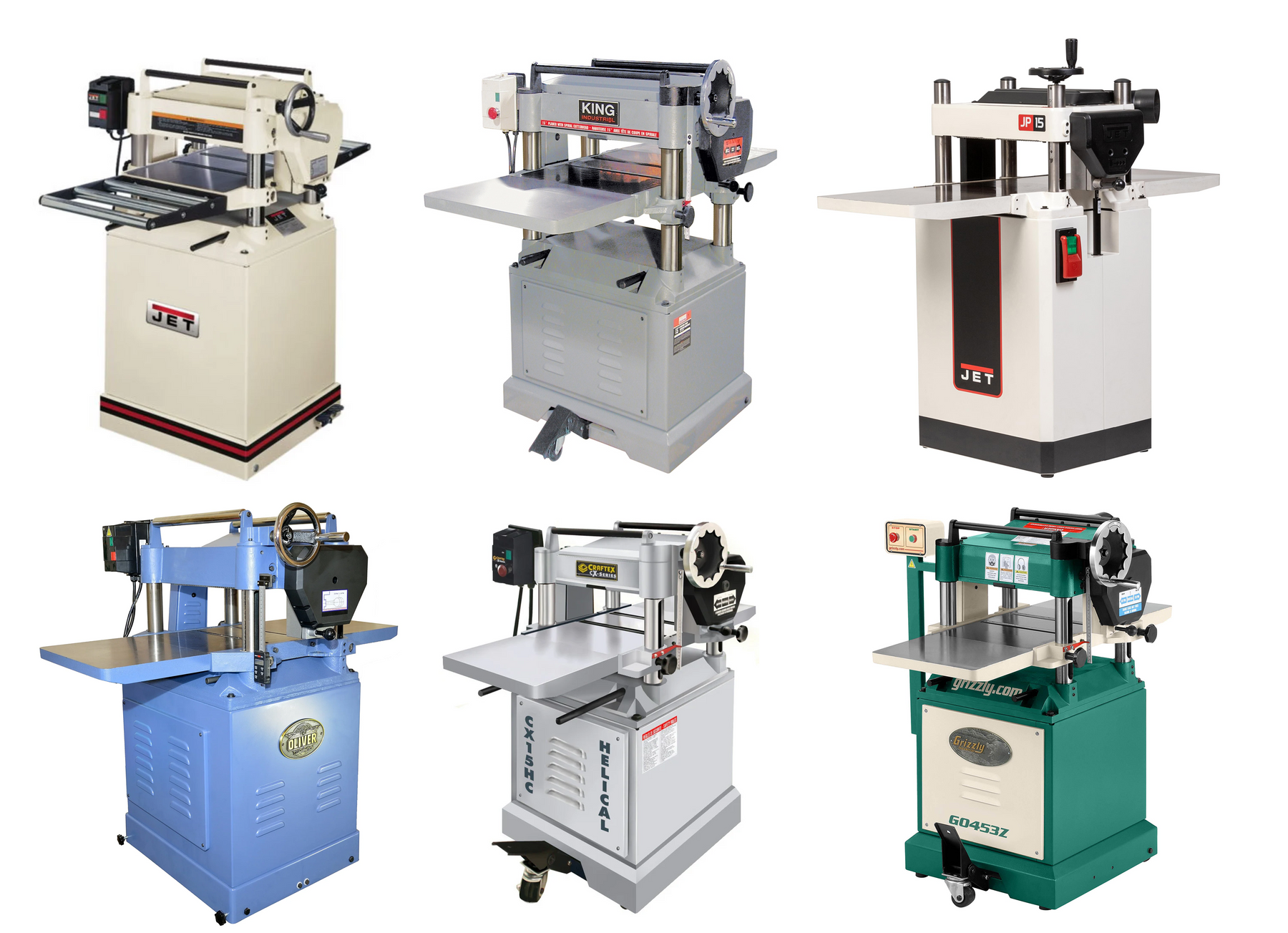

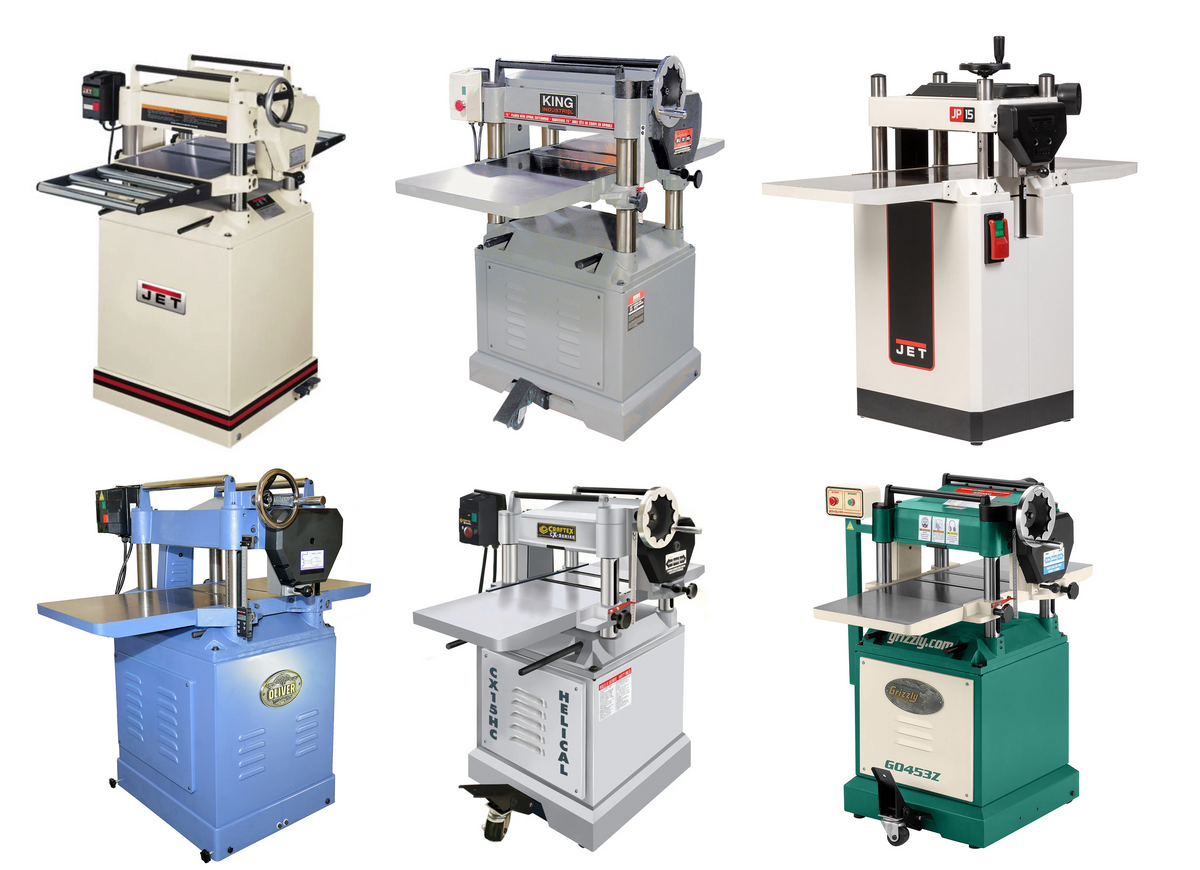

You might have noticed a distinctive architecture in larger planers, such as 15-inch and 20-inch models.

Larger planers require more power and thus need a specialized design to accommodate increased cutting forces, higher speeds, and larger material capacity. While specific details may vary across different brands, the fundamental mechanical structure of this design remains consistent. Let’s look at the key features that define this unique architecture.

Note: Each feature will be illustrated with examples from various brands, including Grizzly Industrial, King Canada, Powermatic, CrafteX, Jet Woodworking, Oliver, and many others.

The Gearbox

Located behind the sprockets, one of the most distinctive parts of these planers is their uniquely shaped gearbox, which also houses the cutterhead.

The cutterhead gear, attached to the shaft, drives the internal gears, controlling the speed of the infeed and outfeed rollers. The variation in gear sizes (gear ratio) ensures the rollers feed wood at the correct speed relative to the cutterhead rotation. Additionally, the gearbox is filled with oil, lubricating the gears as they rotate against each other (you won’t see this in smaller planers).

Sprockets, Chains, and Guards

Another essential component of these designs is the sprocket and chain drive system, covered by a uniquely shaped sprocket cover. This cover protects the chain and sprockets that drive the infeed and outfeed rollers. These sprockets work in tandem with the gearbox to transfer power from the cutterhead, ensuring a consistent and smooth feed rate. Small triangular sprocket guards are featured to provide additional protection and prevent debris from interfering with the chain drive.

Adjusting the cutting depth

At first glance, some may assume that the handwheel on top of the planer adjusts the cutterhead height. However, this is not the case. The handwheel adjusts the height of the table/bed of the machine, raising or lowering the workpiece to control the depth of the cut. Depending on the brand, the handwheel can be positioned vertically or horizontally.

The Motor and Drive System

The motor, located in the bottom base of the machine, powers the entire system but only drives one primary shaft. This shaft is responsible for turning a set of long drive belts (typically three), which transfer power to the cutterhead pulley.







Feed Rate Knob

You might also notice a knob on the gearbox that lets you adjust the feed speed while the machine is running. The gearbox of these planers usually provides two feed rate settings: 20 FPM and 16 FPM. This can be changed by pulling out or pushing in the shift knob.

Switch Assembly and Controls

Just above the pulley cover, you will find the switch assembly. This assembly houses the machine’s on/off switch, safety mechanisms, and sometimes additional controls, making it easy to operate regardless of the brand.

Bed Rollers

To ensure smooth movement of the wood across the cutterhead, these planers come equipped with bed rollers embedded into the table. These rollers reduce friction, making it easier to feed the workpiece without unnecessary resistance.

Unique Dust Hood

A distinct dust hood is found on these planers, specifically designed to capture the large amount of chips and dust produced during operation. These hoods typically have a unique shape, allowing efficient dust extraction when connected to a dust collection system.

Conclusion

There are many more similarities, these were some of the major ones. Now, looking at larger planers, you can immediately determine if they have this unique architecture. From the gearbox-driven feed system to the motorized cutterhead, sprocket-driven rollers, and height-adjustable table, these machines are designed to cut large wood pieces and handle stronger loads. Understanding these components helps users maintain their planers properly and appreciate the engineering behind these powerful woodworking tools.
