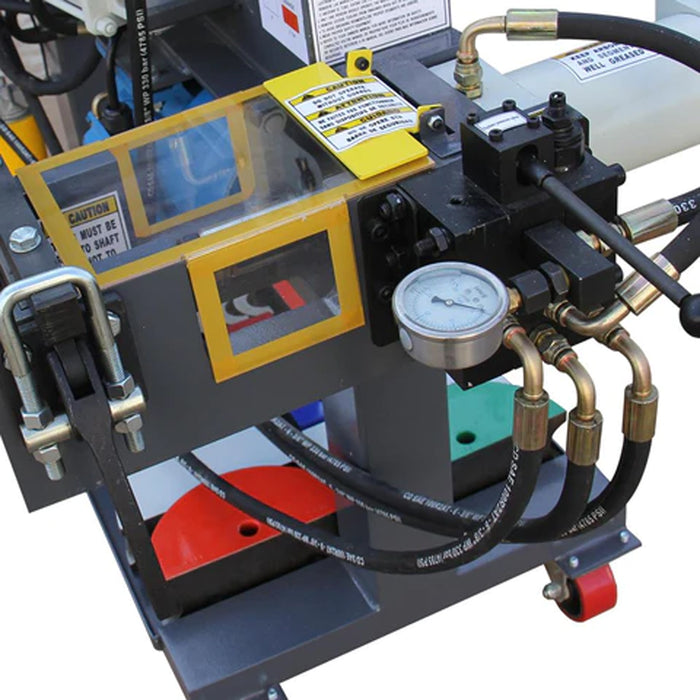

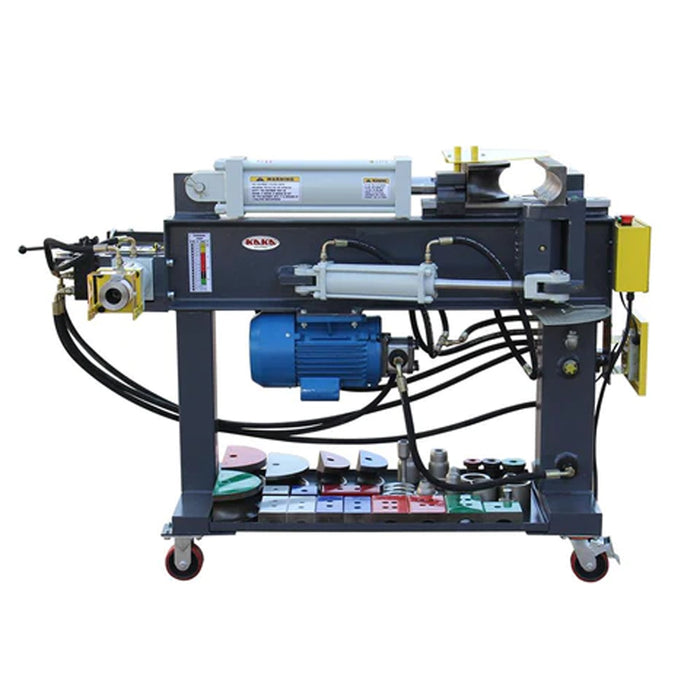

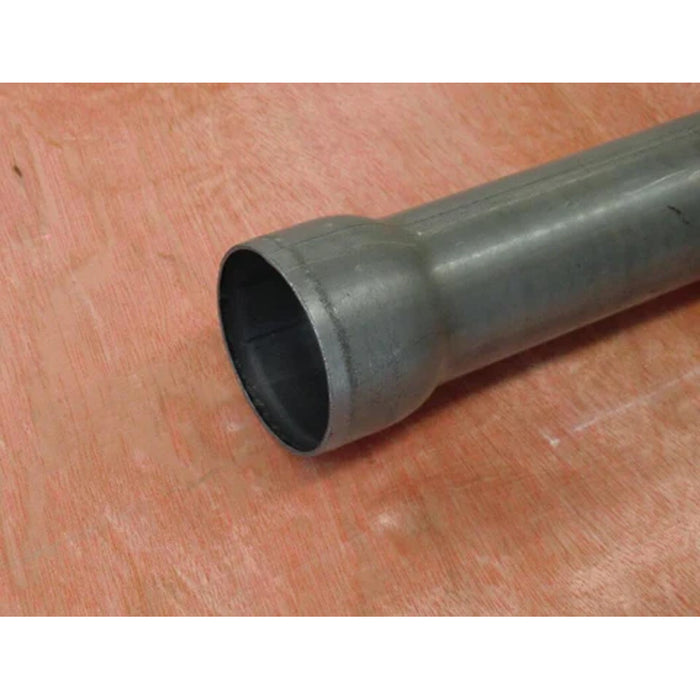

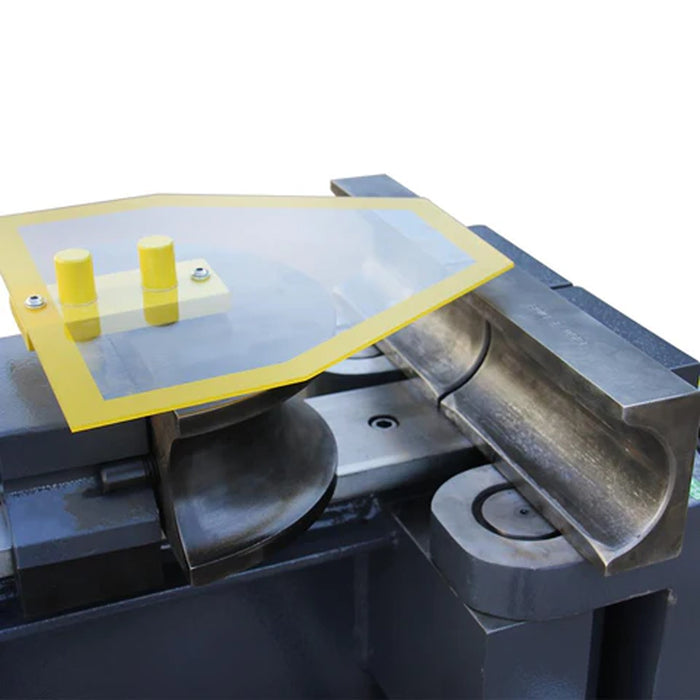

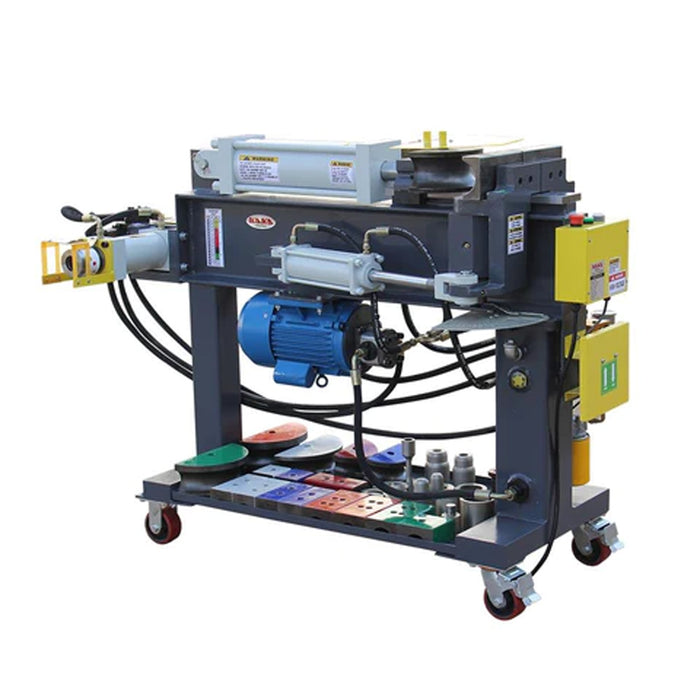

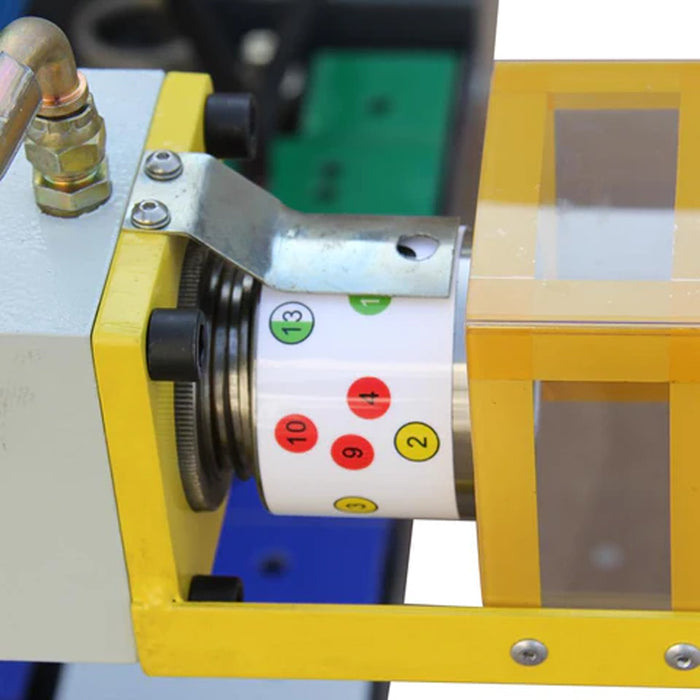

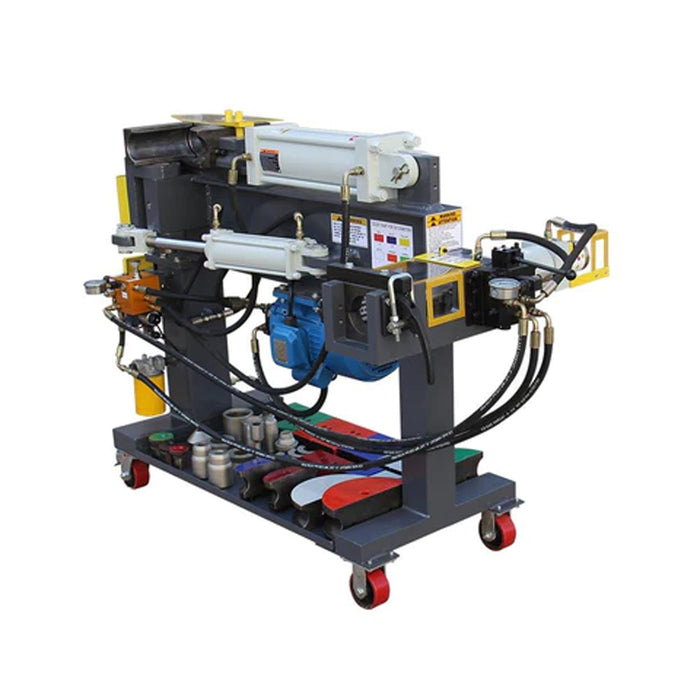

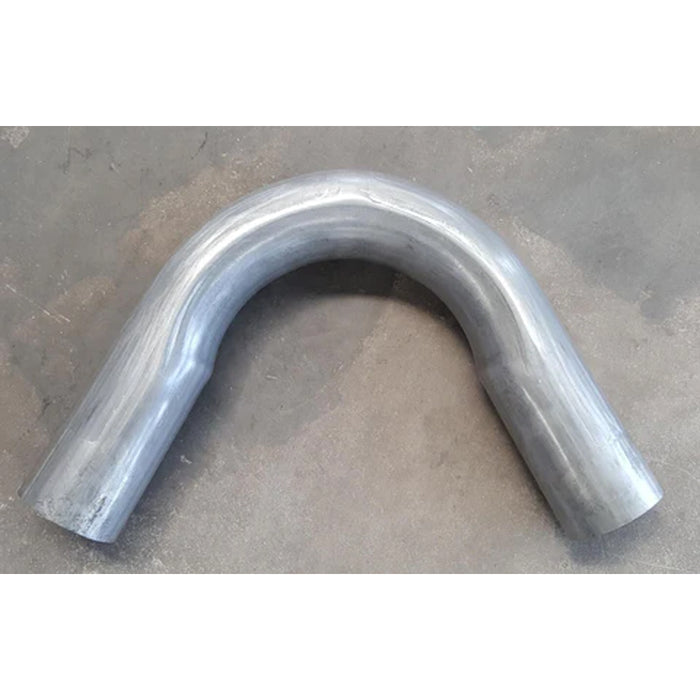

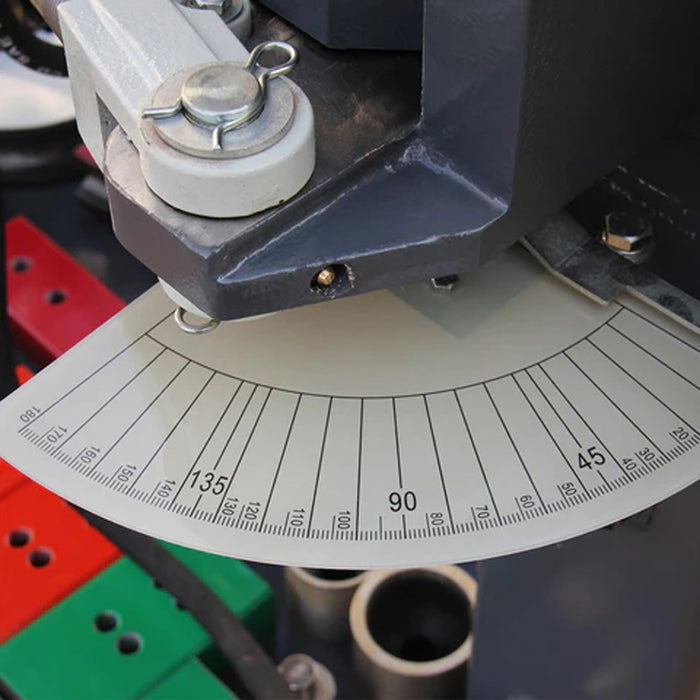

• Bend up to 3" tubing, expand up to 3" tube and perform multiple end-forming applications • Standard tooling package includes the most popular tools • Includes a built-in swager/expander for complete end-finishing • Knee-pad control free the operator's hands deal with workpieces • Manual Depth-of-bend indicator • 58,000 lbs of bending power • Come with a Flat Tool Tray • Front Swivel Casters w/ Brakes
Specifications:
Item Number: 175011
Model: EPB-3
Max. diameter: 3"
Packing dimension (in): 70x33x51
N.W./G.W. (lb): 1276/1430
Tooling Package Includes:
5430 5" Radius Die3"
5412 5” Radius Die 2-1/2”
5414 5” Radius Die 2-1/4”
5200 5” Radius Die 2”
4414 4” Radius Die 2-1/4”
4200 4” Radius Die 2”
3134 3” Radius Die 1-3/4”
3112 3” Radius Die 1-1/2”
1350 Full Back Shoes 3"(2)
4412 Full Back Shoes 2-1/2” (2)
4211 Full Back Shoes 2-1/4” (2)
1200 Full Back Shoes 2”(2)
1134 Full Back Shoes 1-3/4”(2)
1112 Full Back Shoes 1-1/2”(2)
4410 Haft shoe 2-1/2”
4416 Haft shoe 2-1/4”
1045 Half shoe 2”
1040 Half shoe 1-3/4”
1038 Half shoe 1-1/2”
1750 Collet 2-1/2”
1725 Collet 2-1/4”
1720 Collet 2”
1734 Collet 1-3/4”
1712 Collet 1-1/2”
853 Flare Tool 1-1/2”-3”
550 Male Ball Die 1-3/4”: Swage 2”
552 Male Ball Die 2”: Swage 2-1/4”
553 Male Ball Die 2-1/4”: Swage 2-1/2”
554 Male Ball Die 2-1/2”: Swage 2-3/4”
555 Male Ball Die 1-3/4”-2”
556 Male Ball Die 2-3/4”-2-1/2”
112 Swage Die 1-1/2”
134 Swage Die 1-3/4”
508 Arbor 1-3/8”-3-1/2”
498 Arbor Tip 1-1/2”-1-3/4”
499 Arbor Tip 1-3/4”-3-1/2”
474 Segment 1-3/4”-2-1/8”
475 Segment 2-1/8”-2-1/2”
476 Segment 2-1/2”-3”
815 Die Holder (853)
816 Die Holder Pin
855 Die Pins M18
1079 Full Shoe Spacer
1080 Half Shoe Spacer
782 Reducing Die 2-1/2”-2-1/4”
790 Reducing Die 3”-2-3/4”
97050 Die Spring
870 O-Ring Kit
