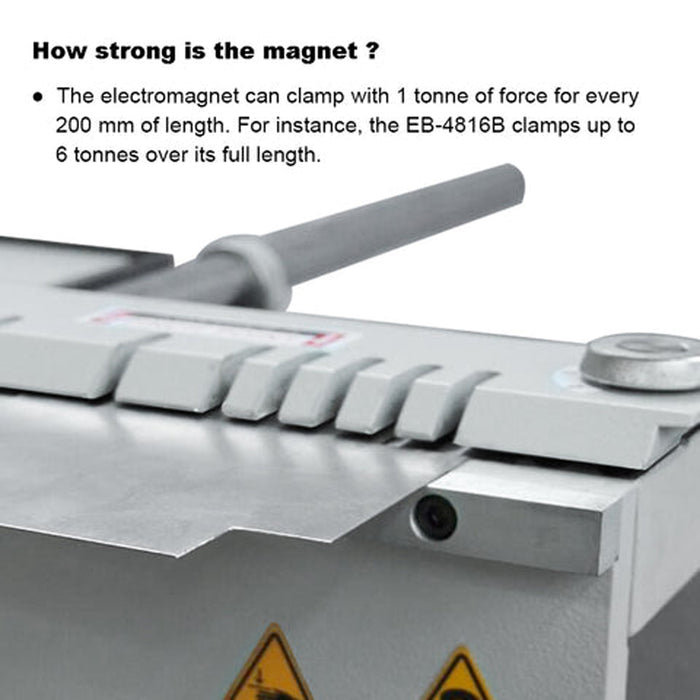

CLAMPING FORCE(with standard full-length clamp bar)
6 Tonne
BENDING CAPACITIES (for standard full-length clamp bar)
MATERIAL (yield/ult stress)
THICKNESS (mm)
LIP WIDTH minimum (mm)
BEND RADIUS Typical (mm)
Mild Steel (250/320 MPa)
1.6
30*
3.5
1.2
15
2.2
1.0
10
1.5
Aluminium Grade 5005 H34 (140/160 MPa)
1.6
30*
1.8
1.2
15
1.2
1.0
10
1.0
Stainless Steel Grades 304, 316 (210/600MPa)
1.0
30*
3.5
0.9
15
3.0
0.8
10
1.8

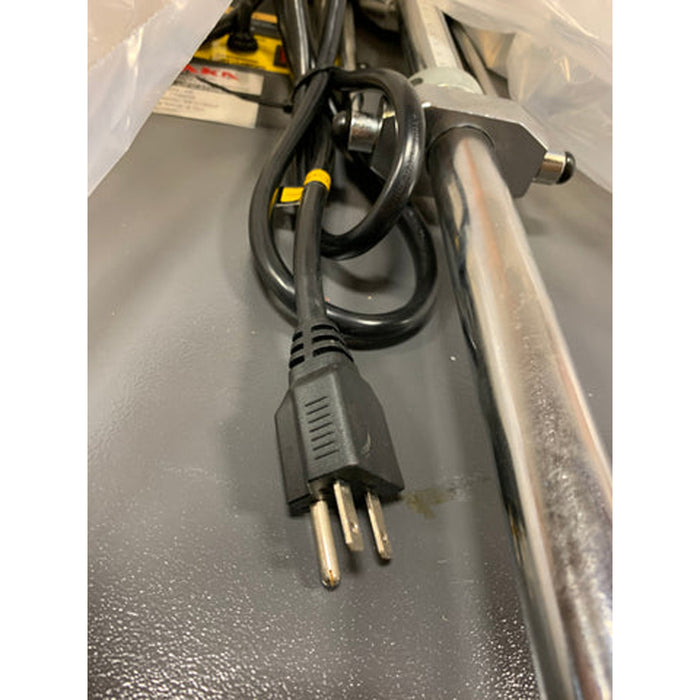

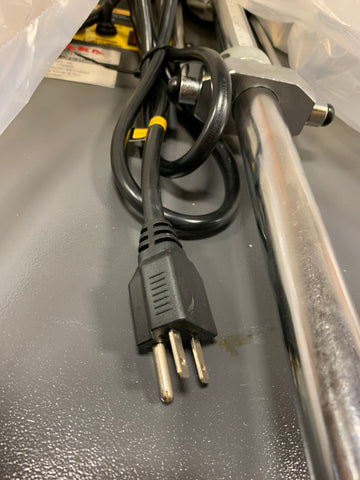

ELECTRICAL Supply: 1 phase, 220/240 V ac Nominal current: 8 Amp Duty cycle: 30% Protection: Thermal cut-out, 70°C

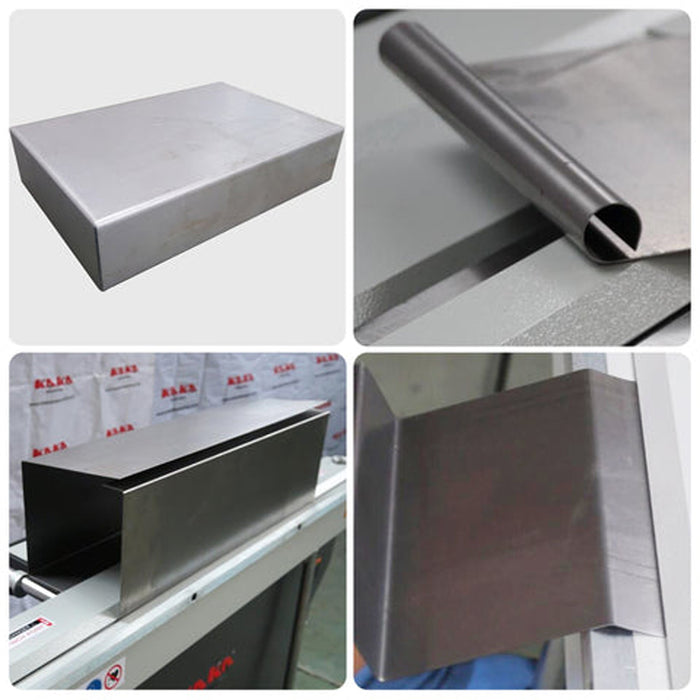

Unlimited box depth

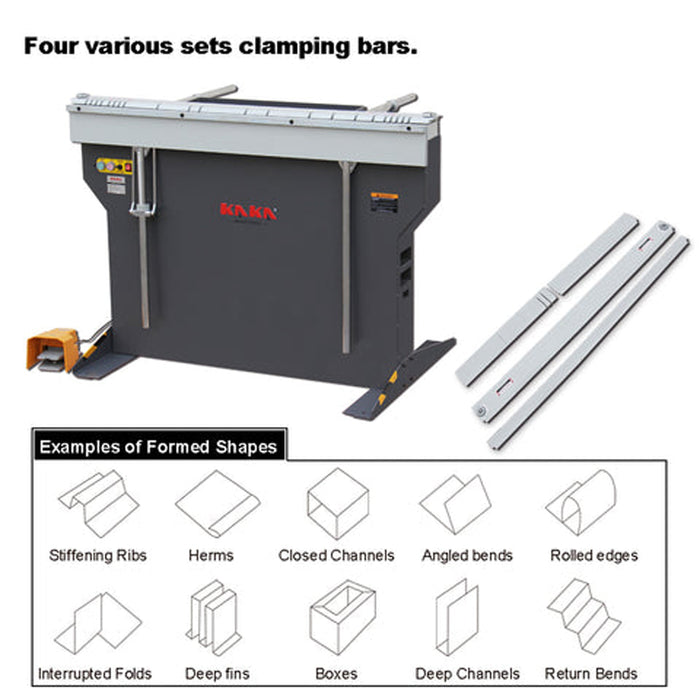

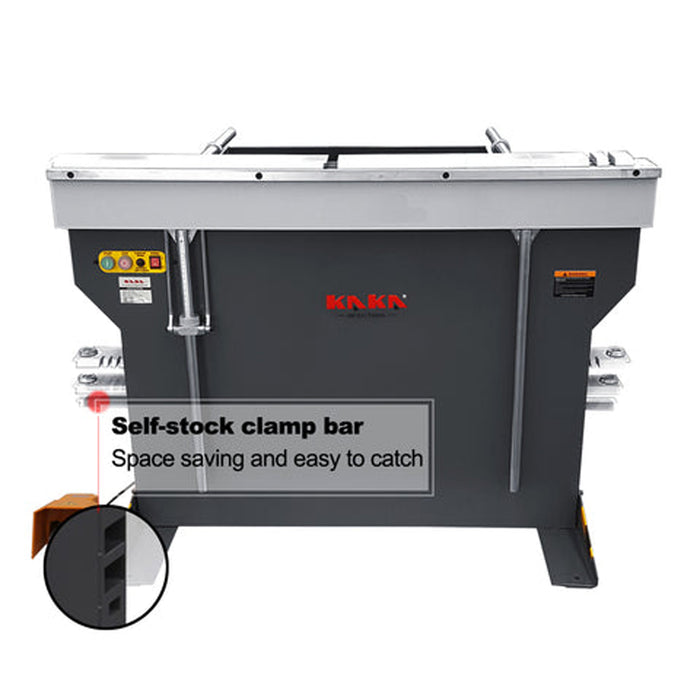

The easy raise clamp bar
includes multiple finger length

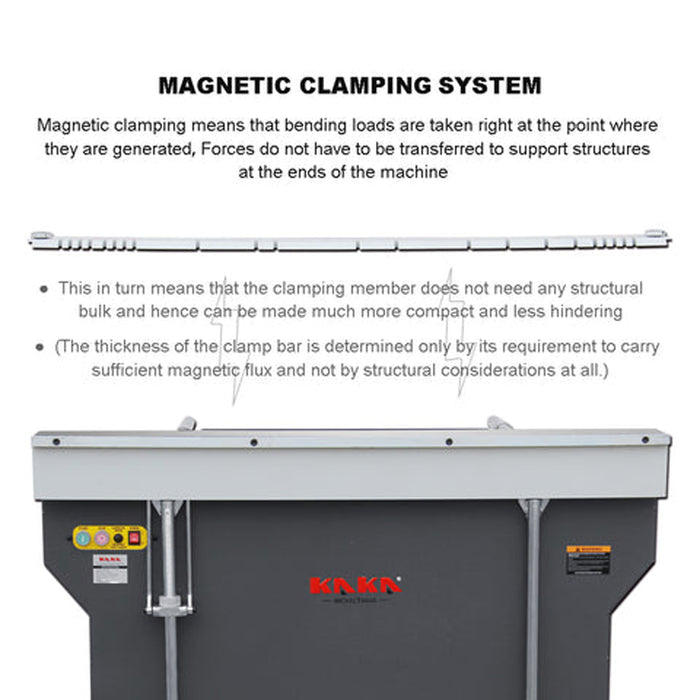

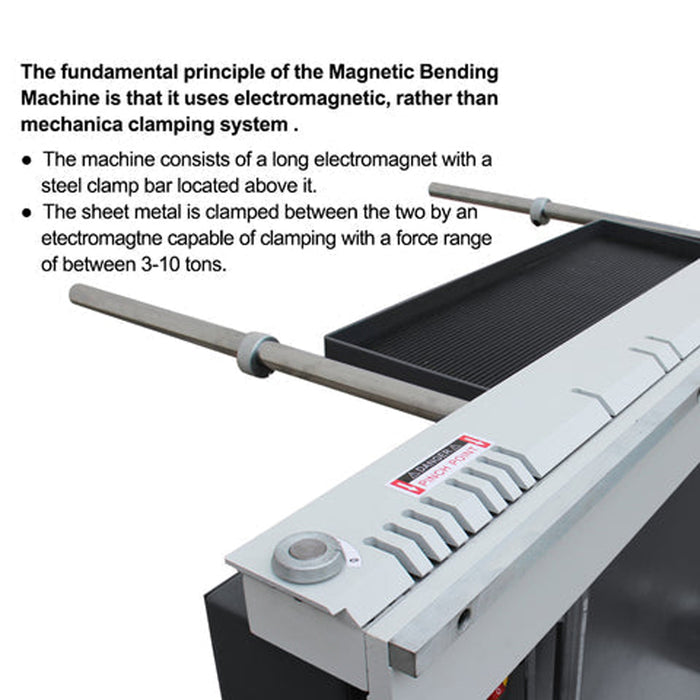

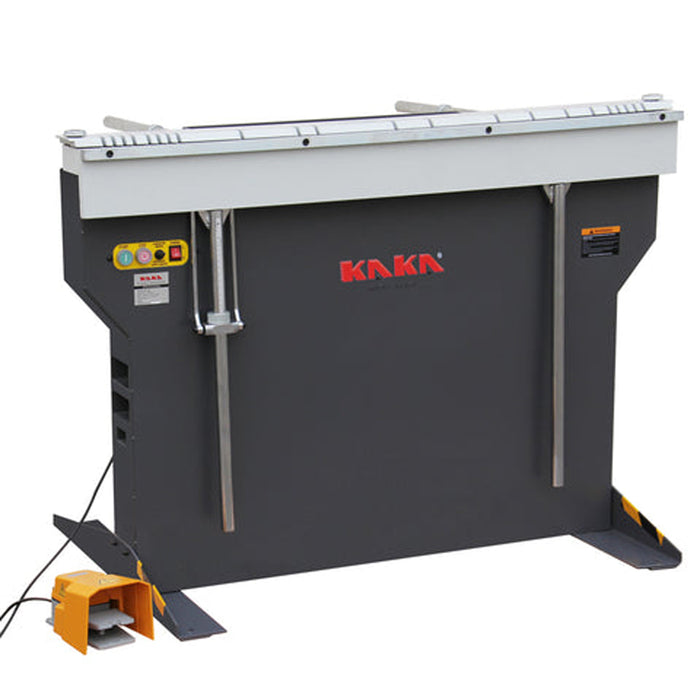

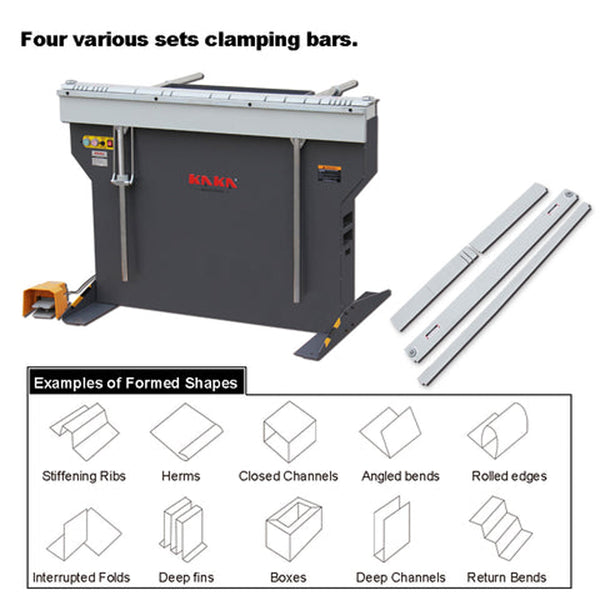

Magnetic Bending Machine with Magnetic clamping brake
Easy raise clamping car
Unlimited box depth
Include multiple finger lengths
The bending stop is included.
Kaka Industrial covers this box brake with a 1-year parts warranty
Specifications
Item No.
173409
Model
EB4816B
Max. Capacity (length x thickness)
1250x1.6mm
48'x16ga
Clamping force
6Ton
Duty cycle
30%
Blade size
5000x41x1.3mm

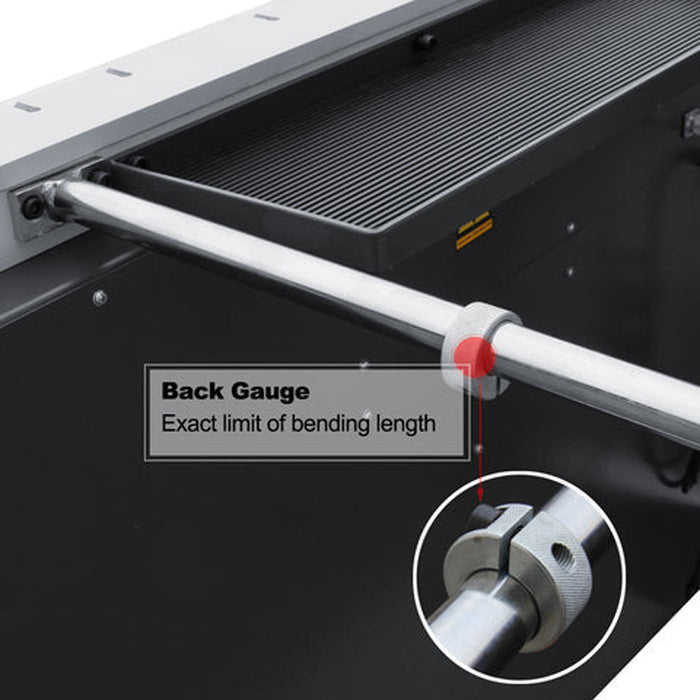

Back gauge
640mm
Footswitch
Standard
Nominal current
6 Amp
Protection
Thermal cut-out 70°C
Bending-edge length (in)
51"
Distance between lifters (in)
49.6"
Packing size (in)
57"x44"x15"
N.W./G.W. (lb)
407/530lbs
