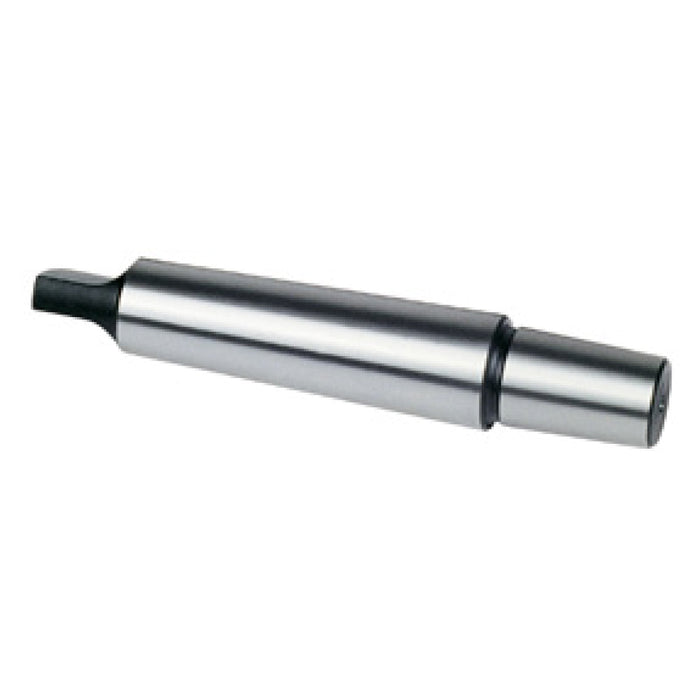

Morse Taper Drill Chuck Arbor - Tang Type

Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
SKU 436-0776
Sold out
Original price $60.00 - Original price $60.00
Original price
$60.00
$60.00 - $60.00
Current price $60.00
Size: MT0-B6
Request a quote
Cancellation policy

Cancel for any reason at any time until your order shipped. Please be aware that banks charge for each payment transaction, so we will deduct these fees from the refunded amount. Once your order has shipped, you may return your order. For details, please review our Returns and Cancellations policies. Special order items may not be eligible for cancellation.

Return Policy

Most items can be returned within 30 days of receipt for a refund of the product cost less return shipping. Shipping, duties, and taxes are not refundable. For details, please review our Returns and Cancellations policies.

International Shipping

The product price and shipping and handling cost do not include import duties, taxes, or brokerage fees. As the transportation fee for your order is the only fee we charge, it is the buyer's responsibility to pay for these charges. We recommend that you contact your country's customs office or visit their website to determine if there will be any additional costs.

The Harmonized Tariff Schedule (HS code) for spiral cutterheads and other woodworking tools is 8466.92.50.10.

Features:

  • High-quality Drill Chuck Arbor capable of holding cutting tools in place.
  • Durable design.
  • Tang-type connection.

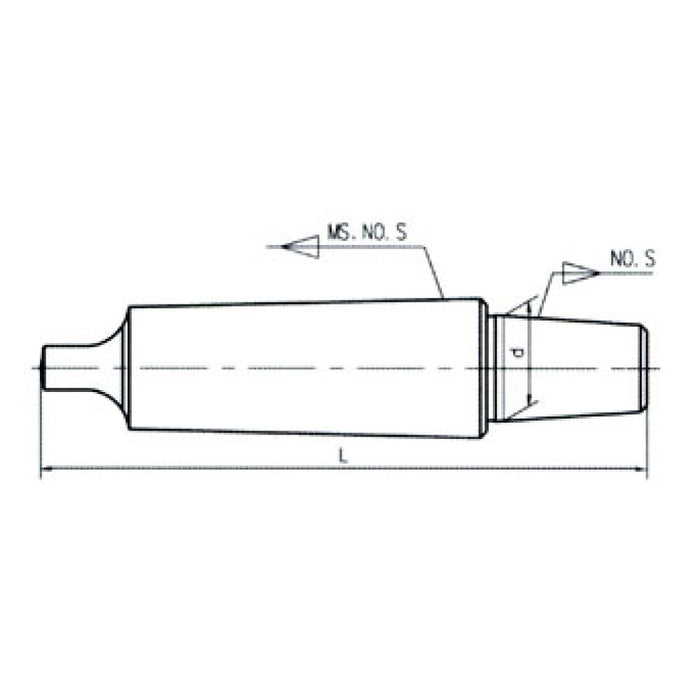

Order No. Size d (mm) L (mm) Order No. Size d (mm) L (mm)
436-0776 MT0-B6 6.35 75 436-0817 MT3-B16 15.733 131
436-0777 MT0-B10 10.094 80 436-0818 MT3-B18 17.78 139
436-0778 MT0-B12 12.065 84 436-0819 MT3-B22 21.793 147
436-0779 MT0-B16 15.733 91 436-0820 MT3-B24 23.825 157
436-0780 MT0-B18 17.78 99 436-0821 MT3-J0 6.35 113
436-0781 MT0-B22 21.793 108 436-0822 MT3-J1 9.754 118
436-0782 MT0-B24 23.825 118 436-0823 MT3-J2 14.199 124
436-0783 MT0-J0 6.35 73 436-0824 MT3-J3 20.599 133
436-0784 MT0-J3 20.599 93 436-0825 MT3-J4 28.55 144
436-0785 MT0-J33 15.85 88 436-0826 MT3-J5 35.89 149
436-0786 MT1-B10 10.094 86 436-0827 MT3-J6 17.17 127
436-0787 MT1-B12 12.065 90 436-0828 MT3-J33 15.85 127
436-0788 MT1-B16 15.733 97 436-0829 MT4-B10 10.094 145
436-0789 MT1-B18 17.78 105 436-0830 MT4-B12 12.065 149
436-0790 MT1-B22 21.793 114 436-0831 MT4-B16 15.733 156
436-0791 MT1-B24 23.825 124 436-0832 MT4-B18 17.78 164
436-0792 MT1-J0 6.35 79 436-0833 MT4-B22 21.793 172
436-0793 MT1-J1 9.754 85 436-0834 MT4-B24 23.825 182
436-0794 MT1-J2 14.199 90 436-0835 MT4-J0 6.35 138
436-0795 MT1-J3 20.599 99 436-0836 MT4-J1 9.754 143
436-0796 MT1-J4 28.55 110 436-0837 MT4-J2 14.199 149
436-0797 MT1-J5 35.89 116 436-0838 MT4-J3 20.599 158
436-0798 MT1-J6 17.17 94 436-0839 MT4-J4 28.55 169
436-0799 MT1J33 15.85 94 436-0840 MT4-J5 35.89 174
436-0800 MT2-B10 10.094 101 436-0841 MT4-J6 17.17 152
436-0801 MT2-B12 12.065 105 436-0842 MT4-J33 15.85 152
436-0802 MT2-B16 15.733 112 436-0843 MT5-B10 10.094 177
436-0803 MT2-B18 17.78 120 436-0844 MT5-B12 12.065 181
436-0804 MT2-B22 21.793 128 436-0845 MT5-B16 15.733 188
436-0805 MT2-B24 23.825 138 436-0846 MT5-B18 17.78 196
436-0806 MT2-B18S 17.431 113 436-0847 MT5-B22 21.793 204
436-0807 MT2-J0 6.35 94 436-0848 MT5-B24 23.825 214
436-0808 MT2-J1 9.754 100 436-0849 MT5-J0 6.35 170
436-0809 MT2-J2 14.199 105 436-0850 MT5-J1 9.754 175
436-0810 MT2-J3 20.599 114 436-0851 MT5-J2 14.199 181
436-0811 MT2-J4 28.55 125 436-0852 MT5-J3 20.599 190
436-0812 MT2-J5 35.89 130 436-0853 MT5-J4 28.55 201
436-0813 MT2-J6 17.17 108 436-0854 MT5-J5 35.89 206
436-0814 MT2-J33 15.85 108 436-0855 MT5-J6 17.17 184
436-0815 MT3-B10 10.094 120 436-0856 MT5-J33 15.85 184
436-0816 MT3-B12 12.065 124 436-0857 MT6-J6 17.17 246
