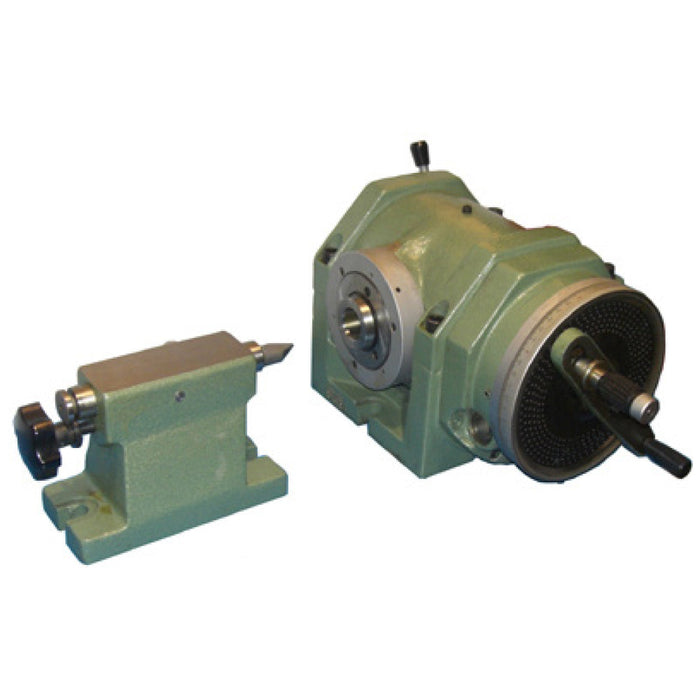

Premium Semi-Universal Dividing Heads

Premium Semi-Universal Dividing Heads

by Sheartak
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
SKU 410-0411
Sold out
$1,200.00 - $1,200.00
$1,200.00
$1,200.00 - $1,200.00
$1,200.00
Center Height: 80mm
Request a quote
Cancellation policy

Cancel for any reason at any time until your order shipped. Please be aware that banks charge for each payment transaction, so we will deduct these fees from the refunded amount. Once your order has shipped, you may return your order. For details, please review our Returns and Cancellations policies. Special order items may not be eligible for cancellation.

Return Policy

Most items can be returned within 30 days of receipt for a refund of the product cost less return shipping. Shipping, duties, and taxes are not refundable. For details, please review our Returns and Cancellations policies.

International Shipping

The product price and shipping and handling cost do not include import duties, taxes, or brokerage fees. As the transportation fee for your order is the only fee we charge, it is the buyer's responsibility to pay for these charges. We recommend that you contact your country's customs office or visit their website to determine if there will be any additional costs.

The Harmonized Tariff Schedule (HS code) for spiral cutterheads and other woodworking tools is 8466.92.50.10.

California Proposition 65

Features:

  • The semi-universal dividing head is one of the most important accessories for milling machines.
  • They rotate the workpieces held between centers or on a lathe chuck to any angle as desired and the circumference of a workpiece can be divided into any divisions of equal parts.
  • Workpieces can be mounted on the face plate for multi-position cutting.
  • 410-0411 order model is set on the left side, while the others are set on the right side.

Standard Accessories:

  • Tailstock.
  • Jack.
  • Solid center.
  • Carrier.
  • Dividing plate.
  • Adaptor for lathe chuck.
  • 3-jaw chuck.
  • Optional face plate.
Order No.  410-0411 410-0412 410-0413 410-0414
Center height (mm) 80 100 125 160
Dia. of spindle nose taper (mm) 36.541 41.275 53.975 53.975
Width of locating key (mm) 14 14 18 18
Upward swivel angle of spindle from its Hor. Position  0~6 ° 0~5° 0~5° 0~5°
Downward swivel angle of spindle from its Hor. position e) 0~90° 0~95° 0~95° 0~95°
Worm gear ratio 1:40 1:40 1:40 1:40
Taper of spindle bore 3MT 3MT 4MT 4MT
Min. readout of vernier 10” 10” 10” 10”
Spindle Rotataion Angle per revolution of dividing handle 9 ° 9 ° 9 ° 9 °
Index error for one compete revolution of dividing handle 60” +/-45” +/-45” +/-45”
Accumulative Error at 1/4” any 1/4” periphery of spindle +/-70” +/-1 minute +/-1 minute +/-1 minute
Max. bearing (Kg) 80 100 130 130
Holes of Index Plate Side I 24,25,28,30,34,37,38,39,41,42,43 24,25,28,30,34,37,38,39,41,42,43 24,25,28,30,34,37,38,39,41,42,43 24,25,28,30,34,37,38,39,41,42,43
Holes of Index Plate Side II 46,47,49,51,53,54,57,58,59,62,66 46,47,49,51,53,54,57,58,59,62,66 46,47,49,51,53,54,57,58,59,62,66 46,47,49,51,53,54,57,58,59,62,66
Net weight (Kg) 26 57 83.5 100
Gross weight (Kg) 32 69 96 114
Case dimensions (mm) 480x360x219 610x459x255 536x460x310 710x505x342
