SKU 115-0101
Sold out
Original price $200.00 - Original price $200.00
Original price
$200.00
$200.00 - $200.00
Current price $200.00
Number: 122
Grade: 0
Request a quote
Cancellation policy

Cancel for any reason at any time until your order shipped. Please be aware that banks charge for each payment transaction, so we will deduct these fees from the refunded amount. Once your order has shipped, you may return your order. For details, please review our Returns and Cancellations policies. Special order items may not be eligible for cancellation.

Return Policy

Most items can be returned within 30 days of receipt for a refund of the product cost less return shipping. Shipping, duties, and taxes are not refundable. For details, please review our Returns and Cancellations policies.

International Shipping

The product price and shipping and handling cost do not include import duties, taxes, or brokerage fees. As the transportation fee for your order is the only fee we charge, it is the buyer's responsibility to pay for these charges. We recommend that you contact your country's customs office or visit their website to determine if there will be any additional costs.

The Harmonized Tariff Schedule (HS code) for spiral cutterheads and other woodworking tools is 8466.92.50.10.

Features:

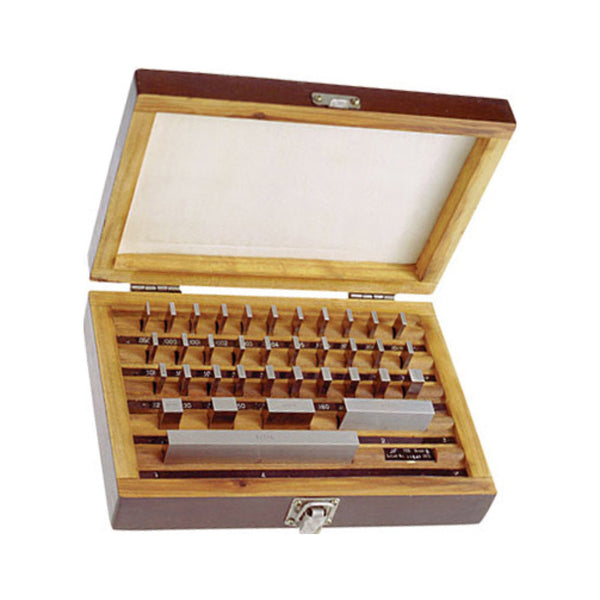

  • Blocks and block sets are incredibly important accessories used to prepare measuring tools and calibrate objects with high accuracy.
  • Durable and high-quality design.

Remarks:

  1. Single-piece gauge blocks can be supplied in large quantities.
  2. Ceramic gauge blocks are also available to supply.
Steel Carbide Number Grade Steel Carbide Number Grade
115-0101 115-0173 122 0 115-0137 115-0209 32 0
115-0102 115-0174 1 115-0138 115-0210 1
115-0103 115-0175 2 115-0139 115-0211 2
115-0104 115-0176 112 0 115-0140 115-0212 18 0
115-0105 115-0177 1 115-0141 115-0213 1
115-0106 115-0178 2 115-0142 115-0214 2
115-0107 115-0179 103 0 115-0143 115-0215 10-1mm 0
115-0108 115-0180 1 115-0144 115-0216 1
115-0109 115-0181 2 115-0145 115-0217 2
115-0110 115-0182 91 0 115-0146 115-0218 10+1mm 0
115-0111 115-0183 1 115-0147 115-0219 1
115-0112 115-0184 2 115-0148 115-0220 2
115-0113 115-0185 88 0 115-0149 115-0221 10-2mm 0
115-0114 115-0186 1 115-0150 115-0222 1
115-0115 115-0187 2 115-0151 115-0223 2
115-0116 115-0188 87 0 115-0152 115-0224 10+2mm 0
115-0117 115-0189 1 115-0153 115-0225 1
115-0118 115-0190 2 115-0154 115-0226 2
115-0119 115-0191 83 0 115-0155 115-0227 10 (25mm) 0
115-0120 115-0192 1 115-0156 115-0228 1
115-0121 115-0193 2 115-0157 115-0229 2
115-0122 115-0194 76 0 115-0158 115-0230 10 (50mm) 0
115-0123 115-0195 1 115-0159 115-0231 1
115-0124 115-0196 2 115-0160 115-0232 2
115-0125 115-0197 47 (DIN) 0 115-0161 115-0233 2 0
115-0126 115-0198 1 115-0162 115-0234 1
115-0127 115-0199 2 115-0163 115-0235 2
115-0128 115-0200 47 (JIS) 0 115-0164 115-0236 3 0
115-0129 115-0201 1 115-0165 115-0237 1
115-0130 115-0202 2 115-0166 115-0238 2
115-0131 115-0203 46 0 115-0167 115-0239 4 0
115-0132 115-0204 1 115-0168 115-0240 1
115-0133 115-0205 2 115-0169 115-0241 2
115-0134 115-0206 38 0 115-0170 115-0242 5 0
115-0135 115-0207 1 115-0171 115-0243 1
115-0136 115-0208 2 115-0172 115-0244 2

Metric Gauge Block Set Sizes

Number Length (mm) Increment Pieces Standards Number Length (mm) Increment Pieces
122 0.5 - 1 GB/T6093 47 1.005 - 1
1 - 1 1.01-1.09 0.01 9
1 - 1 1.10-1.19 0.1 10
1.001-1.009 0.001 9 1.2-1.9 0.1 8
1.01-1.49 0.01 49 44935 1 9
1.5-1.9 0.1 5 10-100 10 10
44982 0.5 47 47 1.005 - 1
30-70 10 5 1.01-1.09 0.01 9
75 - 1 1.1-1.9 0.1 9
80-100 10 3 44950 1 24
112 1 - 1 JIS B7506
DIN861
25-100 25 4
1.001-1.009 0.001 9 46 1.001-1.009 0.001 9
1.01-1.49 0.01 49 1.01-1.09 0.01 9
0.5-24.5 0.5 49 1.1-1.9 0.1 9
25-100 25 4 44935 1 9
103 1.005 - 1 JIS B7506
DIN861
10-100 10 10
1.01-1.49 0.01 49 38 1.005 - 1
0.5-24.5 0.5 49 1.01-1.09 0.01 9
25-100 25 4 1.1-1.9 0.1 9
91 0.5 - 1 GB/T6093 44935 1 9
1 - 1 10-100 10 10
1.001-1.009 0.001 9 32 1.005 - 1
1.01-1.49 0.01 49 1.01-1.09 0.01 9
1.5-1.9 0.1 5 1.1-1.9 0.1 9
2-9.5 0.5 16 44935 1 9
10-100 10 10 45229 10 3
88 1 - 1 DIN861 50 - 1
1.001-1.009 0.001 9 18 0.991-0.999
1.001-1.009
0.001 18
1.01-1.49 0.01 49
0.5-9.5 0.5 19 10-(1mm) 0.991,0.992-1 0.001 10
10-100 10 10
87 1.001-1.009 0.001 9 JIS B7506
DIN861
10+(1mm) 1,1.001-1.009 0.001 10
1.01-1.49 0.01 49 10-(2mm) 1.991-2 0.001 10
0.5-9.5 0.5 19 10+(2mm) 2-2.009 0.01 10
10-100 10 10 10 2.5, 5.1, 7.7,
10.3, 12.9,15,
17.6, 20.2,
22.8, 25
- 10
83 0.5 - 1 GB/T6093
1 - 1
1.005 - 1
1.01-1.49 0.01 49 10 27.5,30.1,
32.7,35.3,37.9,
40,42.6,
45.2,47.8,50
- 10
1.5-1.9 0.1 5
2.0-9.5 0.5 16
10-100 10 10 2 41.3, 131.4 - 2
76 1.005 0 1 JIS B7506
DIN861
3 41.3,  131.4,  243.5  - 3
1.01-1.49 0.01 49
0.5-9.5 0.5 19 4 41.3,  131.4,
243.5,  281.2
- 4
18537 10 5
75100 25 2 5 41.3,  131.4,
243.5,  281.2,481.1
- 5

Do I need to replace the original bearings?
If the bearings in your machine are in good condition, they can be reused by carefully removing them with a bearing or pulley puller. However, if the bearings are tightly pressed onto the shaft, removal may cause damage. To minimize this risk, we recommend replacing old bearings with our greased and sealed bearings, designed for long-lasting performance. For a smooth upgrade, we suggest adding the bearings to your shopping cart before completing your purchase.
We provide premium bearings from NSK, SKF, NTN, FAG, Timken. They are renowned for their high quality and performance, designed to provide durability and reliability in various applications
If you add the bearings to your order, we will preinstall them for you when premounting is possible, saving you the hassle of doing it yourself.

Do I need to to Add a Few Boxes of Carbide Inserts
We provide 5 carbide inserts and 5 screws as spare parts. However, many of our customers choose to purchase additional boxes, as the shipping costs for separate purchases can make it less economical.

Do I need a Torque Wrench?
To securely lock the carbide inserts, we recommend applying a torque of 48 to 52 Pound-Inches (or 5.42 to 5.88 Newton-Meters). (Note: 1 Newton-Meter is equal to 8.851 Pound-Inches, and 1 Pound-Inch is approximately 0.113 Newton-Meters.) It is crucial not to apply excessive torque, as this could cause the carbide inserts to crack or explode. On the other hand, using too little torque may result in the inserts not being properly secured, which could lead to cracks, shattering, or uneven height on the cutter block, causing ridges or lines on the board.
If one person is responsible for maintaining the machine, they can typically apply the same torque consistently without a torque wrench. However, when multiple people are involved in machine maintenance, ensuring uniform torque application can be challenging. For consistency and peace of mind, we recommend using a torque wrench.

What kind of steel the cutter block is made of?
The cutter block is constructed using GB/T 40Cr, a structural alloy steel of the same caliber as ASTM grade 5140, AISI 5140, SAE 5140, DIN 41Cr4, BS 41Cr4, JIS SCr440, and EN 41Cr4.The primary components of this steel are as follows: carbon (C) at a range of 0.37-0.44%, silicon (Si) between 0.17-0.37%, manganese (Mn) within 0.50-0.80%, and chromium (Cr) from 0.80-1.10%.
In terms of physical properties, this steel exhibits a tensile strength range of 115-234σb/MPa, a yield strength of 2σ 0.2 ≥/MPa, and an elongation capacity of 65 δ5≥ (%). It also has a HBS range of 123-321 and a HRC rating of 30.
This alloy steel is frequently utilized in low to moderately stressed components for machines, engines, and vehicles.
